Information Center Telltale Assembly Replacement

WARNING: This page is about a different car, the 2010 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

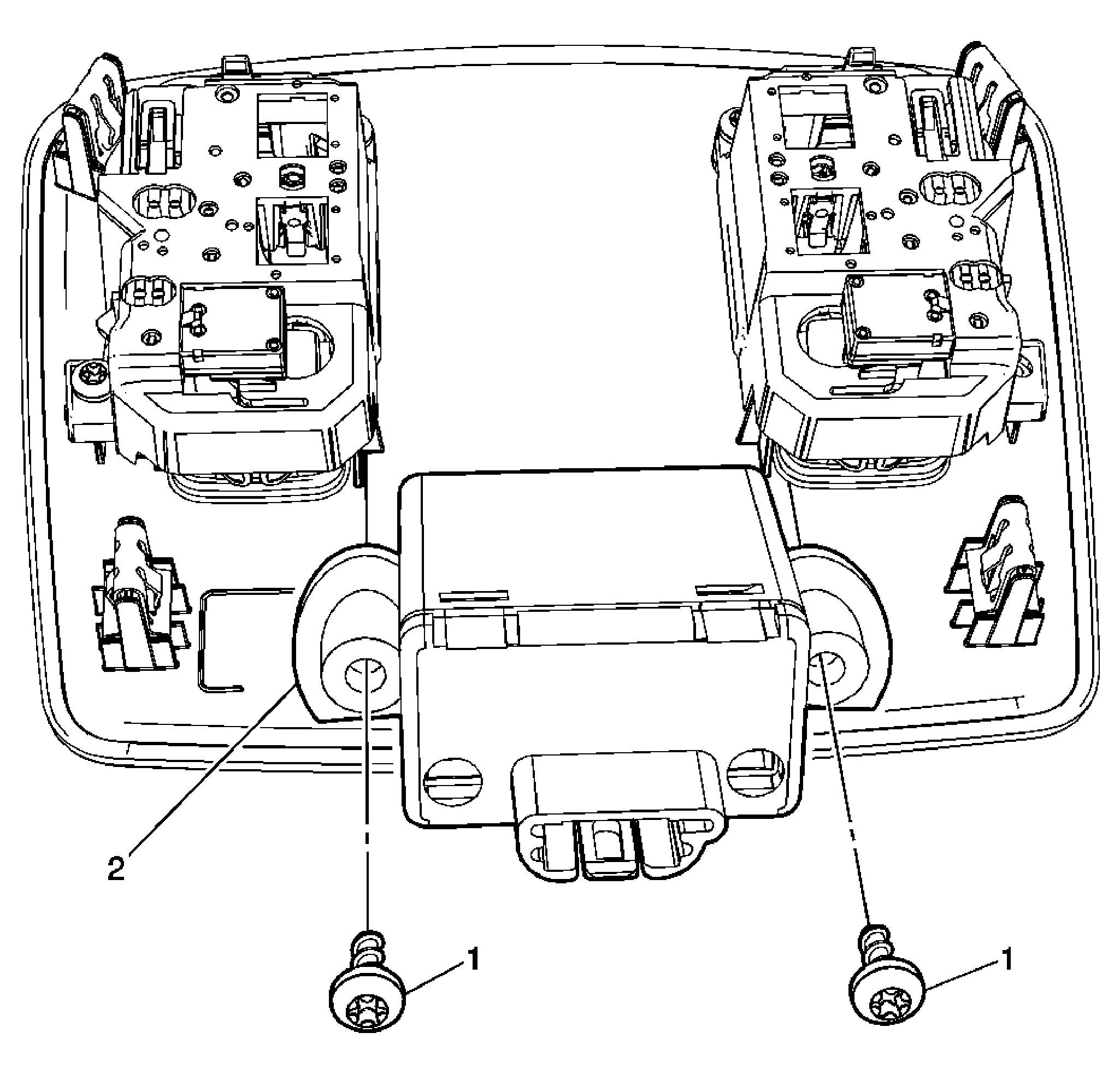

Fig 1: Information Center Telltale Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear roof console assembly. Refer to Roof Rear Console Replacement .
1	Information Center Telltale Assembly Screw (Qty: 2) CAUTION: refer to Fastener Caution . Tighten: 7 N.m (62 lb in)
2	Information Center Telltale Assembly Procedure Disconnect the electrical connection. For programming and set up procedures, refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the rear roof console assembly. Refer to Roof Rear Console Replacement .

Information Center Telltale Assembly Screw (Qty: 2)

CAUTION: refer to Fastener Caution .

Tighten: 7 N.m (62 lb in)

Information Center Telltale Assembly

Procedure

Disconnect the electrical connection.
For programming and set up procedures, refer to Control Module References .
