Remote Function Schematics
WARNING:
This page is about a different car, the 2010 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Garage Door Opener (UG1)
Courtesy of GENERAL MOTORS CORP.

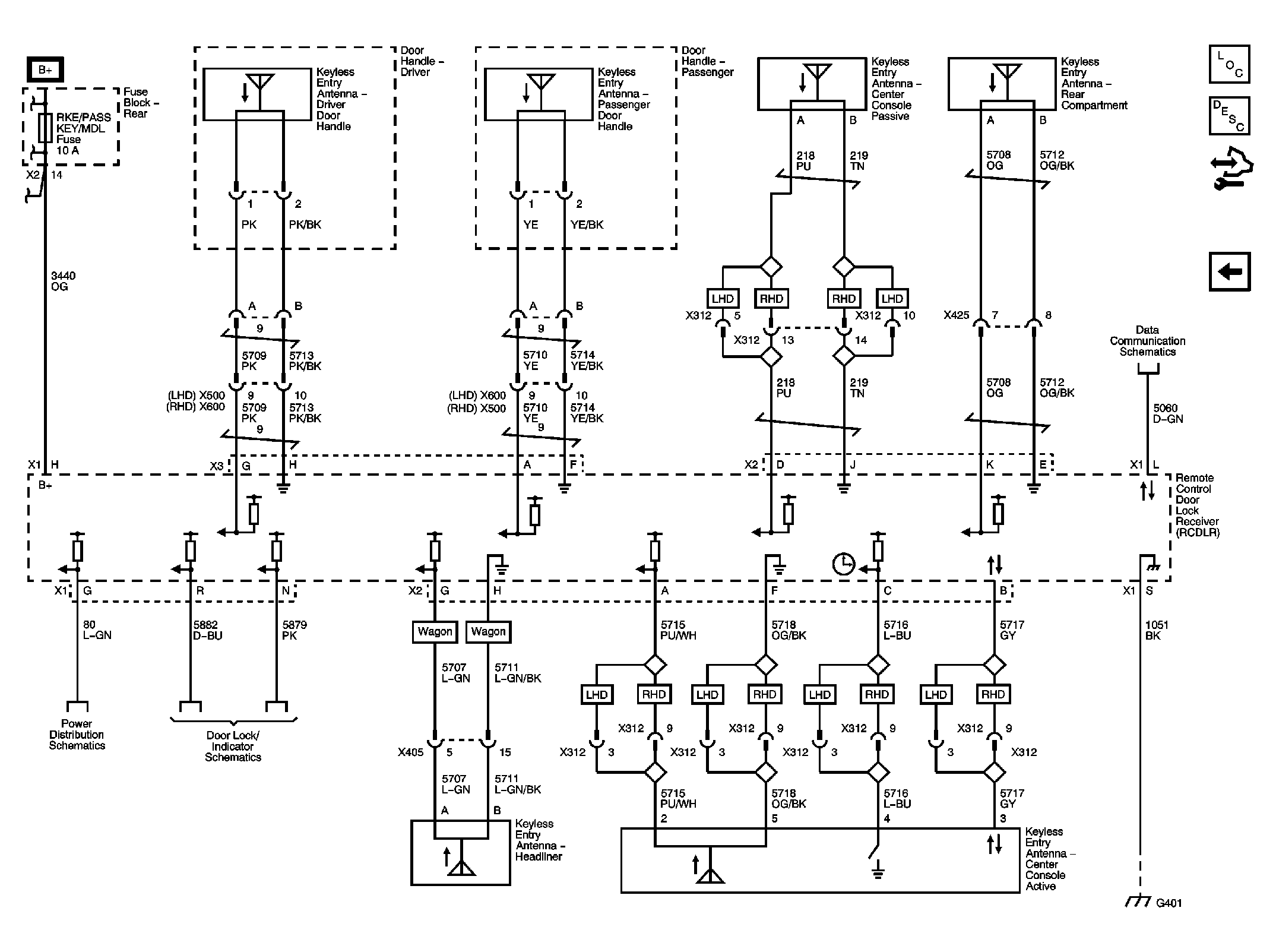

Fig 2: Keyless Entry (without BTM)
Courtesy of GENERAL MOTORS CORP.
Fig 3: Keyless Entry (BTM)
Courtesy of GENERAL MOTORS CORP.
