Engine Controls Schematics

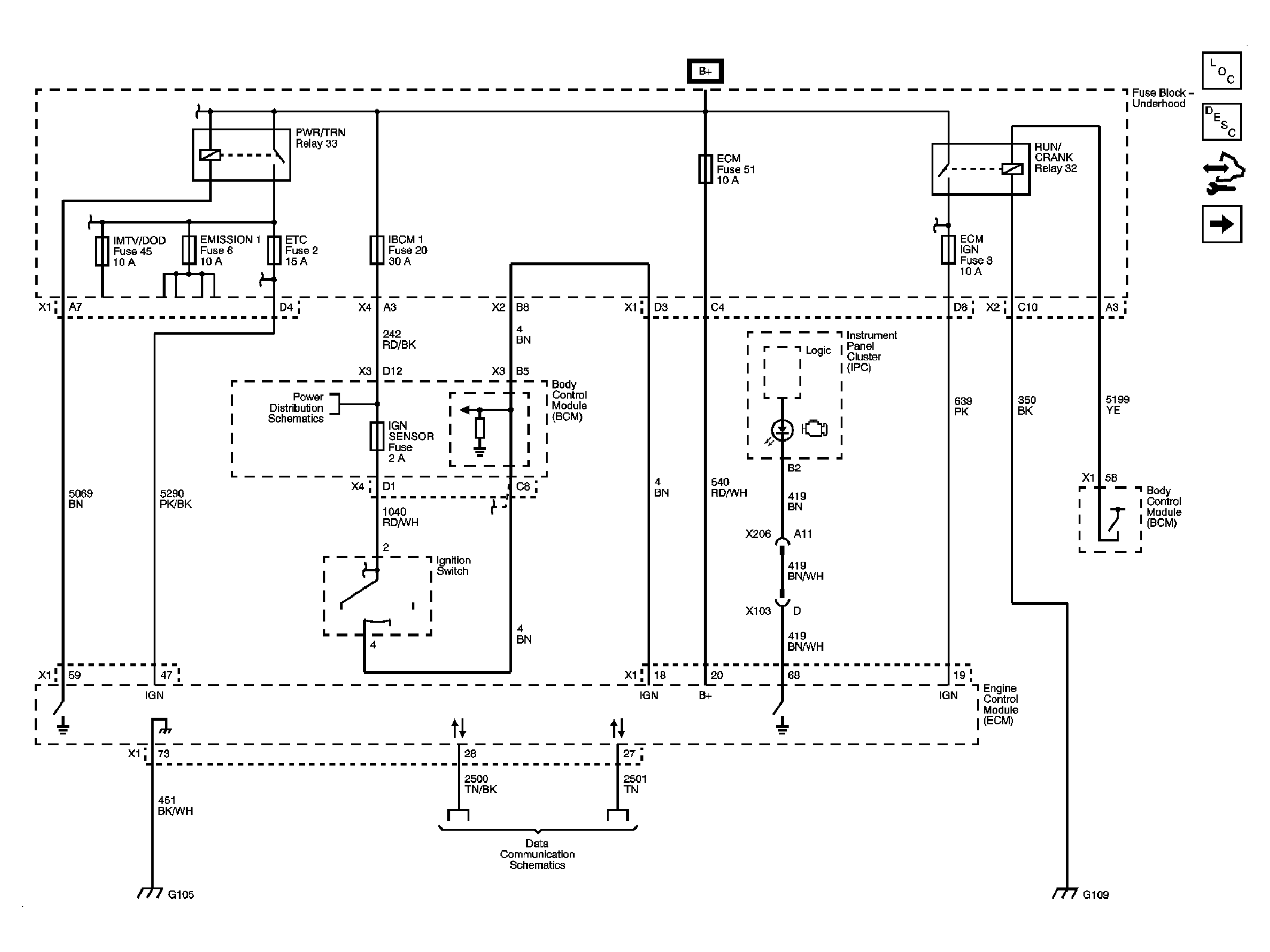

Fig 1: Power, MIL, DLC, Ignition Switch and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5-Volt and Low References Schematic

Courtesy of GENERAL MOTORS CORP.

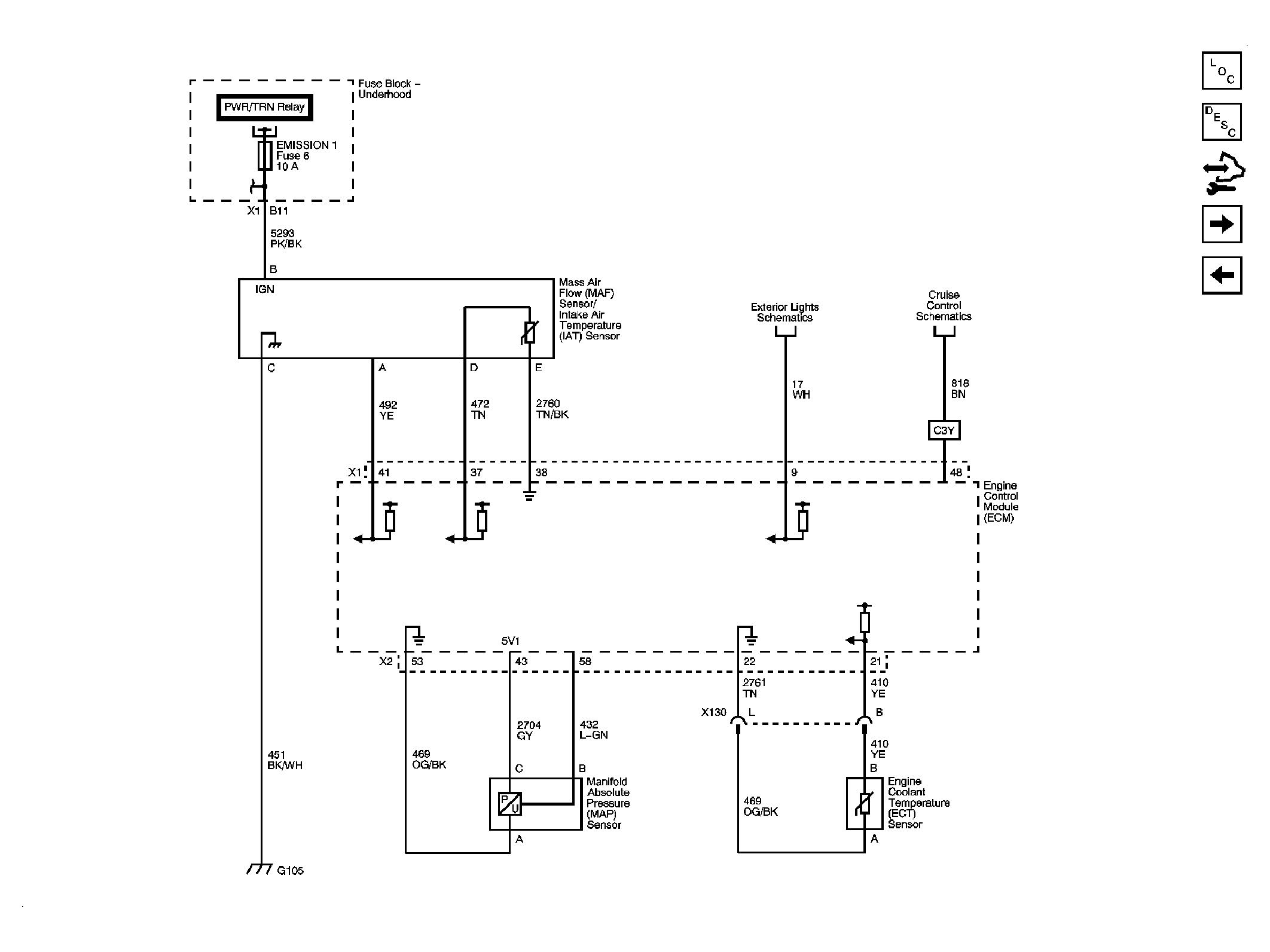

Fig 3: MAF/IAT, MAP, ECT Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

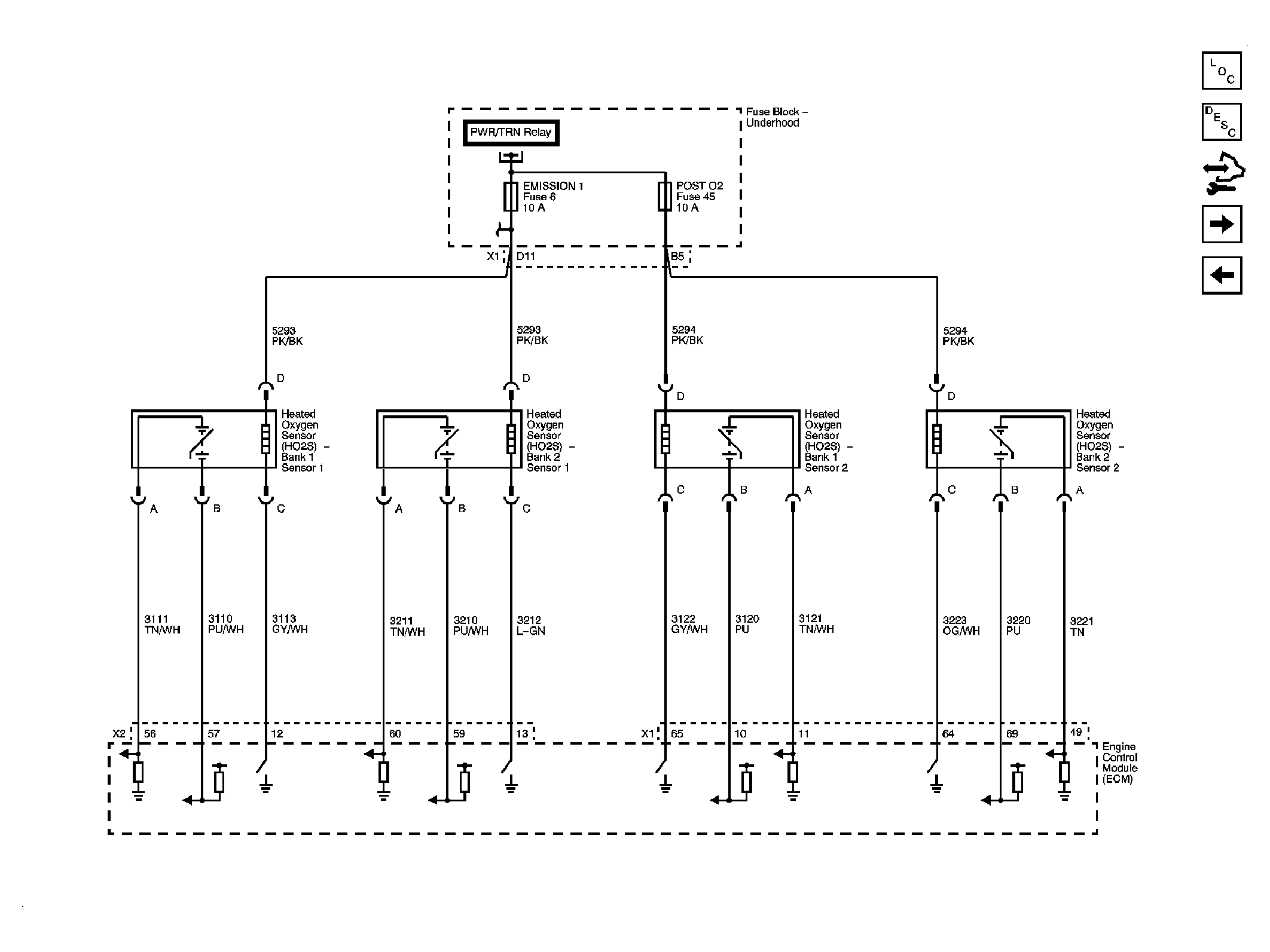

Fig 4: Heated Oxygen Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

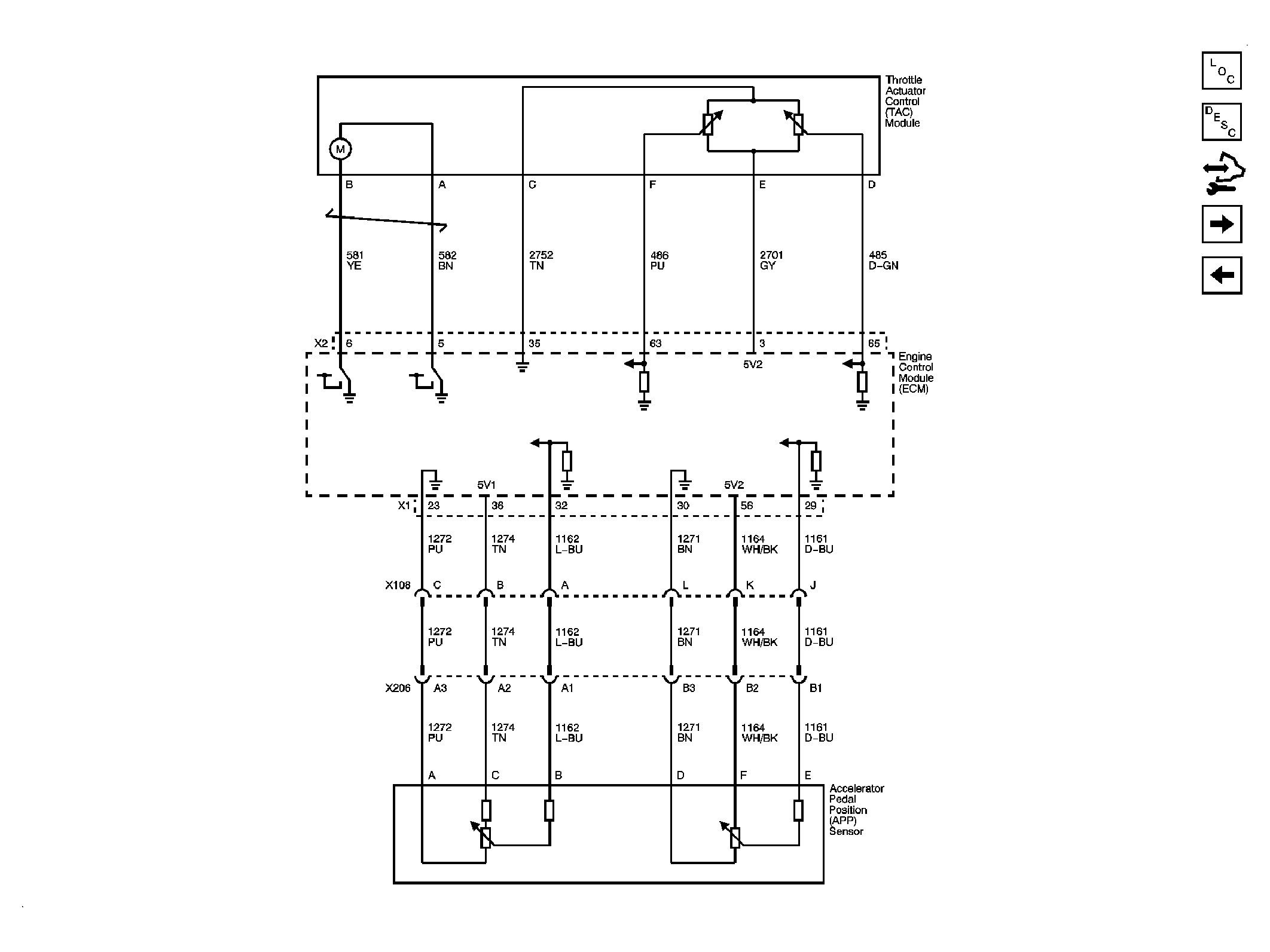

Fig 5: Electronic Throttle Controls Schematic

Courtesy of GENERAL MOTORS CORP.

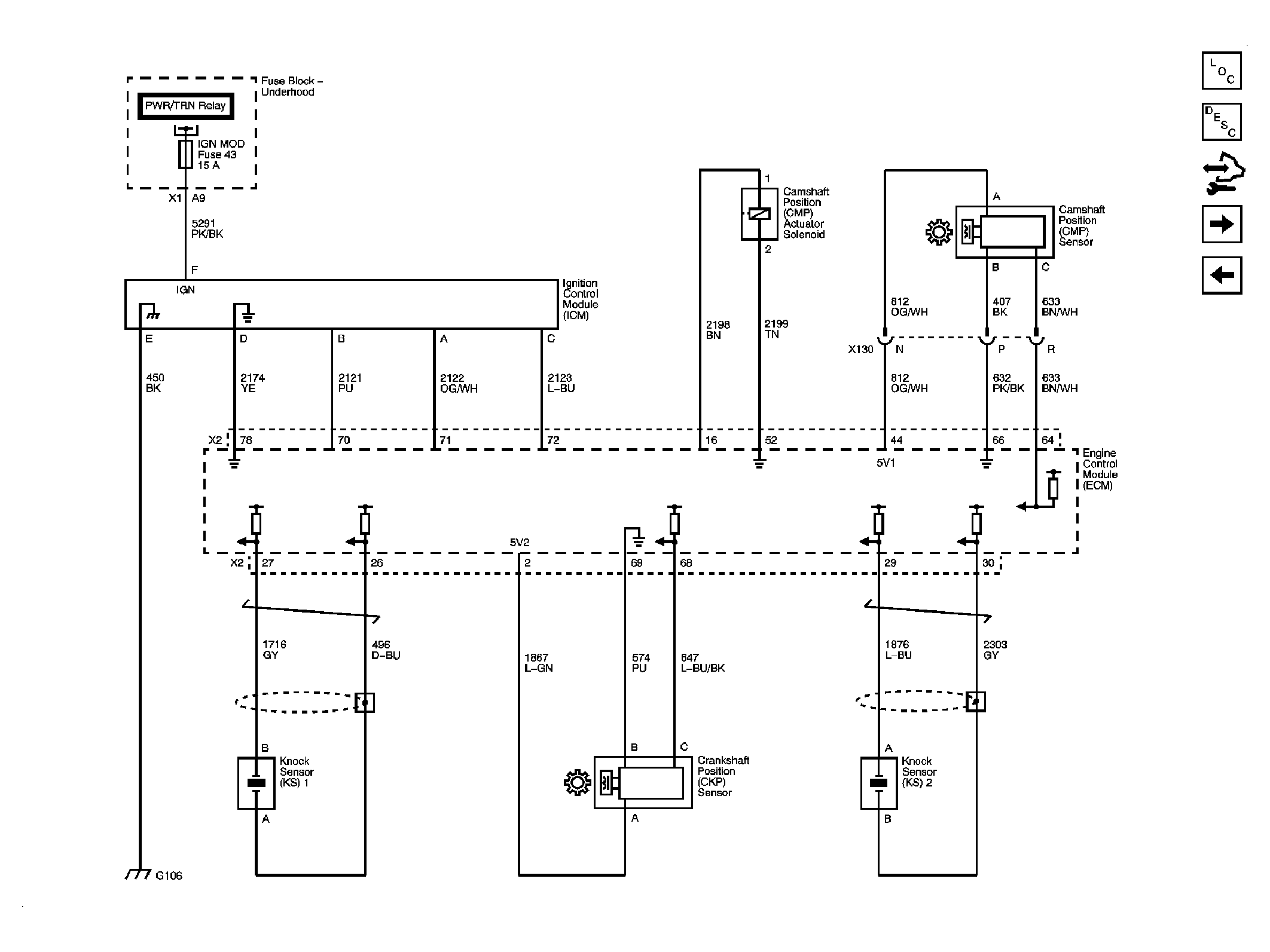

Fig 6: Ignition System Schematic

Courtesy of GENERAL MOTORS CORP.

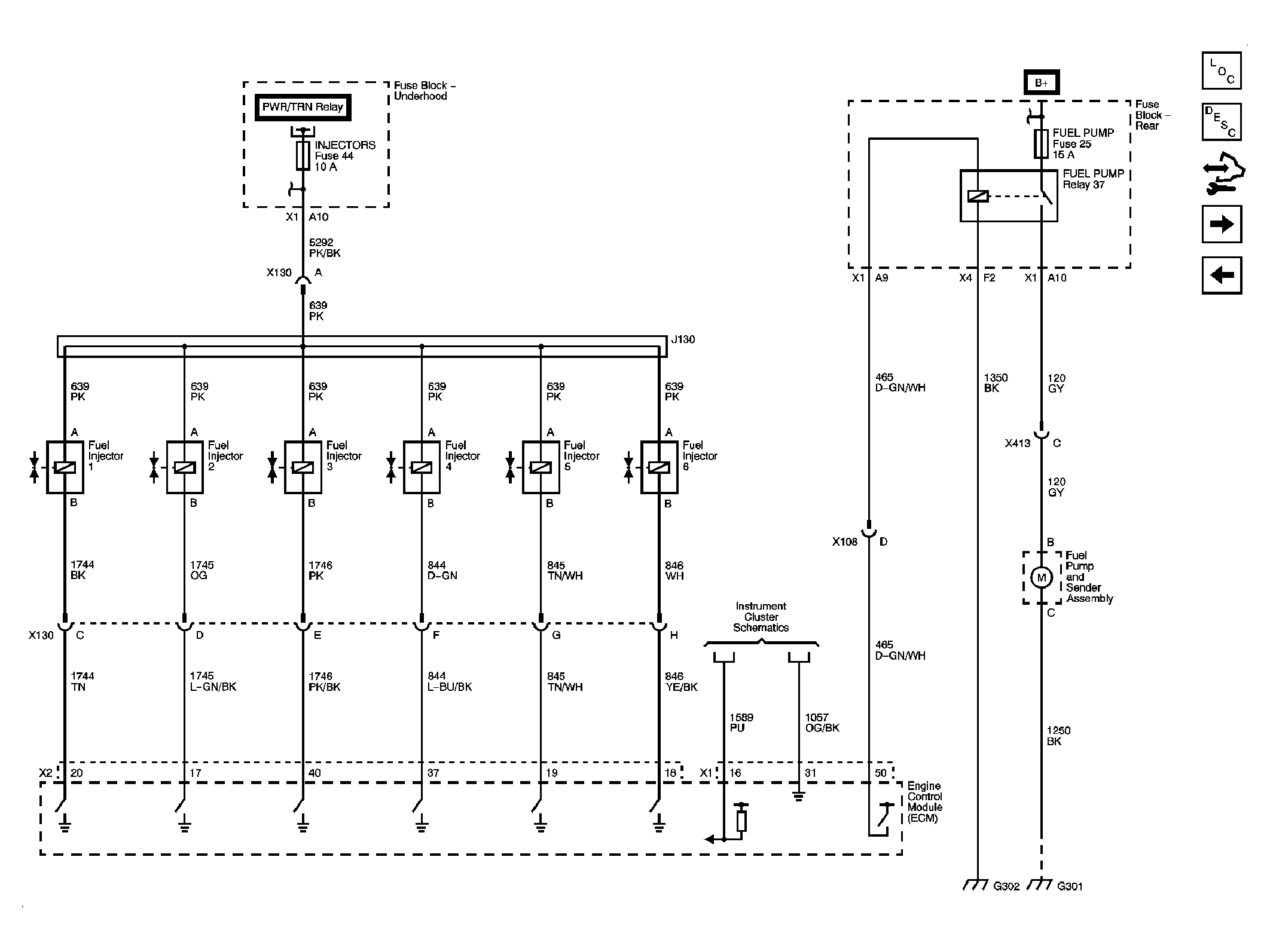

Fig 7: Fuel Injectors and Fuel Pump Schematic

Courtesy of GENERAL MOTORS CORP.

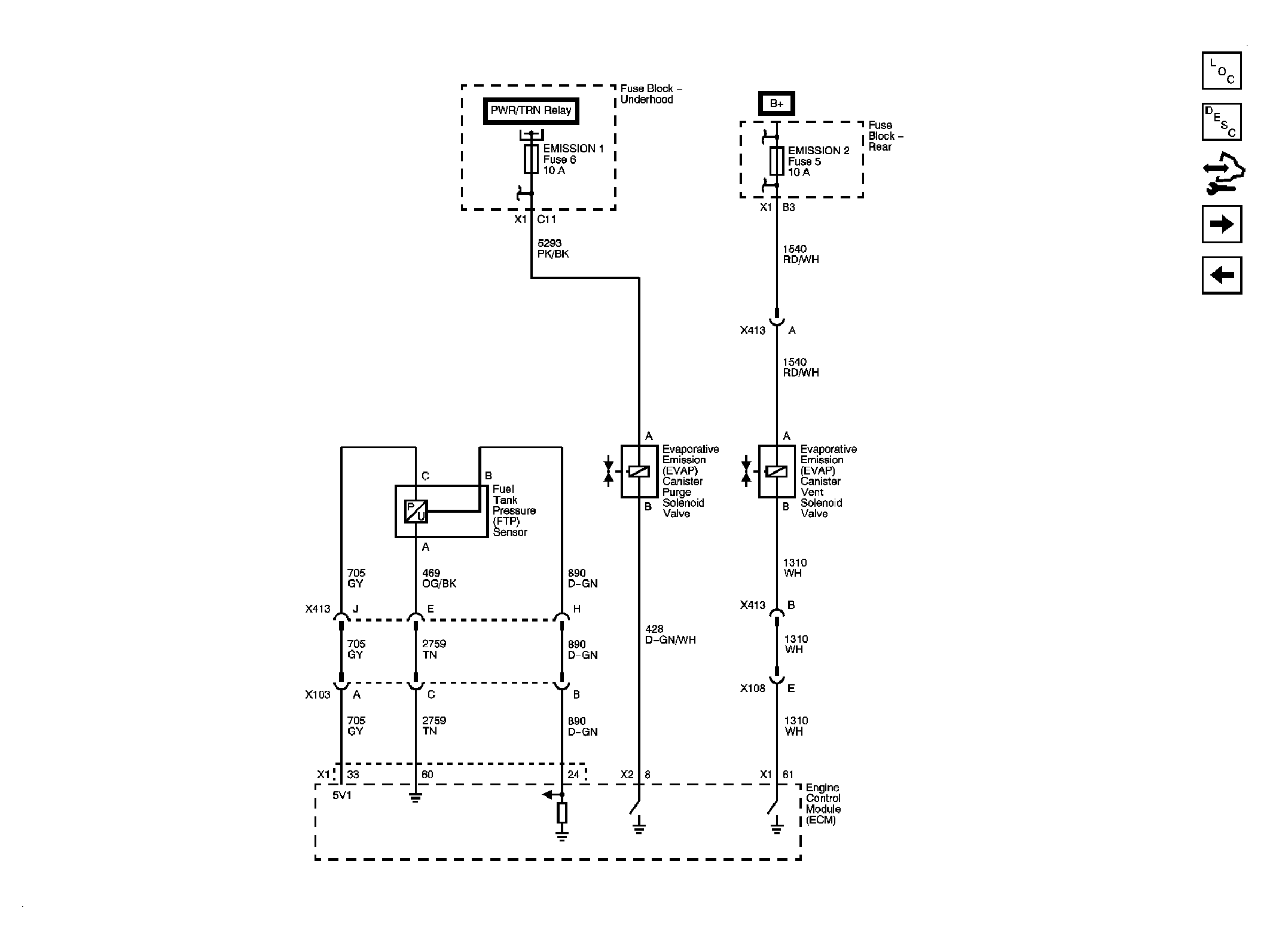

Fig 8: EVAP Controls and FTP Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 9: Controlled/Monitored Subsystem References Schematic

Courtesy of GENERAL MOTORS CORP.
