Removal Procedure

    CAUTION: Refer to Gasoline/Gasoline Vapors Caution .
  1. Remove the fuel tank. Refer to Fuel Tank Replacement .
    2. Fig 1: Identifying Secondary Fuel Tank Module Electrical Connector
    GM1949849Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the secondary fuel tank module electrical connector (1).
    3. Fig 2: Identifying Cam Lock Ring & Fuel Tank
    GM2008609Courtesy of GENERAL MOTORS CORP.
  3. Rotate the cam lock ring (1) counter-clockwise using the EN-48278  .
    4. IMPORTANT: The cam lock ring (1) is a single use part and therefore must be discarded after removal.
  4. Remove the cam lock ring (1) from the fuel tank.

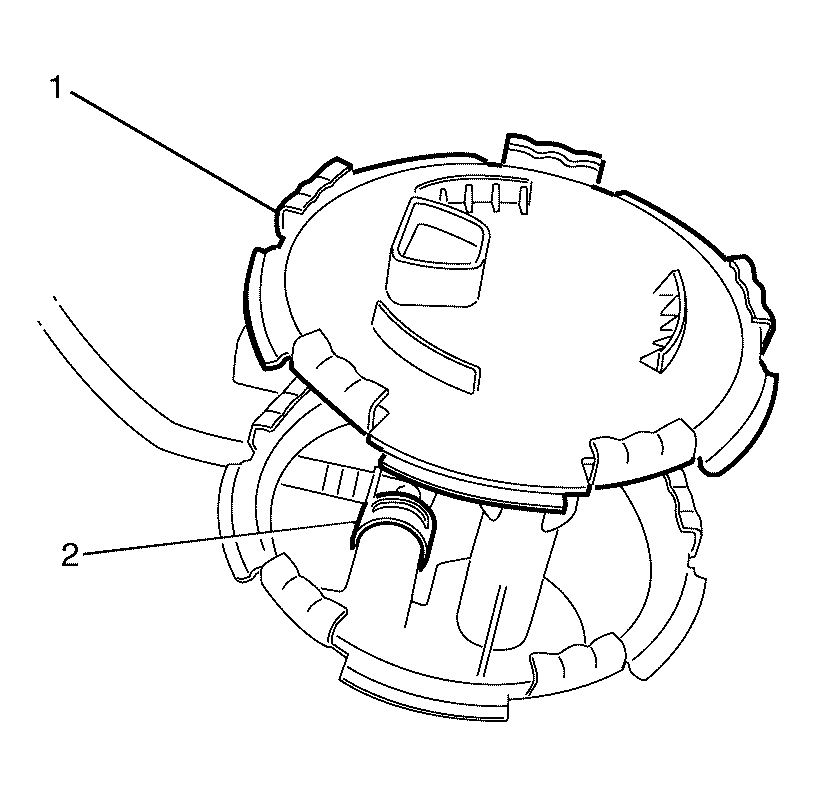

    5. Fig 3: Identifying Secondary Fuel Tank Module & Transfer Tube
    GM1949851Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The secondary fuel tank module (1) is vertical in the installed position, but pivots for removal.
  5. Carefully lift the secondary fuel tank module (1) from the fuel tank only enough to access the transfer tube (2).
    6. Fig 4: Identifying Transfer Tube & Secondary Fuel Tank Module
    GM1949854Courtesy of GENERAL MOTORS CORP.
  6. Remove the fuel supply tube (1). Refer to Plastic Collar Quick Connect Fitting Service .
  7. Remove the secondary fuel tank module (2) from the fuel tank.
    8. Fig 5: Identifying Secondary Fuel Tank Module & Seal
    GM1949847Courtesy of GENERAL MOTORS CORP.
  8. Remove the secondary fuel tank module seal (1) from the secondary fuel tank module (2).

    Do not reuse the seal.
