Front of Vehicle/Engine Compartment Component Views

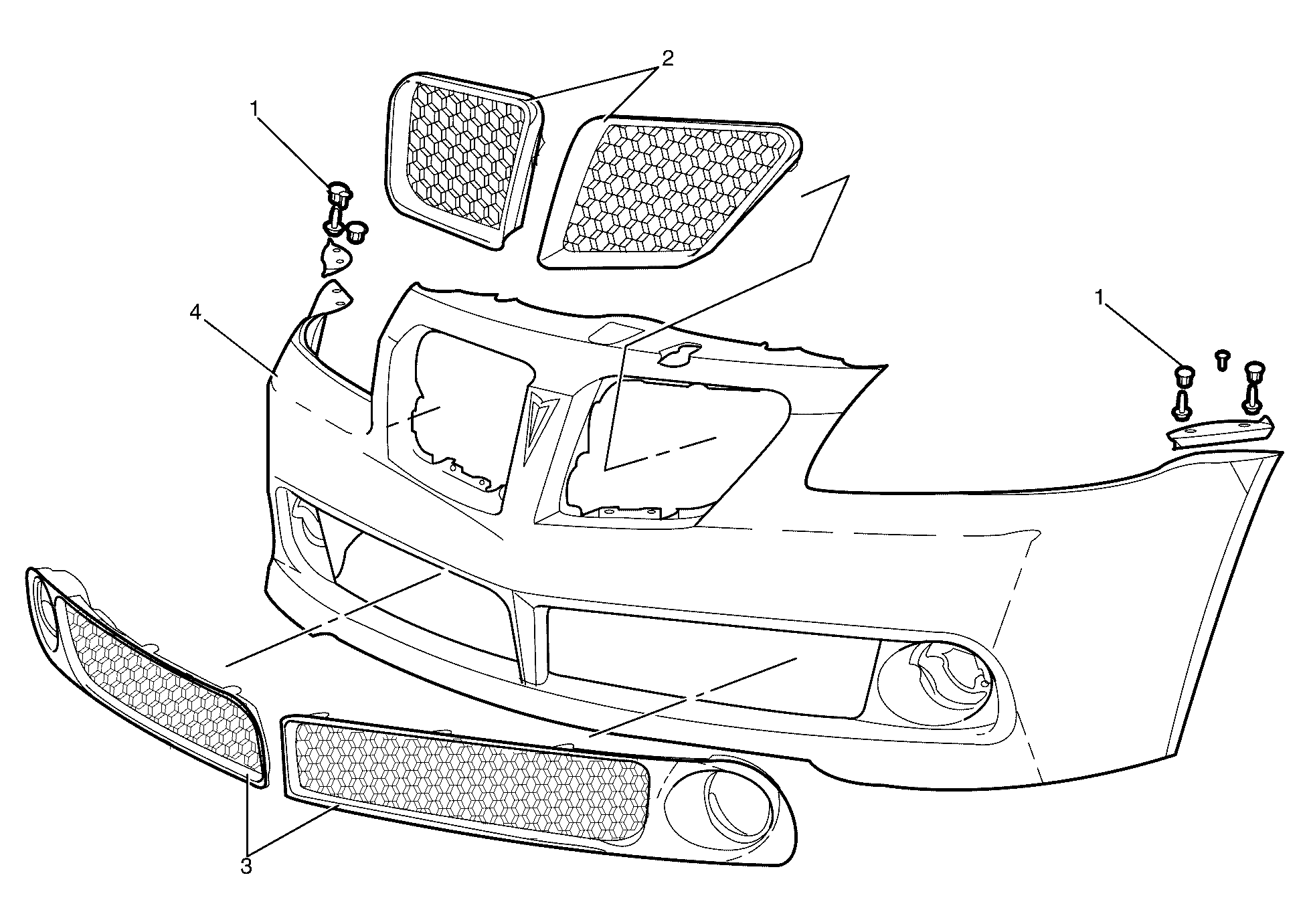

Fig 1: G8 Front Bumper Fascia Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Bumper Fascia Reinforcement
2	Radiator Grille
3	Front Bumper Fascia Lower Grille
4	Front Bumper Fascia

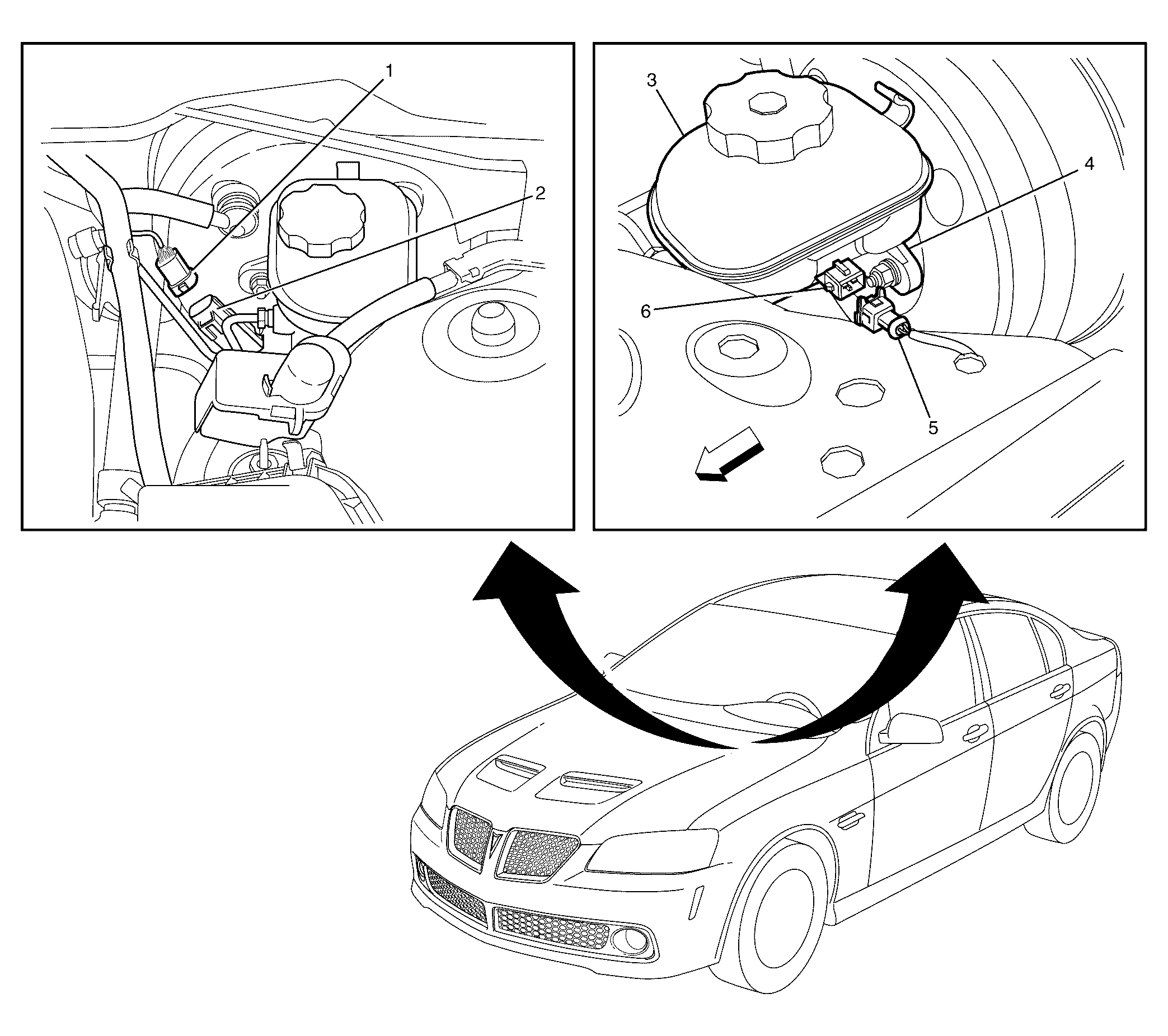

Fig 2: Brake Fluid Level Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Power Brake Booster Vacuum Sensor Electrical Connector
2	Power Brake Booster Vacuum Sensor
3	Master Cylinder Reservoir
4	Master Cylinder Assembly
5	Brake Fluid level Switch Electrical Connector
6	Brake Fluid level Switch

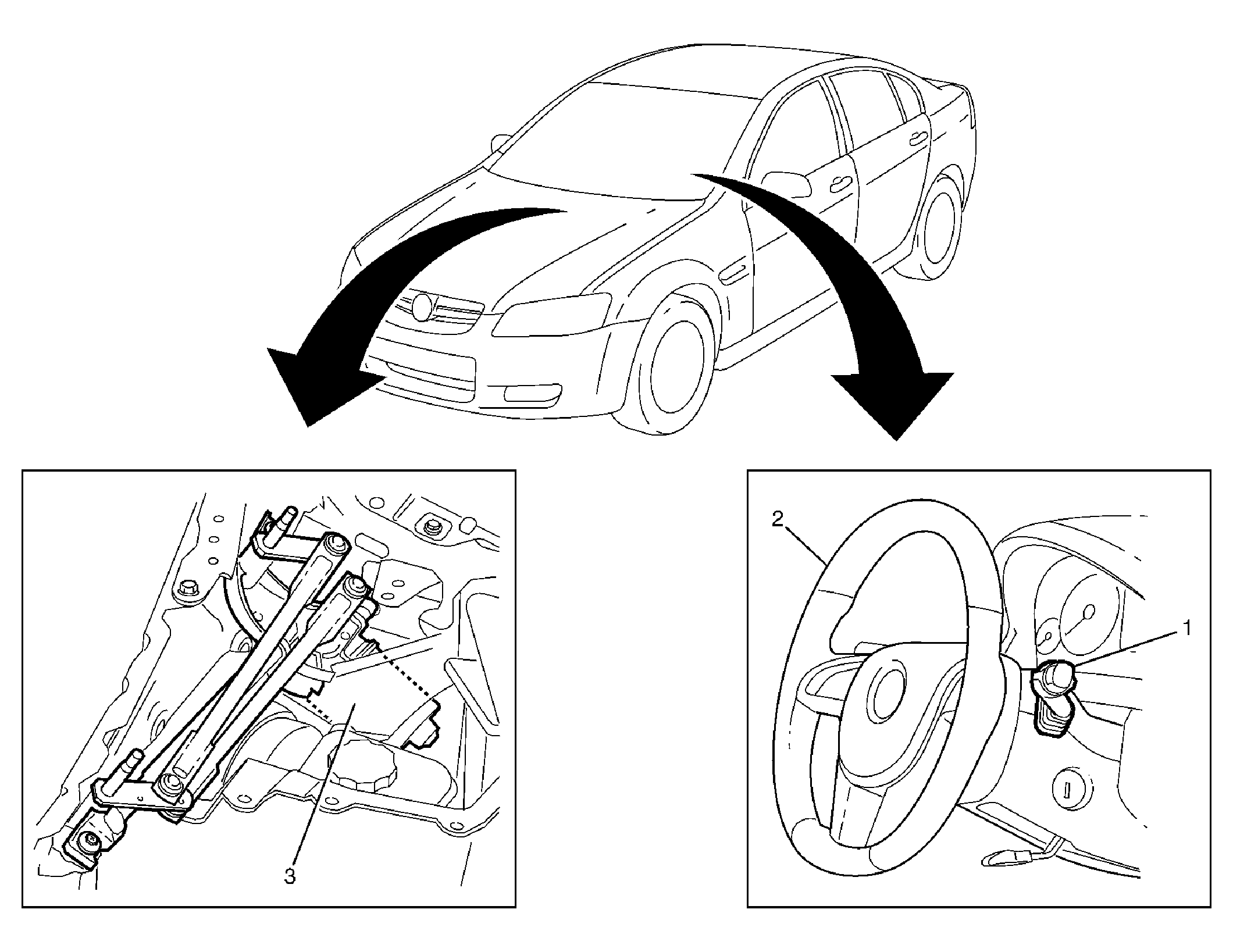

Fig 3: Wiper & Washer Stalk

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wiper/Washer Stalk
2	Steering Wheel
3	Wiper Motor

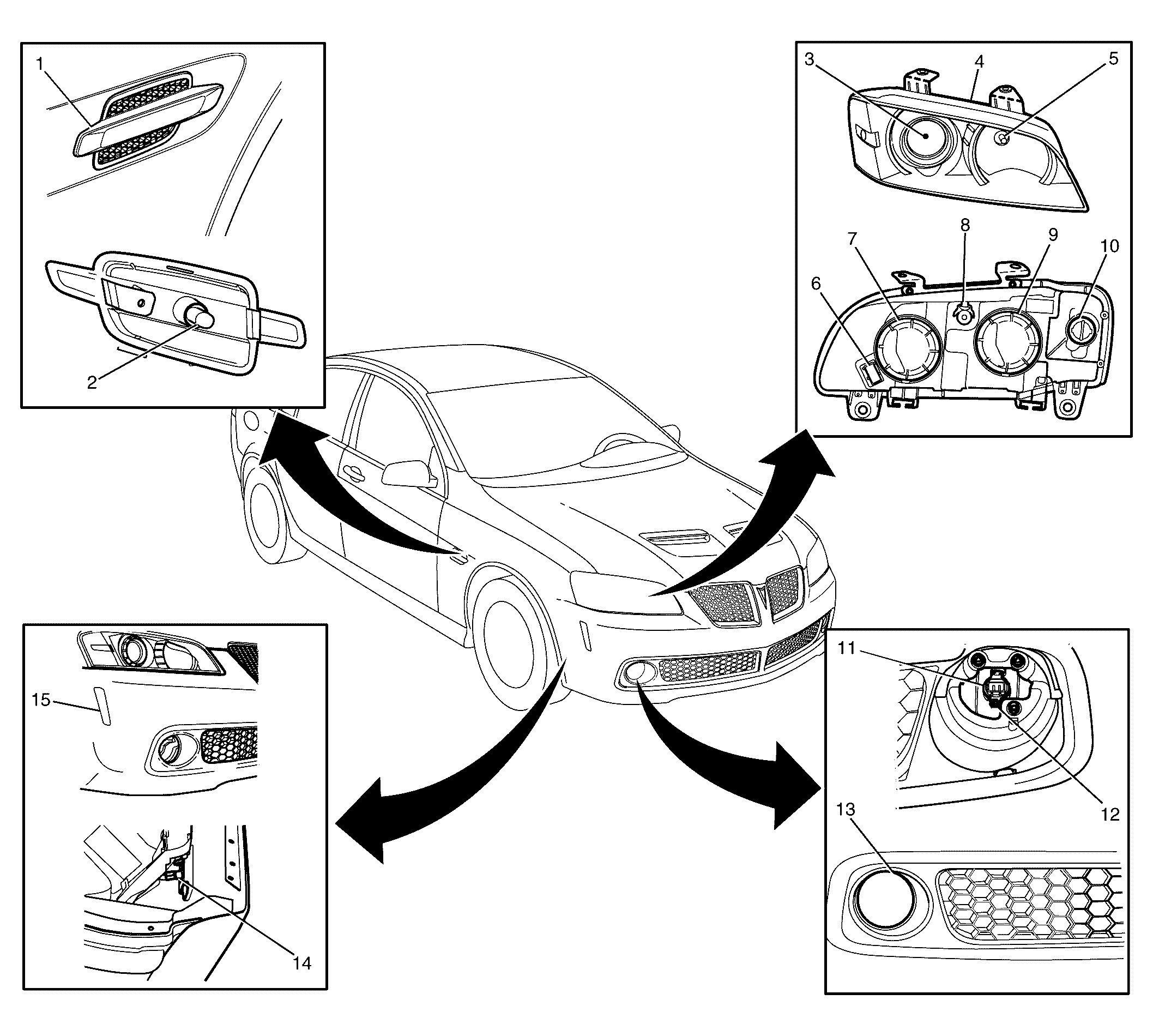

Fig 4: Exterior Lamps - Front View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Repeater Lamp Assembly
2	Repeater Lamp Bulb
3	Low Beam/Daytime Running Lamp Bulb
4	Headlamp Assembly
5	High Beam Bulb
6	Headlamp Assembly Electrical Connector
7	High Beam Bulb Dust Cover
8	Headlamp Adjuster
9	Low Beam Bulb Dust Cover
10	Front Indicator and Park Lamp Bulb
11	Fog Lamp Bulb
12	Fog Lamp Adjuster
13	Fog Lamp Assembly
14	Front Side Marker Bulb
15	Front Side Marker Assembly

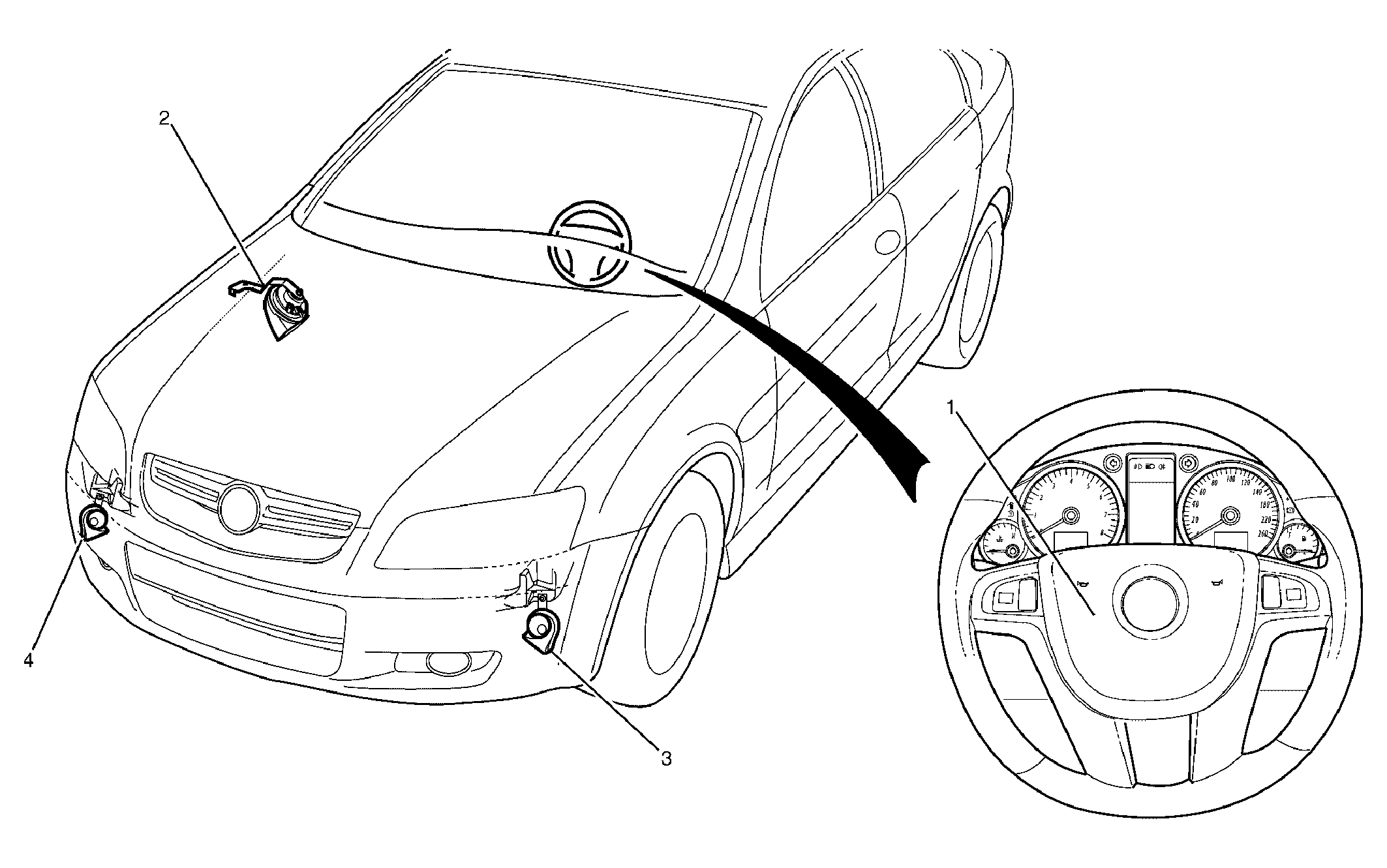

Fig 5: Horn System

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Button
2	Theft Deterrent Horn 400 Mhz
3	Hazard Horn 400 Mhz
4	Hazard Horn 500 Mhz

Fig 6: Power Steering Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Tie Rod End
2	Intermediate Steering Shaft
3	Power Steering Rack
4	Left Tie Rod End
5	Power Steering Pump
6	Fluid Reservoir Outlet Pipe/Hose
7	Fluid Reservoir Inlet Pipe/Hose
8	Fluid Reservoir
9	Power Steering Gear Outlet Pipe/Hose

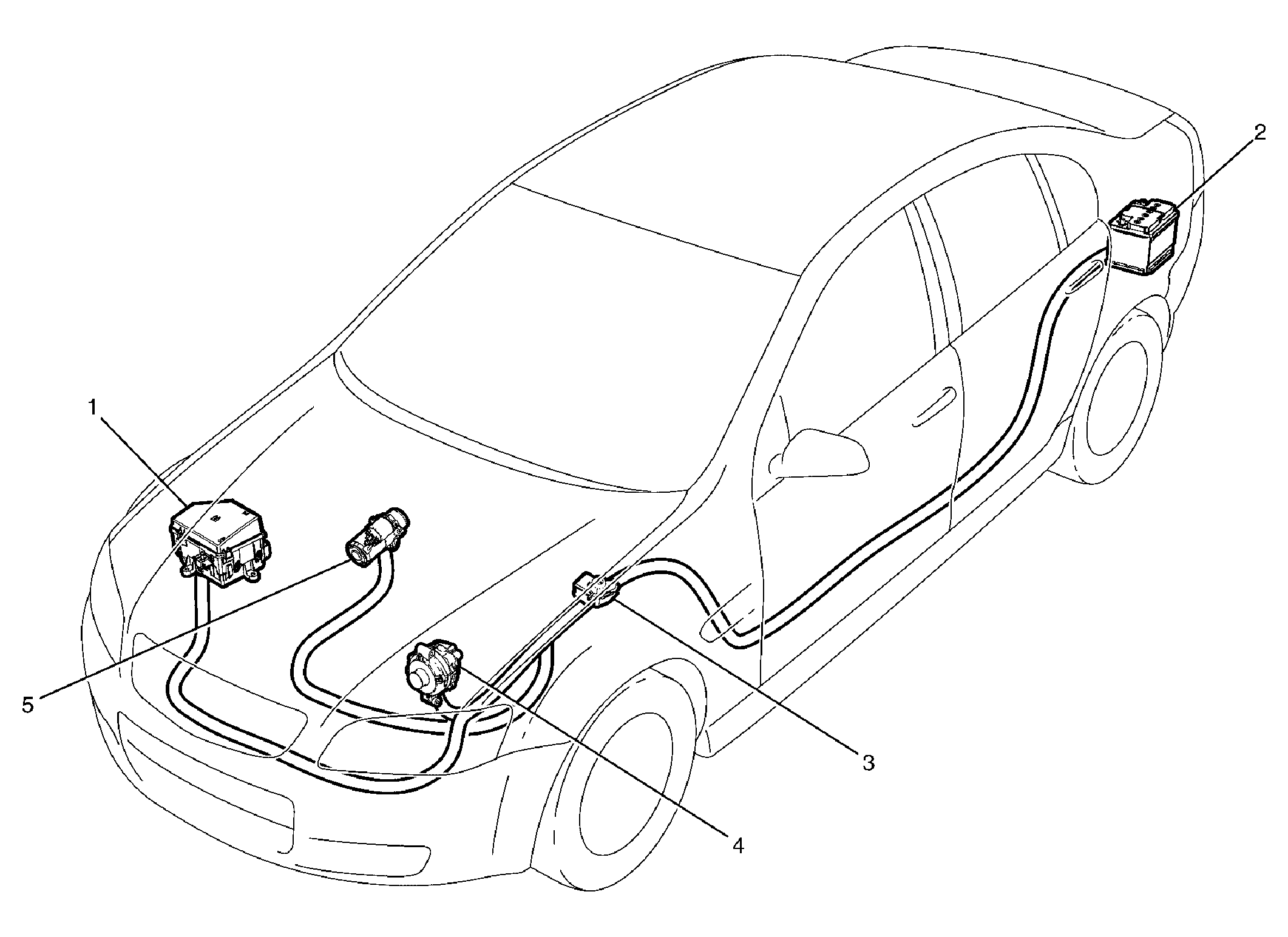

Fig 7: Component Locator (LY7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Under Bonnet Fuse Box
2	Battery
3	Battery Remote Positive Post
4	Starter Motor
5	Alternator

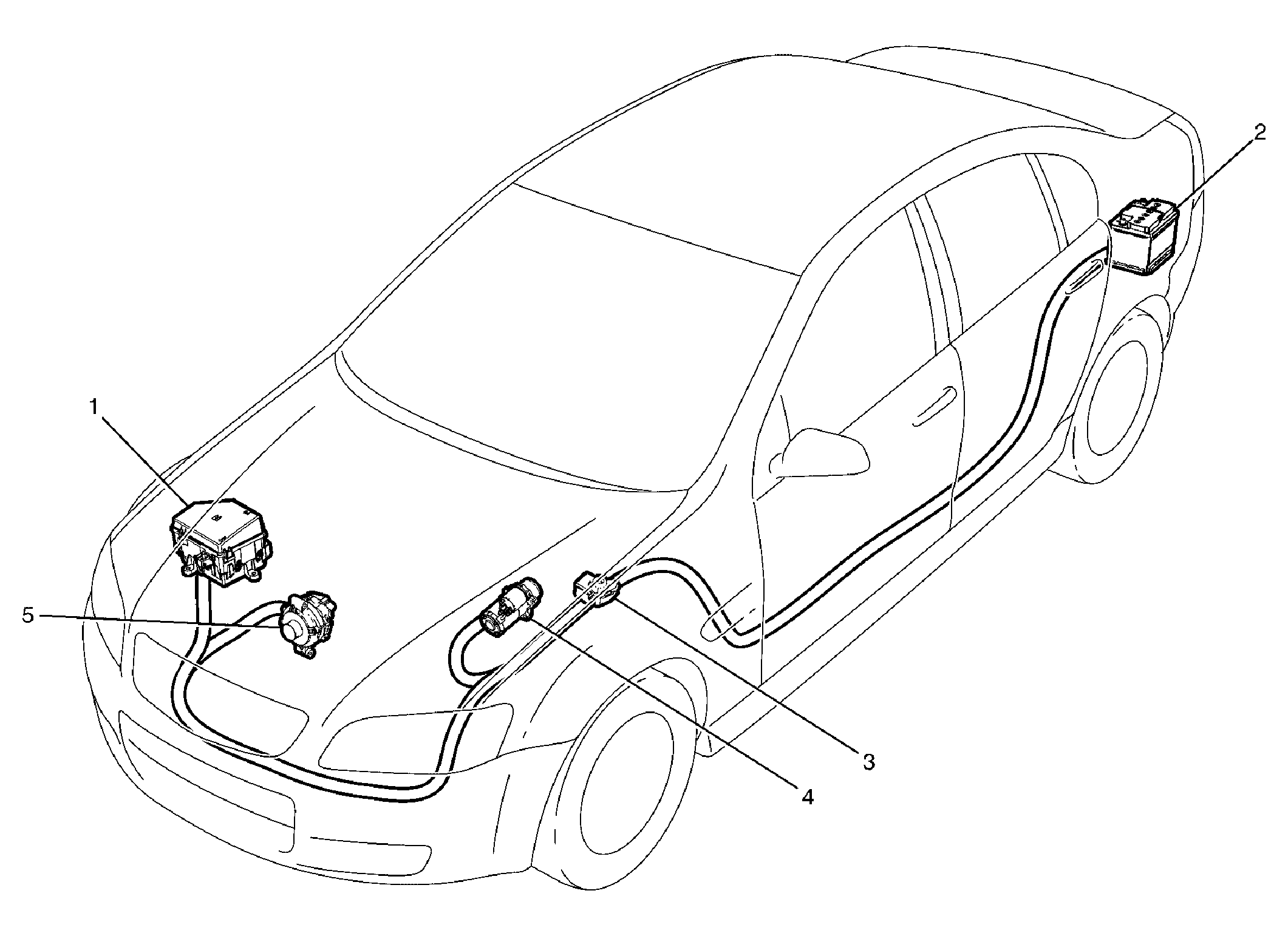

Fig 8: Component Locator (L76)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Under Bonnet Fuse Box
2	Battery
3	Battery Remote Positive Post
4	Alternator
5	Starter Motor
