Connector Views



Component Connector End Views

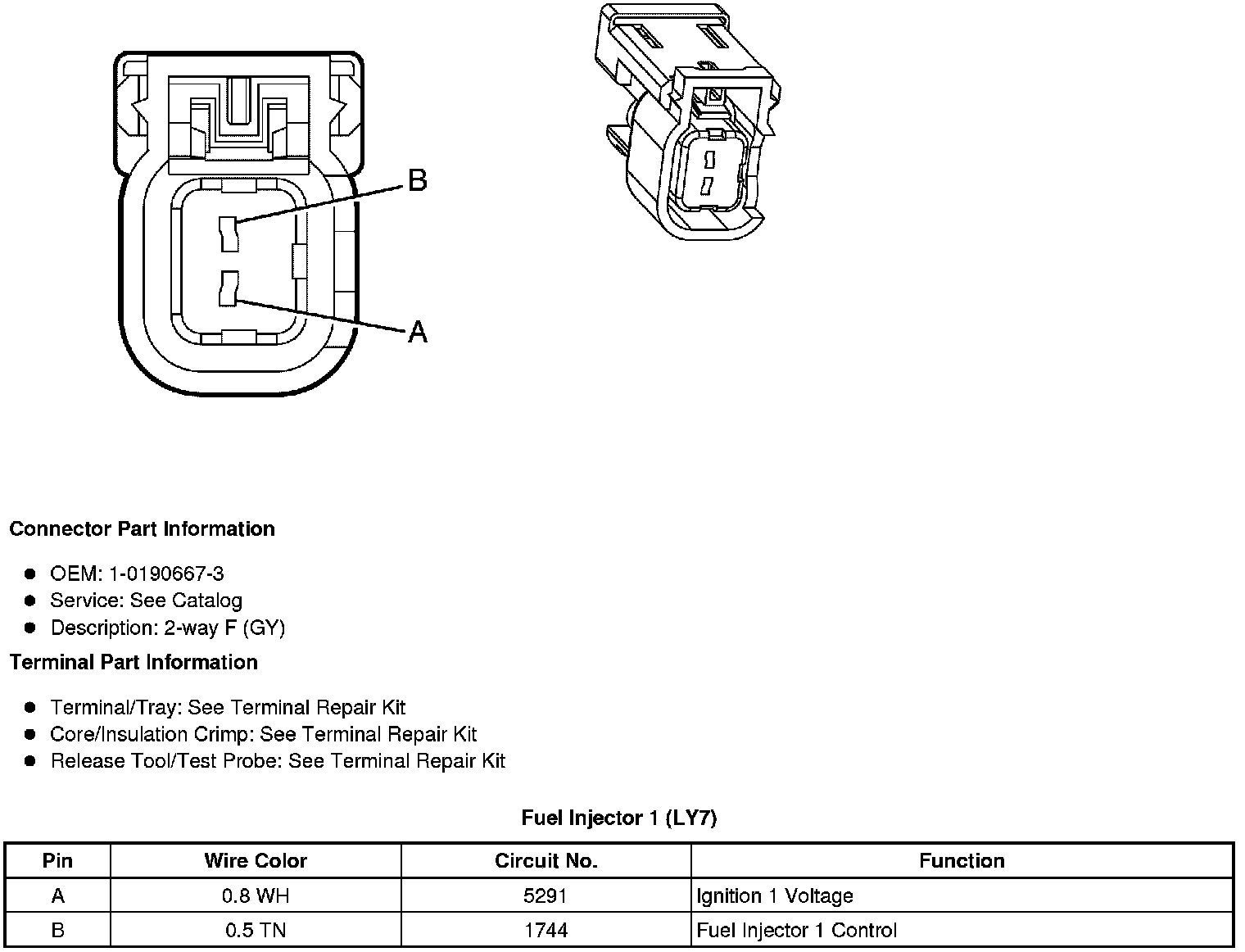

Fuel Injector 1 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Fuel Injector 1 (L76 - Gas 8 Cyl, 6.0L SFI, V8)

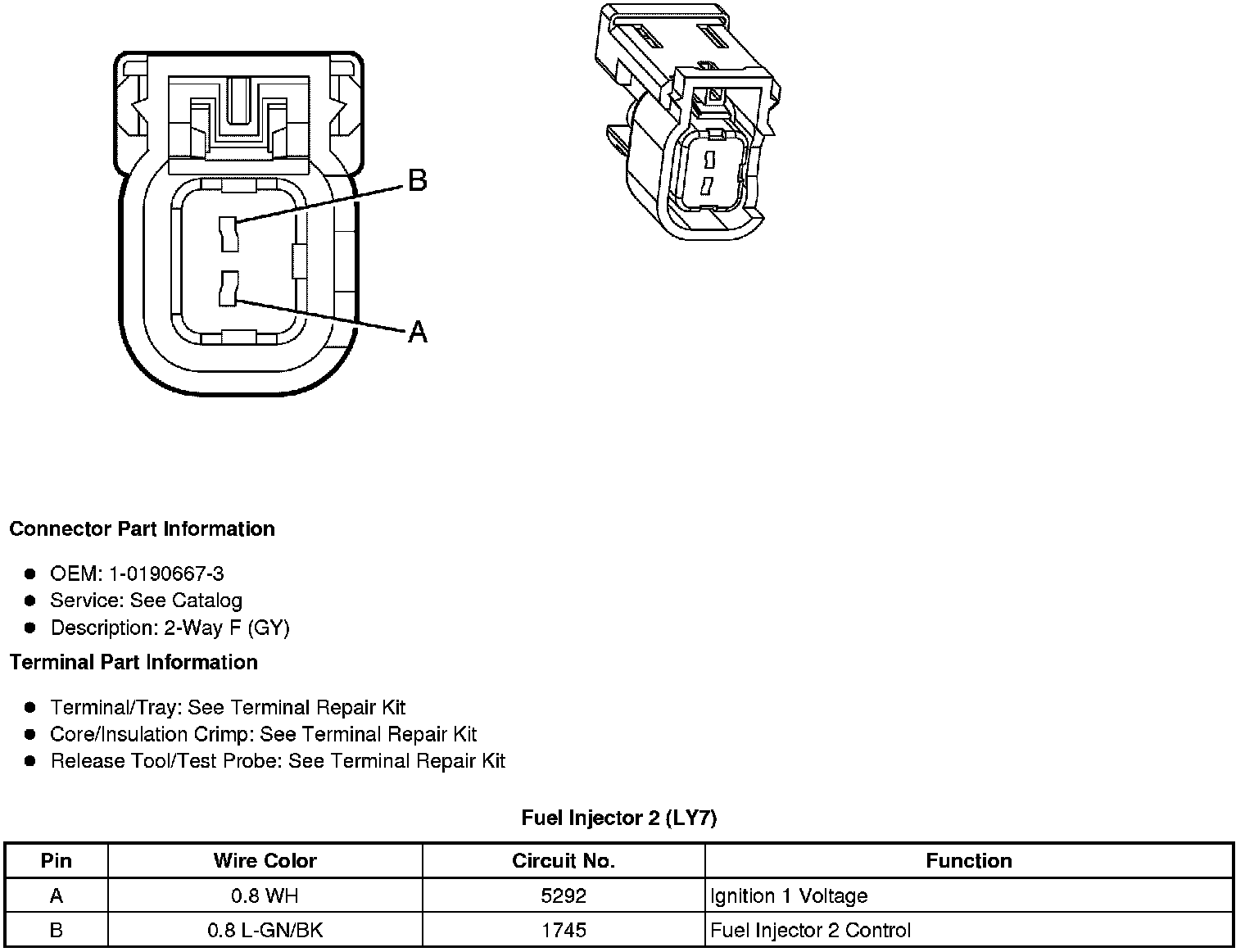

Fuel Injector 2 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

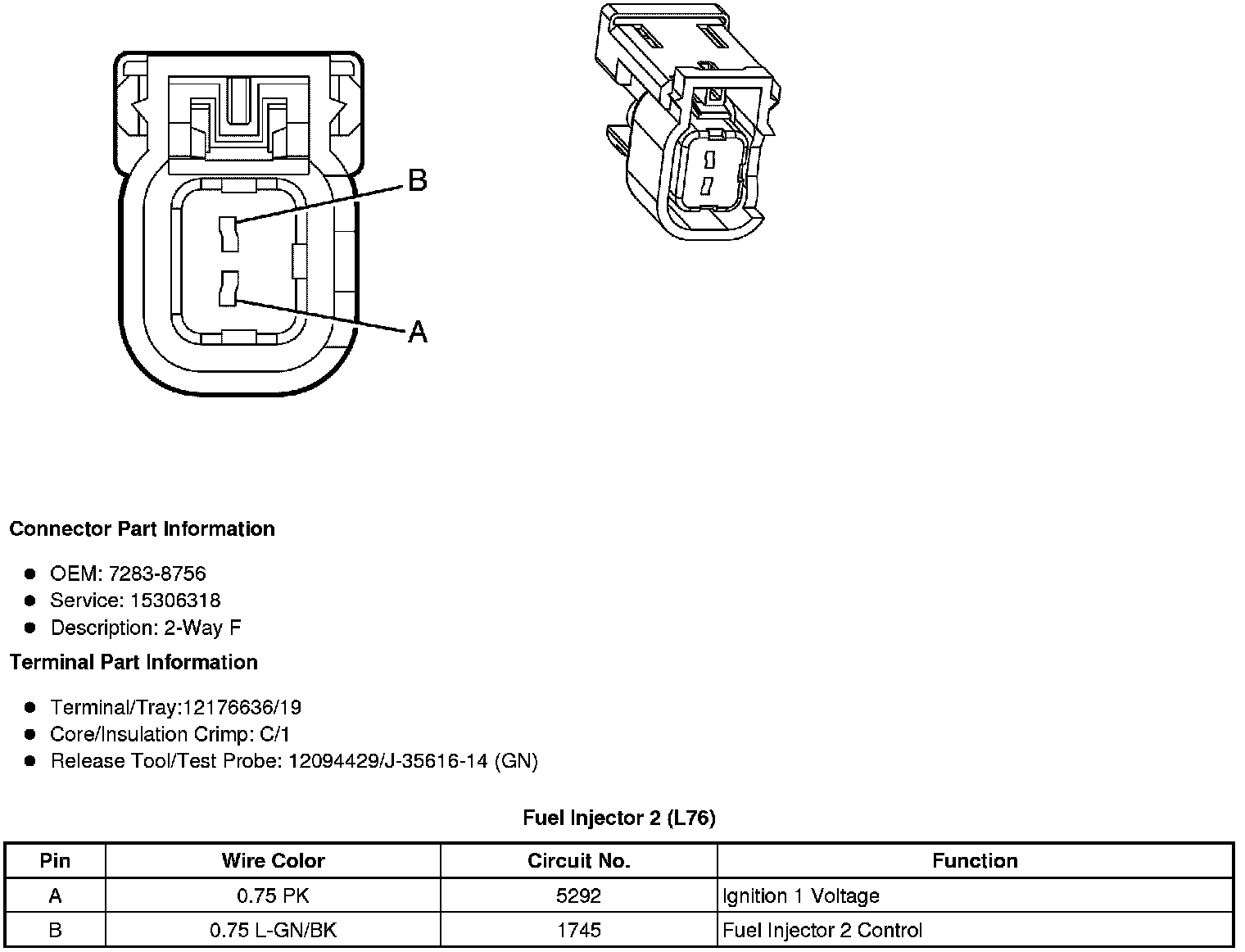

Fuel Injector 2 (L76 - Gas 8 Cyl, 6.0L SFI, V8)






Fuel Injector 3 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Fuel Injector 3 (L76 - Gas 8 Cyl, 6.0L SFI, V8)

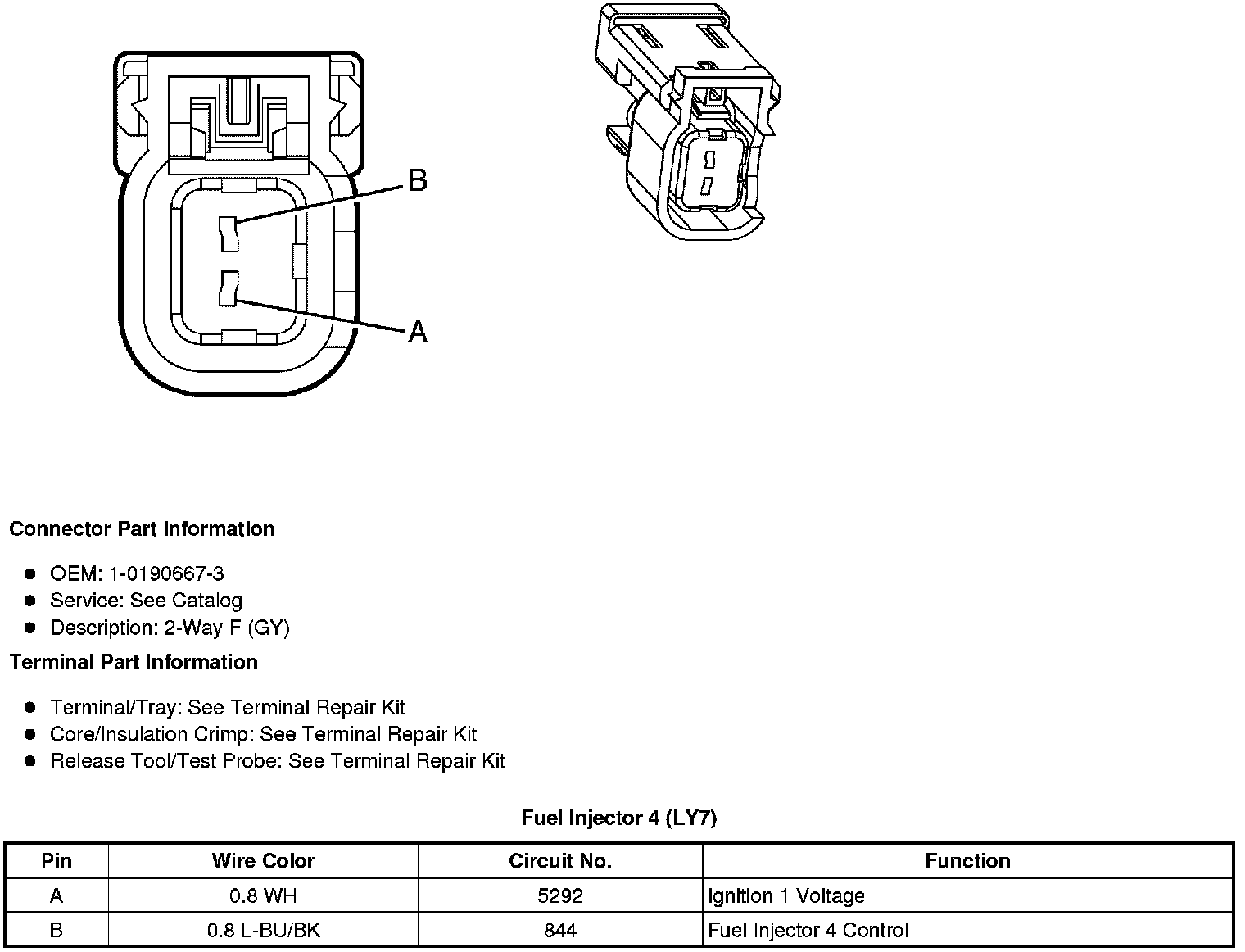

Fuel Injector 4 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

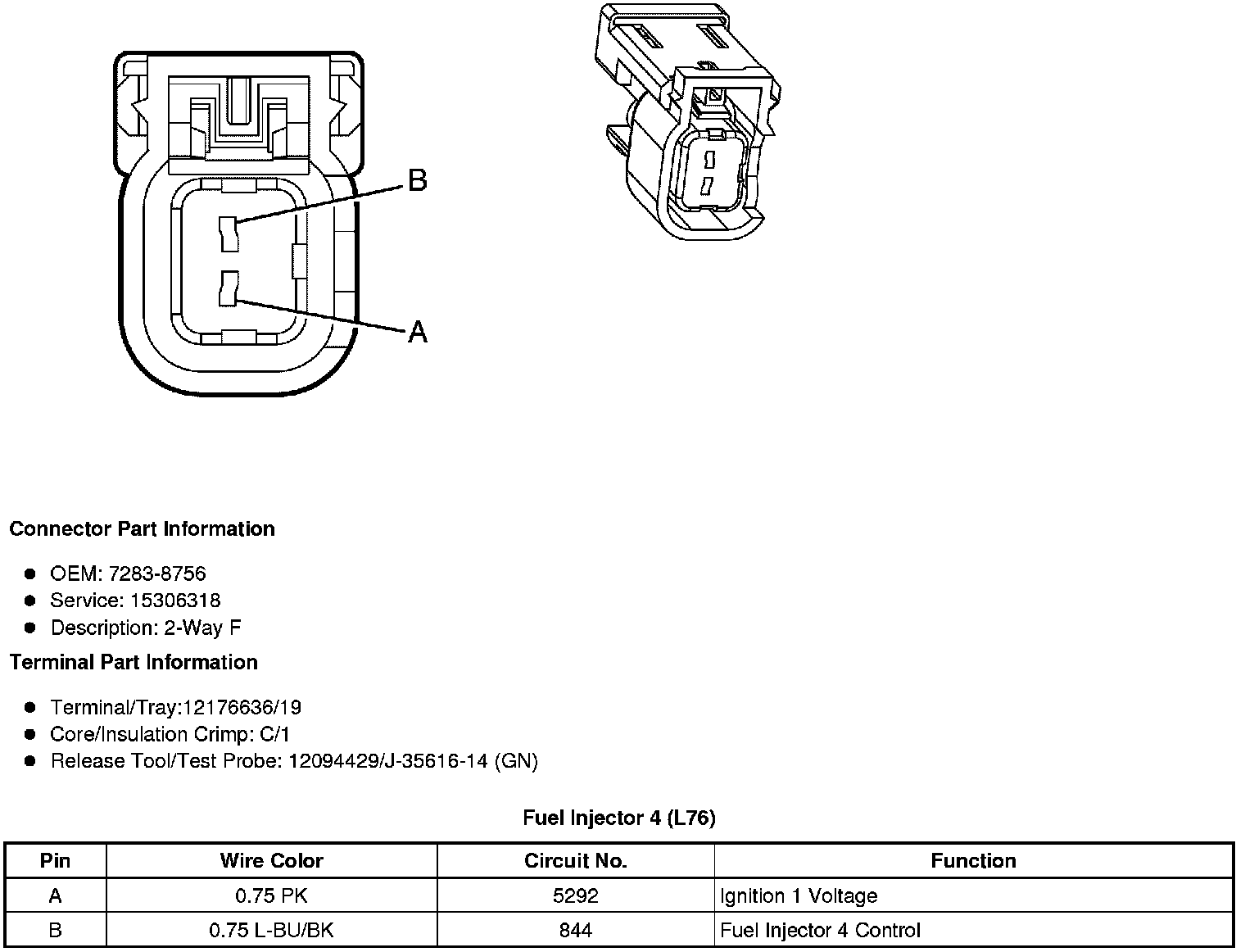

Fuel Injector 4 (L76 - Gas 8 Cyl, 6.0L SFI, V8)

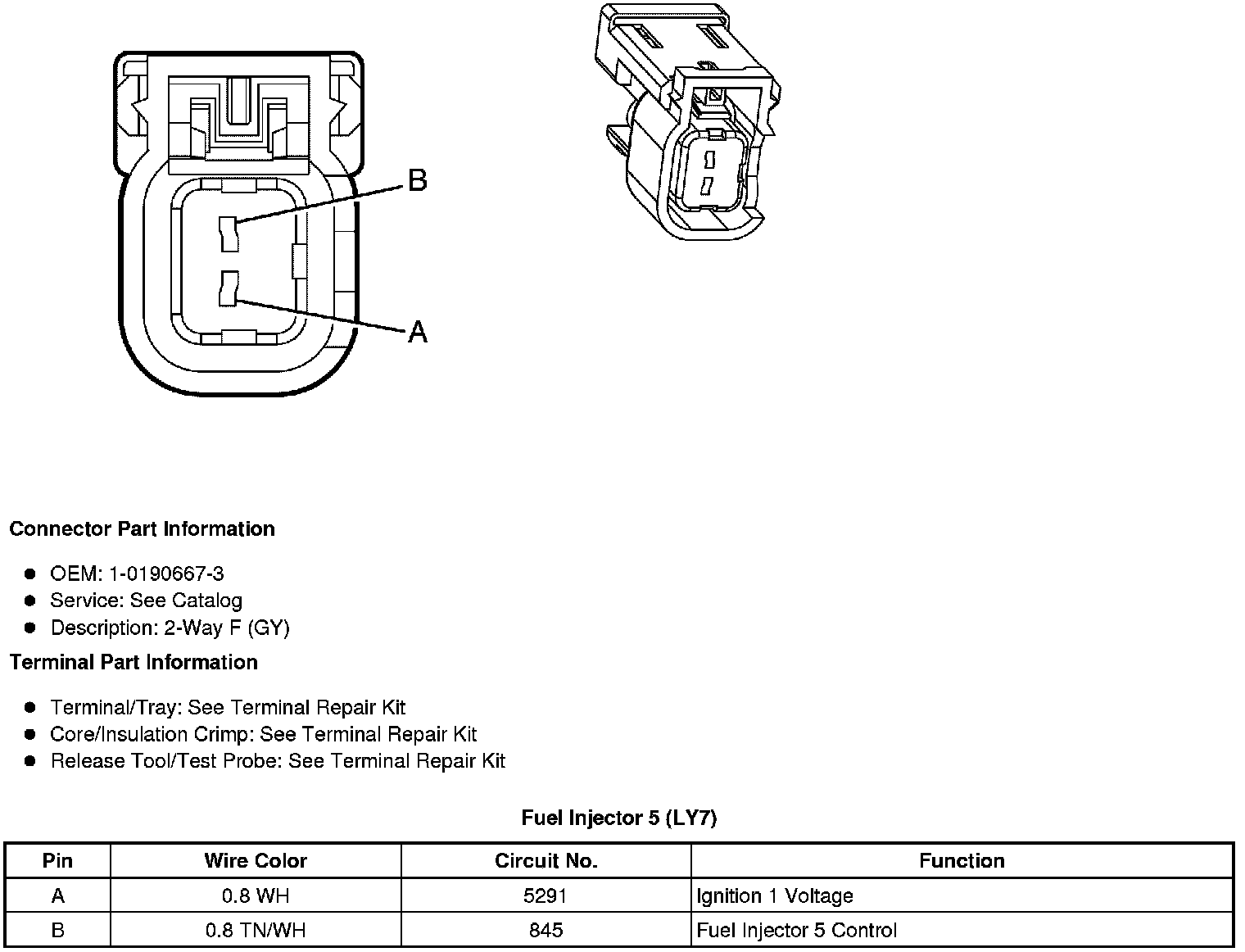

Fuel Injector 5 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)

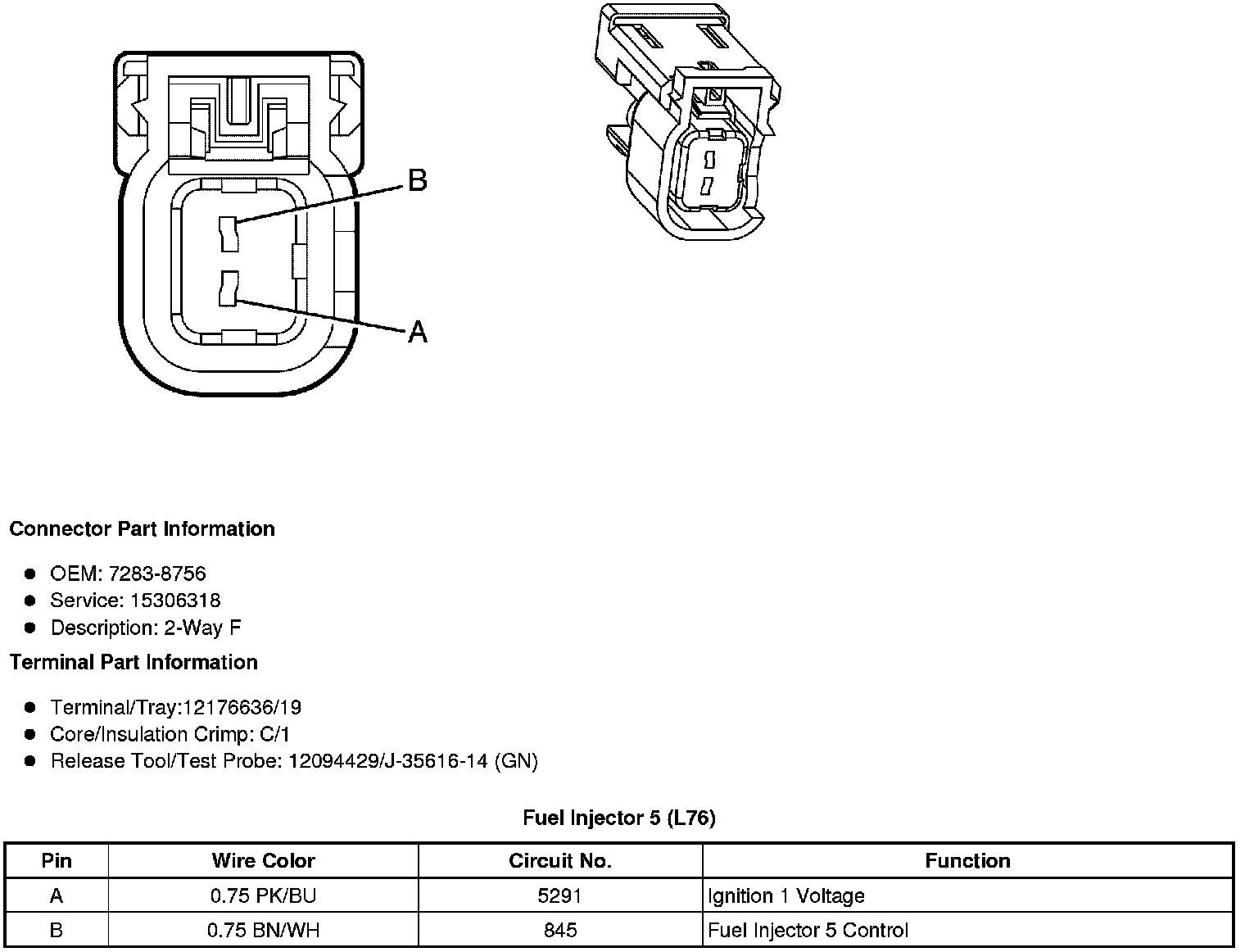

Fuel Injector 5 (L76 - Gas 8 Cyl, 6.0L SFI, V8)






Fuel Injector 6 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)






Fuel Injector 6 (L76 - Gas 8 Cyl, 6.0L SFI, V8)






Fuel Injector 7 (L76 - Gas 8 Cyl, 6.0L SFI, V8)






Fuel Injector 8 (L76 - Gas 8 Cyl, 6.0L SFI, V8)
