Connector Views
Component Connector End Views

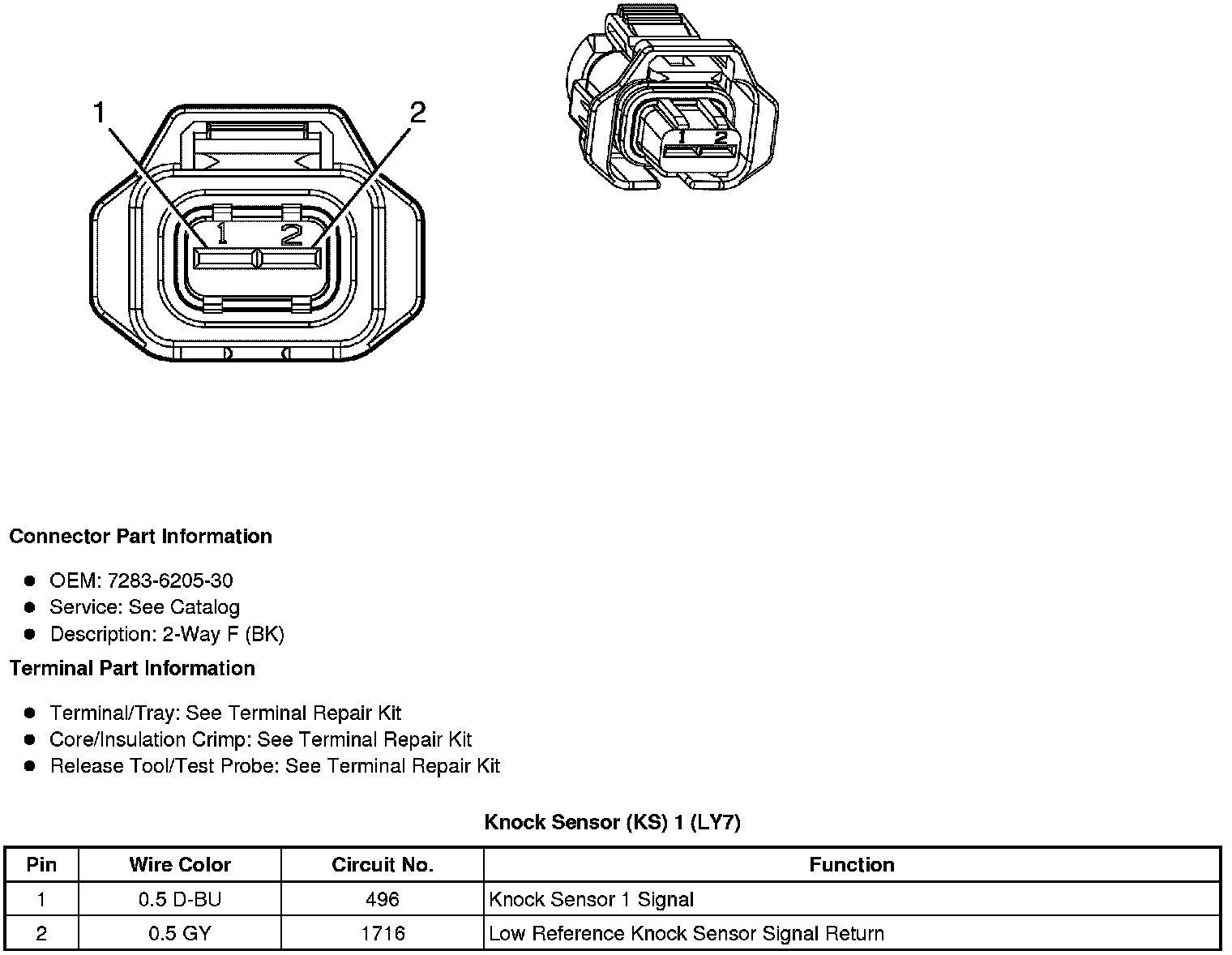

Knock Sensor (KS) 1 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
Knock Sensor (KS) 1 (L76 - Gas 8 Cyl, 6.0L SFI, V8)
Knock Sensor (KS) 2 (LY7 - Gas, 6 Cylinder, 3.6L, SFI, V6)
Knock Sensor (KS) 2 (L76 - Gas 8 Cyl, 6.0L SFI, V8)
