Instrument Panel/Center Console Component Views

Fig 1: I/P Components
GM1758089Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Multifunction Turn Signal Lever
2 TAP Shift Switch - Left
3 Hazard Warning Switch
4 Instrument Panel Cluster (IPC)
5 TAP Shift Switch - Right
6 Windshield Wiper/Washer Switch
7 Ignition Switch
8 Driver Information Center (DIC)
9 Radio
10 HVAC Control Module
11 Heated Seat Switch - Front Passenger
12 Rear Defogger Switch
13 Heated Seat Switch - Driver
14 Steering Wheel Controls - Right
15 Inflatable Restraint Steering Wheel Module
16 Tilt Steering Wheel Lever
17 Steering Wheel Controls - Left
18 Interior Lamp Switch

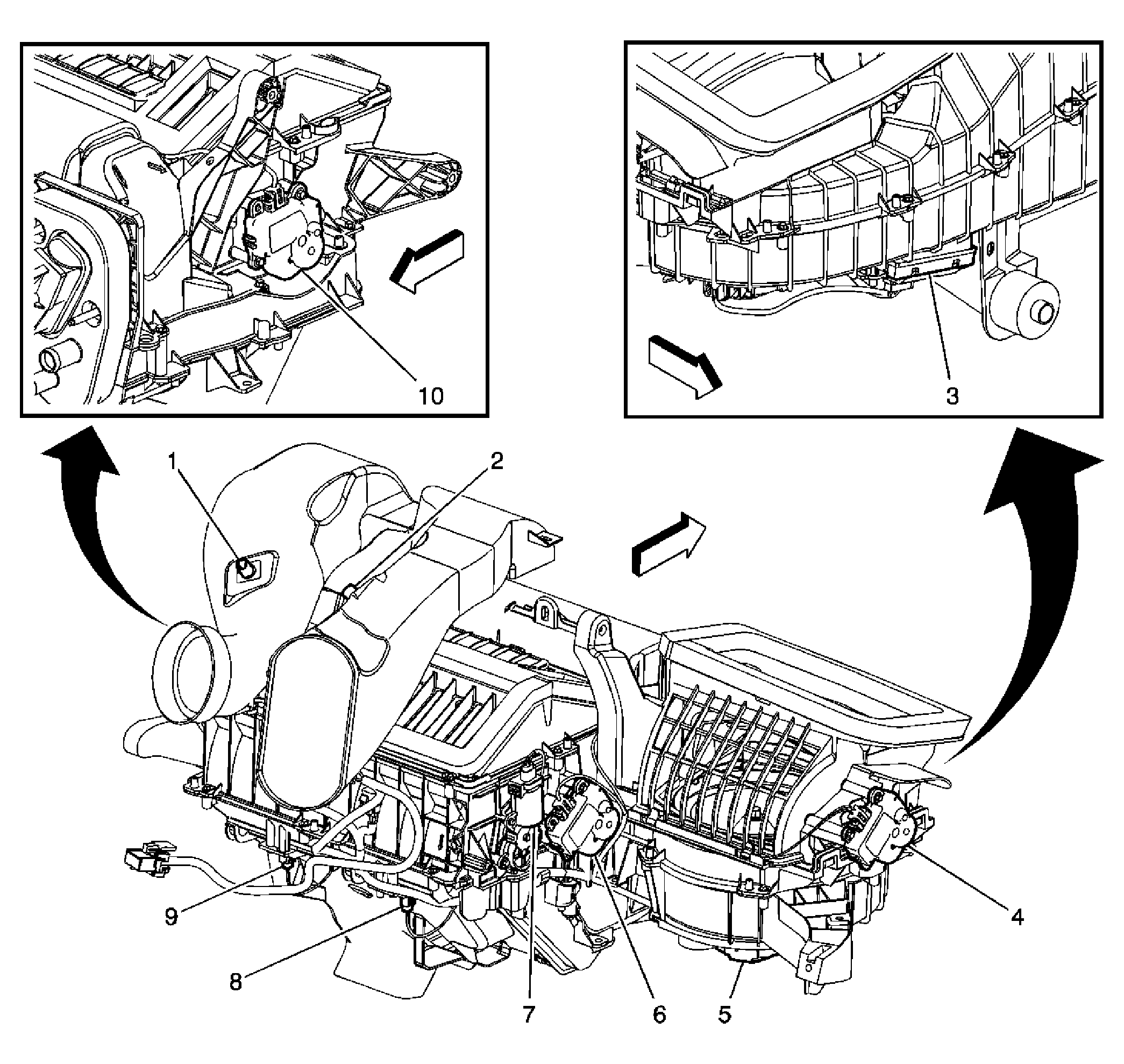

Fig 2: HVAC Case Components
GM1907786Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Temperature Sensor - Upper Left
2 Air Temperature Sensor - Upper Right
3 Blower Motor Control Processor
4 Actuator Temperature Valve
5 Blower Motor
6 Actuator Temperature Valve
7 Actuator Mode
8 Air Temperature Sensor - Lower Right
9 Air Temperature Sensor - Lower Left
10 Actuator Temperature Valve

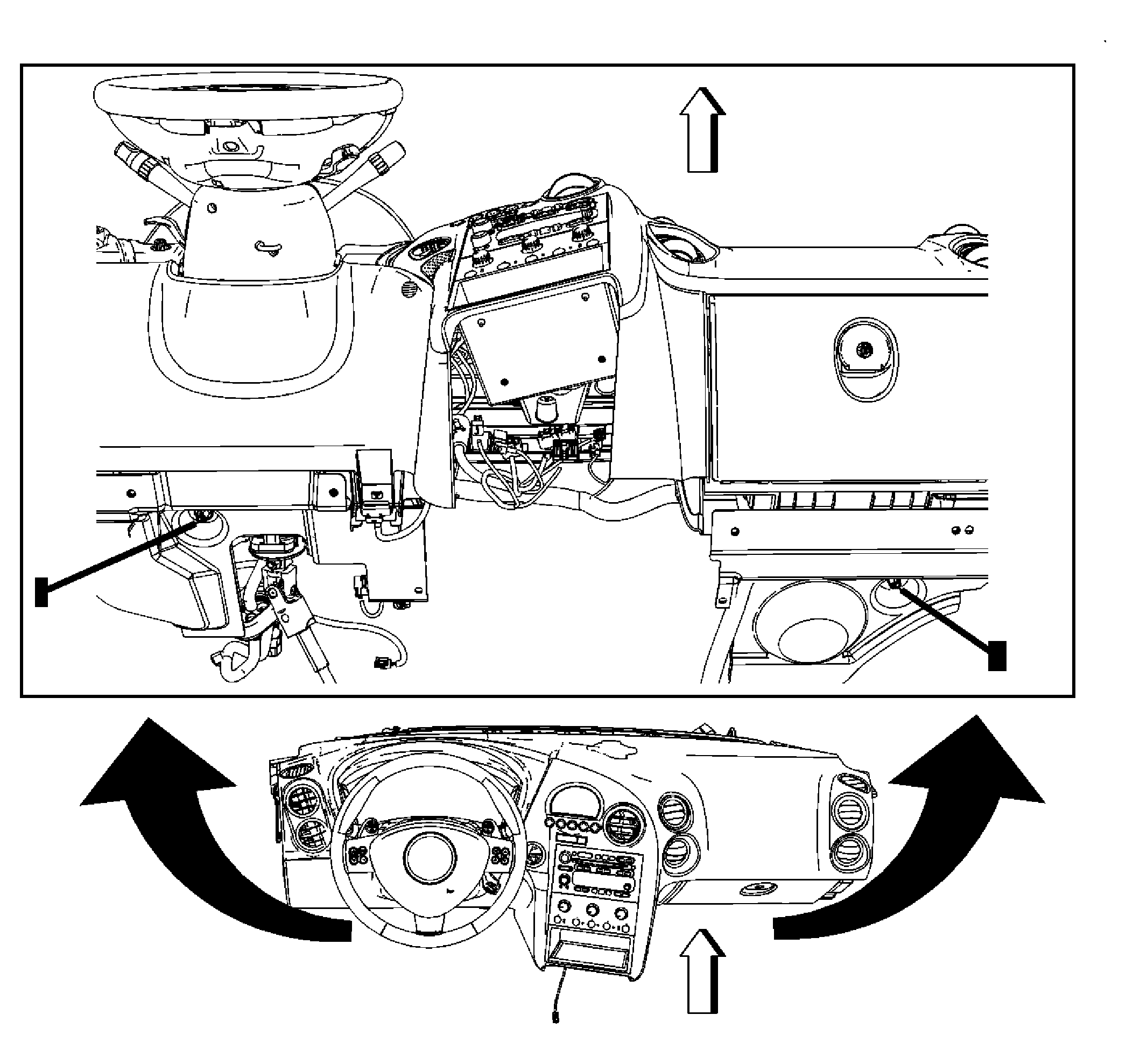

Fig 3: Lower Center of I/P Components
GM1906220Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Courtesy Lamp - Left
2 I/P Courtesy Lamp - Right

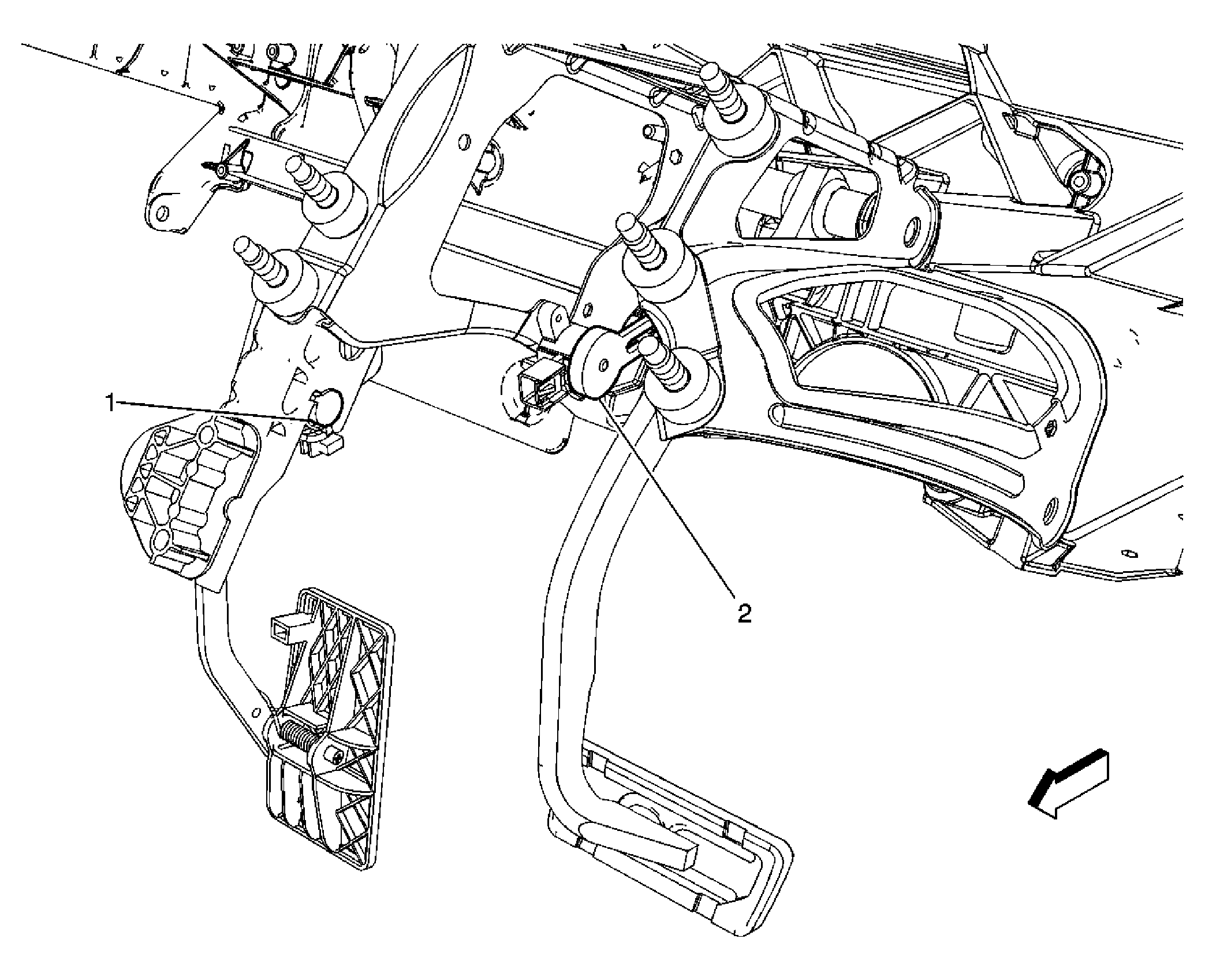

Fig 4: Lower Left of the I/P Components
GM1906165Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accelerator Pedal Position (APP) Sensor
2 Brake Pedal Position Sensor

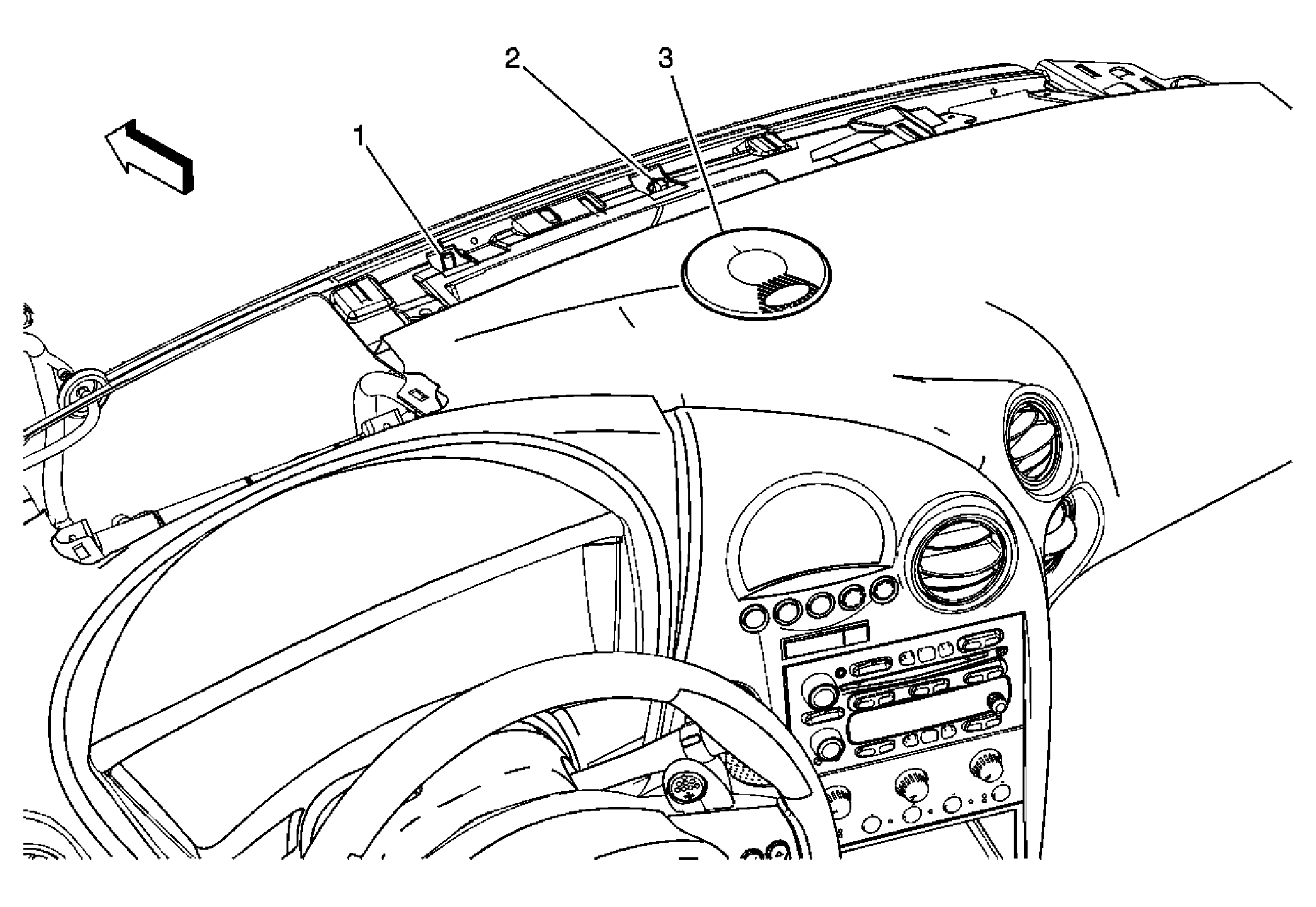

Fig 5: Upper Center Of The I/P Components
GM1906118Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Theft LED
2 Ambient Light Sensor (C67) and Sunload Sensor Assembly (CJ2)
3 Speaker - Center (U87)

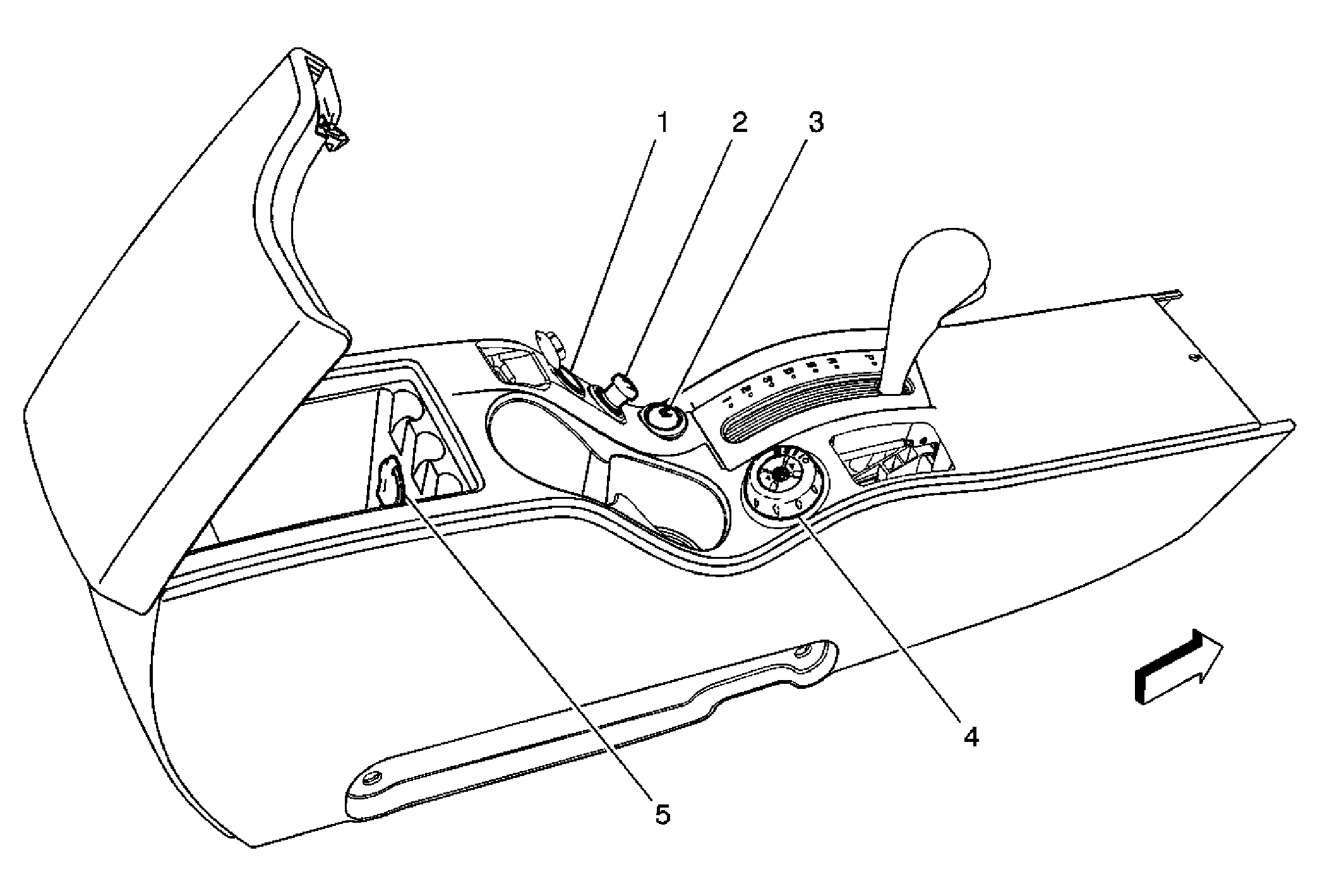

Fig 6: Floor Console Components
GM1906112Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Accessory Power Outlet - Front
2 Audio Amplifier (U87)
3 Traction Control Switch
4 Head Up Display (HUD) Switch (UV6)
5 Accessory Power Outlet - Rear

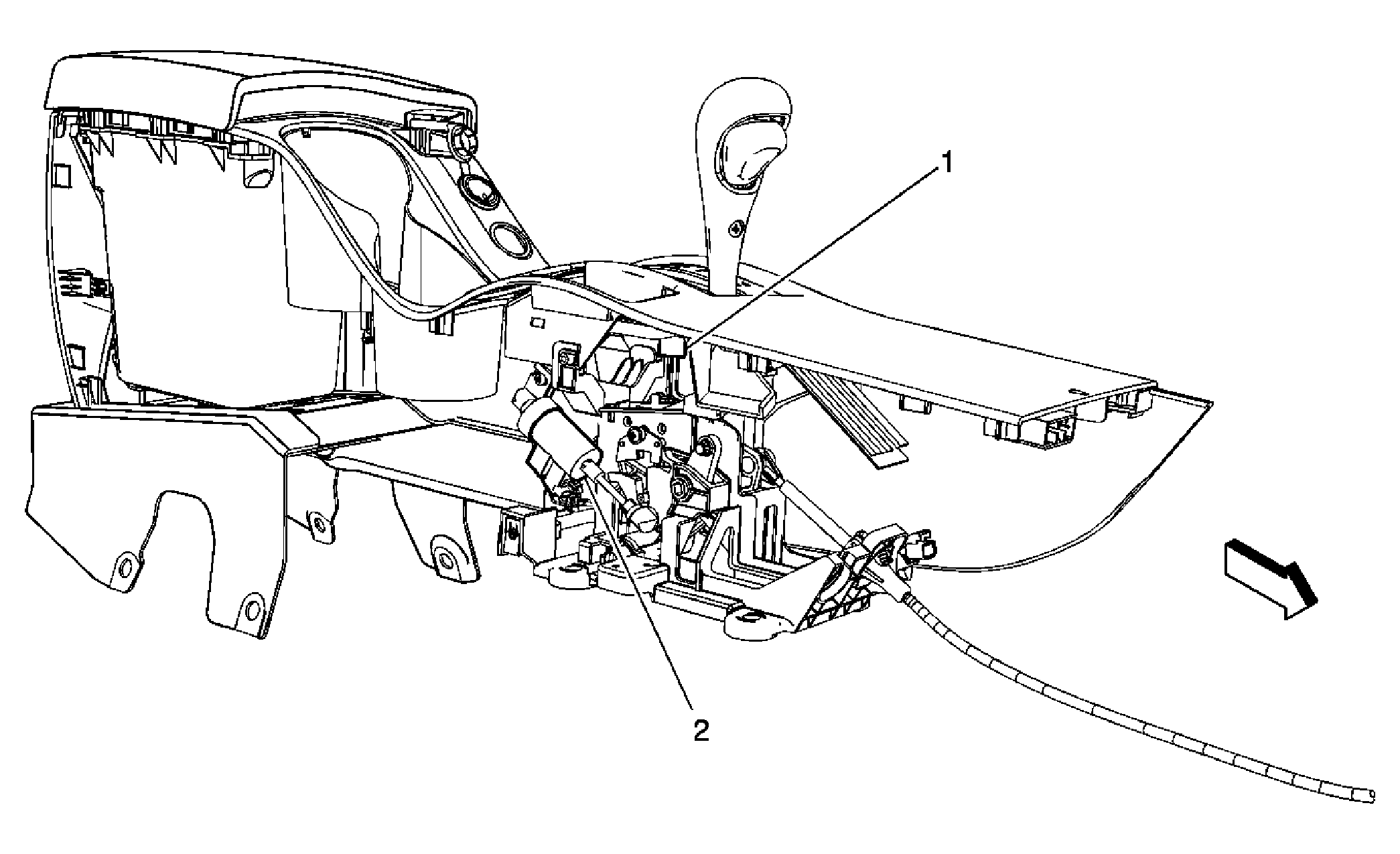

Fig 7: Floor Console Components
GM1906124Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 PRNDL Lamp
2 A/T Shift Lock Control Sensor
