Installation Procedure

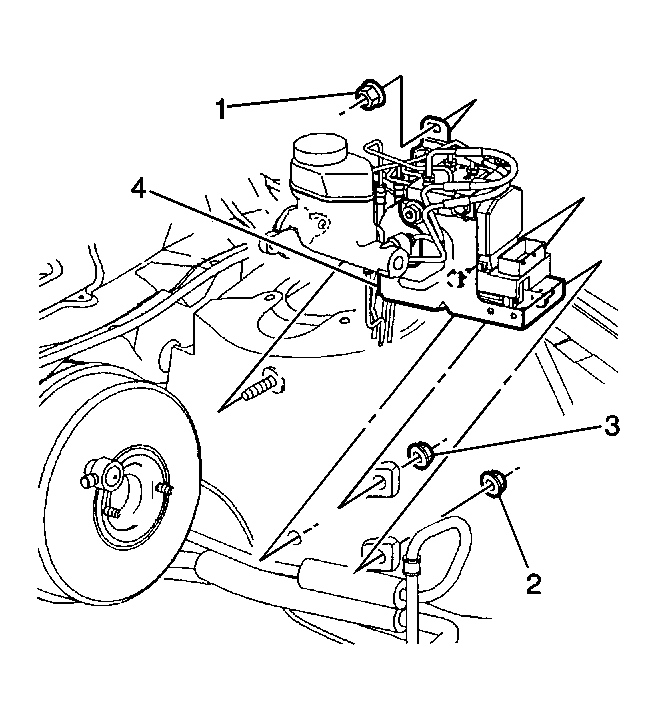

Fig 1: View Of BPMV Bracket Nuts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the 3 BPMV bracket nuts (1, 2, and 3) to the studs on the BPMV bracket (4).
Tighten: Tighten the 3 BPMV bracket nuts to 10 N.m (7 lb ft).
Install the BPMV and EBCM as an assembly to the BPMV bracket. Refer to Brake Pressure Modulator Valve Replacement .
Turn the ignition switch to the RUN position.
Perform the Diagnostic Starting Point - Antilock Brake System .
