Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

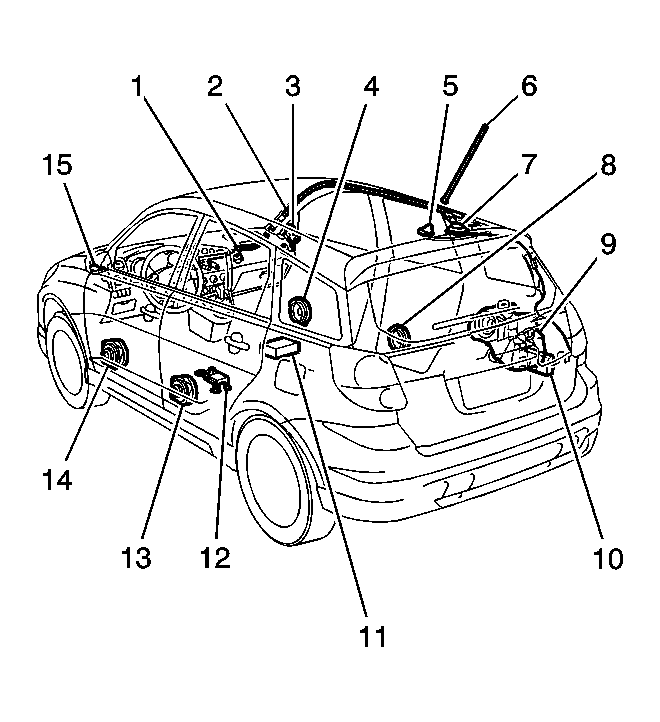

Fig 1: Entertainment Component Views
GM1671290Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio Antenna Front Harness
2 Radio Antenna Rear Harness
3 Front RH Door Upper Speaker
4 Front RH Door Lower Speaker
5 Antenna Base Assembly
6 Antenna Mast
7 XM Digital Radio Receiver Antenna
8 Rear RH Door Speaker
9 Sub Woofer Module
10 XM Digital Radio Receiver
11 Audio Amplifier
12 Voltage Inverter Assembly
13 Rear LH Door Speaker
14 Front LH Door Lower Speaker
15 Front LH Door Upper Speaker
Fig 2: View Of OnStar
GM1488598Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Communication Interface Module C1
2 Vehicle Interface Unit Connector
3 Vehicle Interface Unit
4 Vehicle Communication Interface Module
5 C303
6 Vehicle Communication Interface Module C2
Fig 3: Onstar Rearview Mirror
GM1501954Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside rear view mirror
1 Automatic dimming photocell
1 Onstar indicator light
1 Emergency button
1 Onstar button
1 Call button
1 Electrochromatic mirror button
1 Cellular Microphone
