Digital Radio Receiver
WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

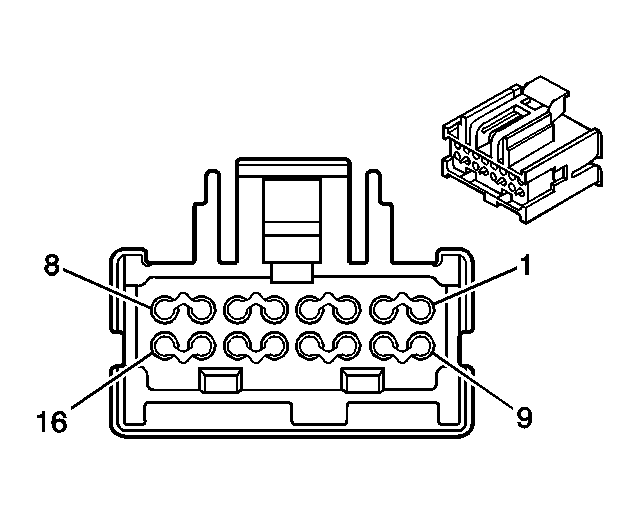

Connector Part Information
|
Digital Radio Receiver
| Pin | Wire | Function |
|---|---|---|
| 1 | - | Not Used |
| 2 | BN/WH | Remote Radio Left Audio Signal |
| 3 | D-GN/WH | Remote Radio Right Audio Signal |
| 4-8 | - | Not Used |
| 9 | BK/WH | Ground |
| 10 | BK/WH | Audio Common |
| 11 | BARE | Drain Wire |
| 12-14 | - | Not Used |
| 15 | PU | Class 2 Serial Data |
| 16 | OG | Battery Positive Voltage |
