Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the antenna.

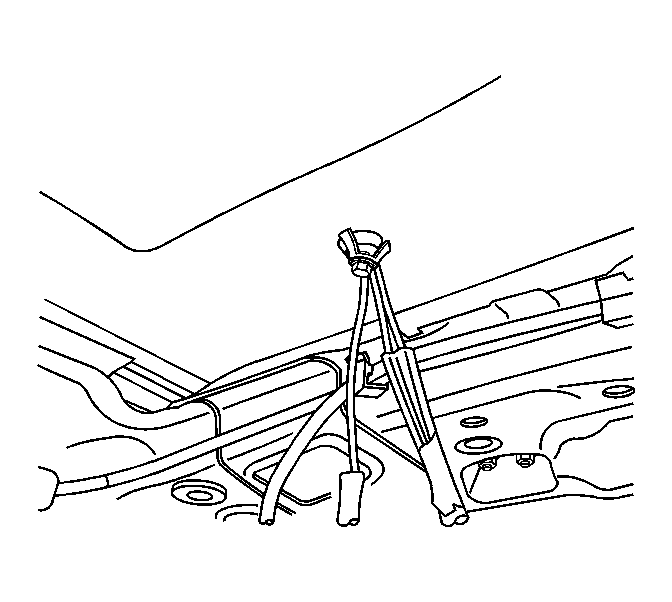

    2. Fig 1: Locating Antenna Mounting Bracket & Bolt
    GM1528409Courtesy of GENERAL MOTORS CORP.
    NOTE: Fastener Notice .
  2. Install the antenna mounting bracket and mounting bracket bolt.

    Tighten:  Tighten the antenna mounting bracket bolt to 6 N.m (53 lb in).

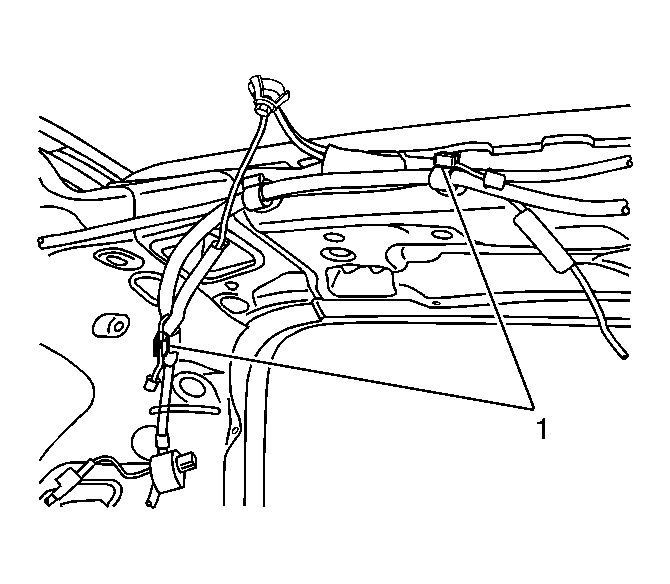

    3. Fig 2: Locating Antenna Harness & Retaining Clips
    GM1528406Courtesy of GENERAL MOTORS CORP.
  3. Install the antenna harness in the antenna harness retaining clips (1).

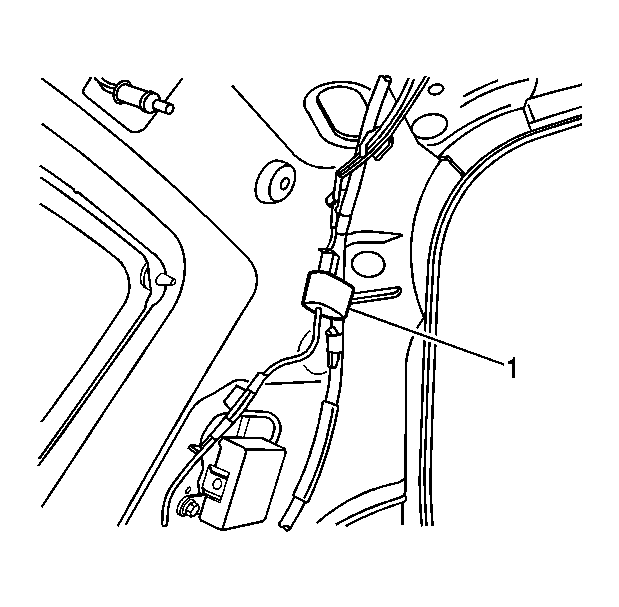

    4. Fig 3: Locating Antenna Connector
    GM1528404Courtesy of GENERAL MOTORS CORP.
  4. Connect 1 antenna connector (1).

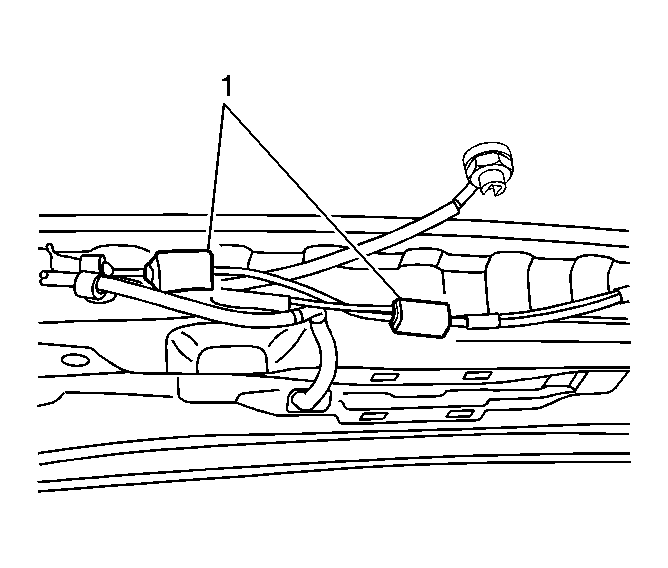

    5. Fig 4: Identifying Antenna Connectors
    GM1528403Courtesy of GENERAL MOTORS CORP.
  5. Connect 2 antenna connectors (1).
  6. Install the headliner. Refer to Headlining Trim Panel Replacement .
