Installation Procedure
WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
- Install the 2 nuts (1, 2) securing the bracket to the receiver, install the bracket if necessary.
Tighten: Tighten the nuts to 10 N.m (89 lb in).
- Connect the 2 electrical connectors (1, 2).
- Install the XM receiver.

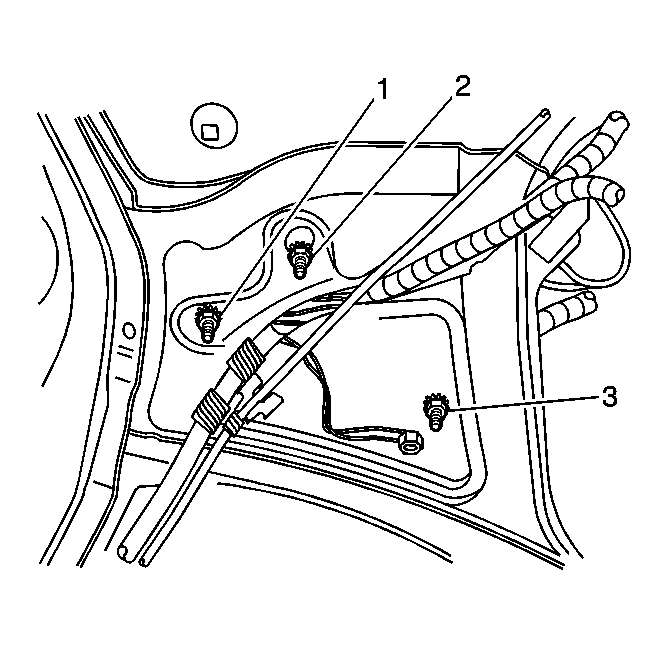

- Install the 3 nuts (1, 2, 3) securing the receiver.
Tighten: Tighten the nuts to 6 N.m (53 lb in)
- Install the rear quarter upper trim panel. Refer to Rear Quarter Upper Trim Panel Replacement .
- Perform the setup procedure for the digital radio receiver. Refer to Control Module References for programming and setup information.
- Turn the radio ON, tune to the XM channel 0, and record the radio ID from the radio.
The ID will be needed for activation of the new receiver.
- Call XM Radio at 1-800-556-3600 to deactivate the faulty receiver and activate the new receiver.
- Park the vehicle outside in an area with an unobstructed view of the southern sky.
- Leave the vehicle outside with the ignition switch in the ACC position with the radio turned ON for 30 minutes to activate XM service.
- Once activated the radio will receive XM Radio channels.
NOTE:
Refer to Fastener Notice
.
IMPORTANT:
After replacement of a XM Radio receiver, call XM Radio to deactivate the receiver that has been removed from the vehicle and activate the new XM Radio receiver.
The vehicle must be parked outside in an open area within 24 hours after an activation call.
The vehicle must be parked outside in an open area within 24 hours after an activation call.
