Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

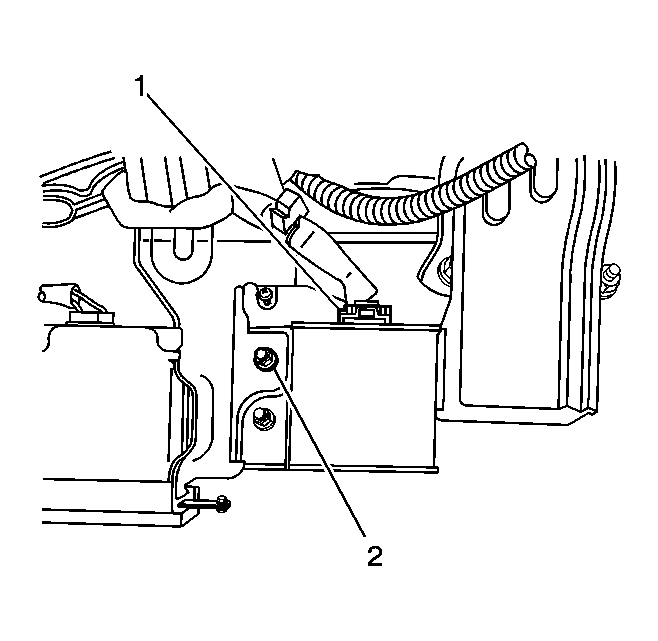

Fig 1: View Of Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Position the vehicle interface unit module.

NOTE: Refer to FASTENER NOTICE .

Install interface unit module retaining nut (2).
Tighten: Tighten the power control module bolts to 7 N.m (62 lb in).
Connect the vehicle interface unit module electrical connector (1).
Install the communication interface module. Refer to Communication Interface Module Replacement .
