Front of Vehicle/Engine Compartment Component Views

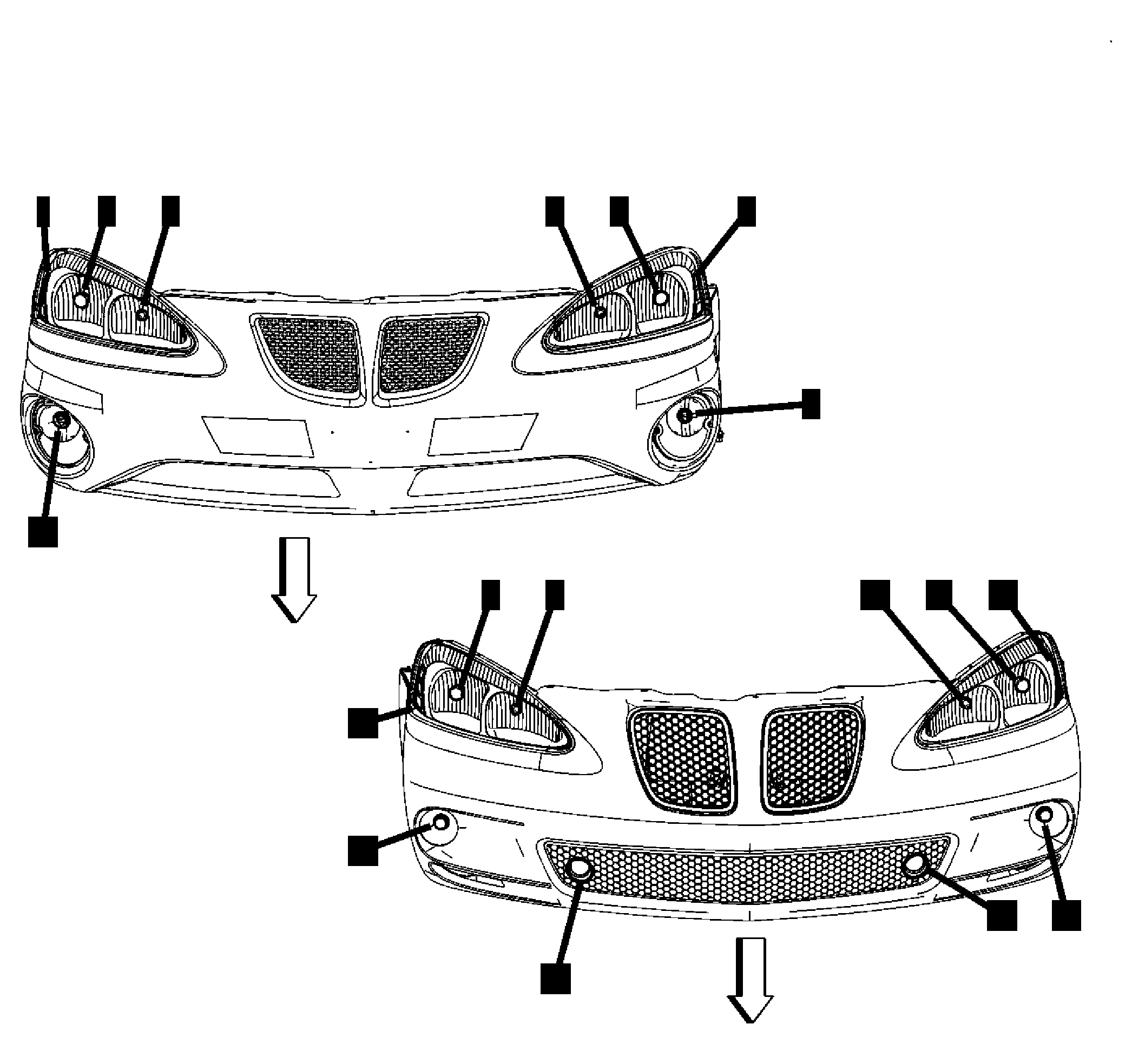

| Callout | Component Name |
|---|---|
| 1 | Marker Lamp - RF |
| 2 | Headlamp Low Beam - Right |
| 3 | Headlamp High Beam - Right |
| 4 | Headlamp High Beam - Left |
| 5 | Headlamp Low Beam - Right |
| 6 | Marker Lamp - LF |
| 7 | Park/Turn Signal/ Fog Lamp - LF (L26/L32) |
| 8 | Headlamp Low Beam - Right |
| 9 | Headlamp High Beam - Right |
| 10 | Headlamp High Beam - Left |
| 11 | Headlamp Low Beam - Left |
| 12 | Marker Lamp - LF |
| 13 | Park/Turn Signal Lamp - LF (LS4) |
| 14 | Fog Lamp - LF (LS4) |
| 15 | Fog Lamp - RF (LS4) |
| 16 | Park/Turn Signal Lamp - RF (LS4) |
| 17 | Marker Lamp - RF |
| 18 | Park/Turn Signal/Fog Lamp -RF (L26/L32) |

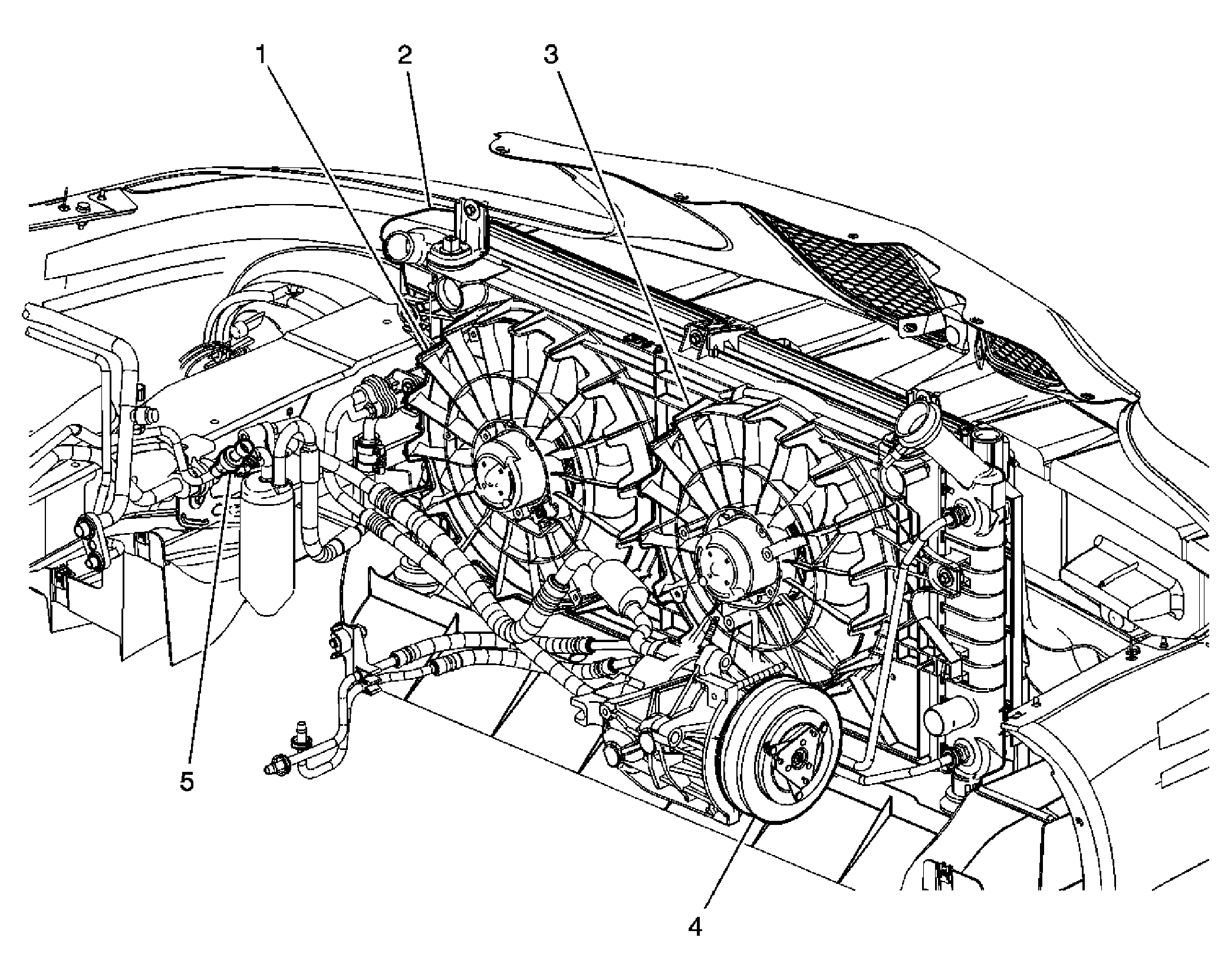

| Callout | Component Name |
|---|---|
| 1 | Cooling Fan - Left |
| 2 | Radiator |
| 3 | Cooling Fan - Right |
| 4 | A/C Compressor Clutch |
| 5 | A/C Refrigerant Pressure Switch |

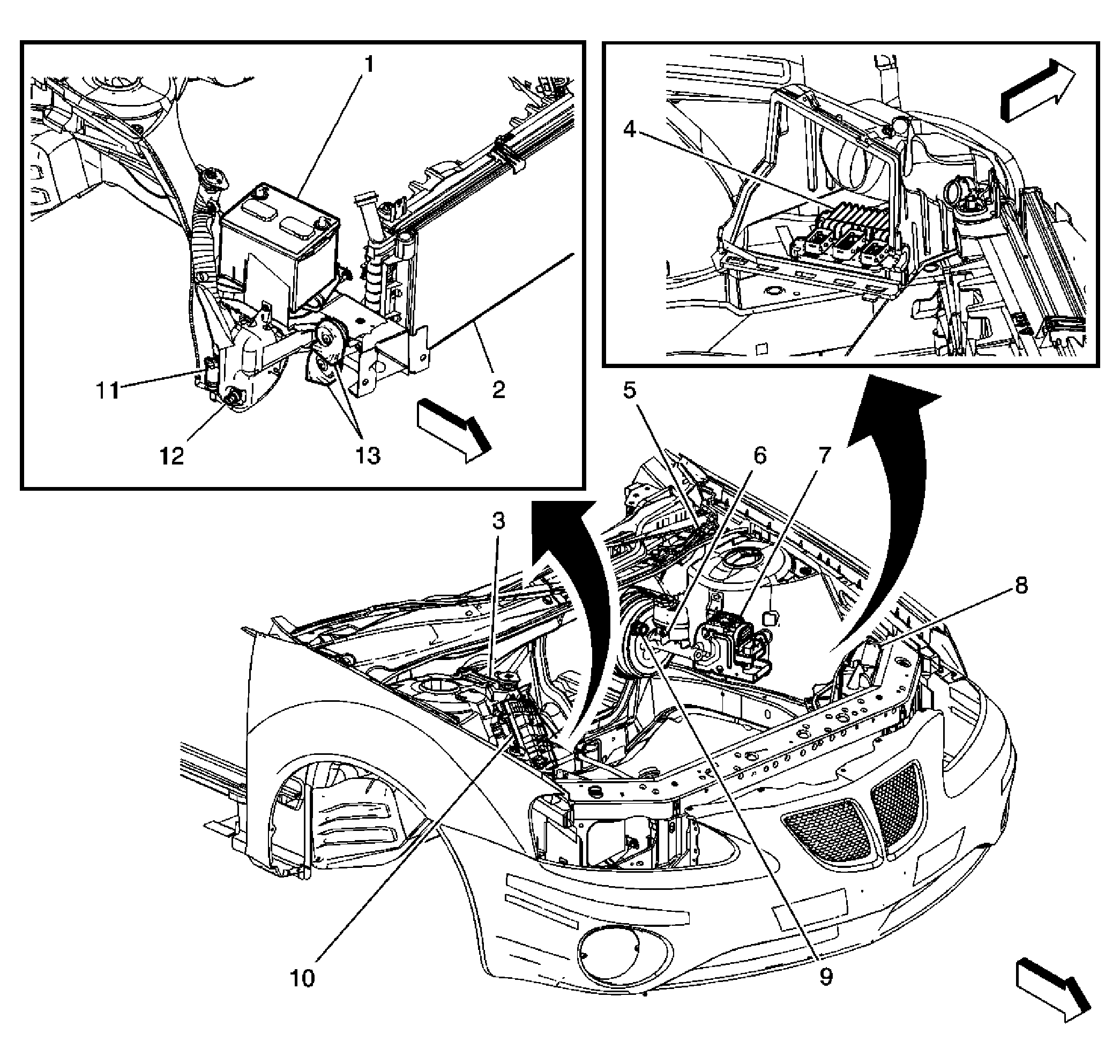

| Callout | Component Name |
|---|---|
| 1 | Battery |
| 2 | Condensor Radiator Fan Module (CRFM) |
| 3 | Reservoir Coolant Recovery |
| 4 | Engine Control Module (ECM) |
| 5 | Windshield Wiper Motor |
| 6 | Brake Fluid Level Switch |
| 7 | Electronic Brake Control Module (EBCM) |
| 8 | Air Induction |
| 9 | Brake Booster Vacuum Sensor |
| 10 | Fuse Block - Underhood |
| 11 | Windshield Washer Fluid Pump |
| 12 | Windshield Washer Fluid Level Switch |
| 13 | Horn Assembly |

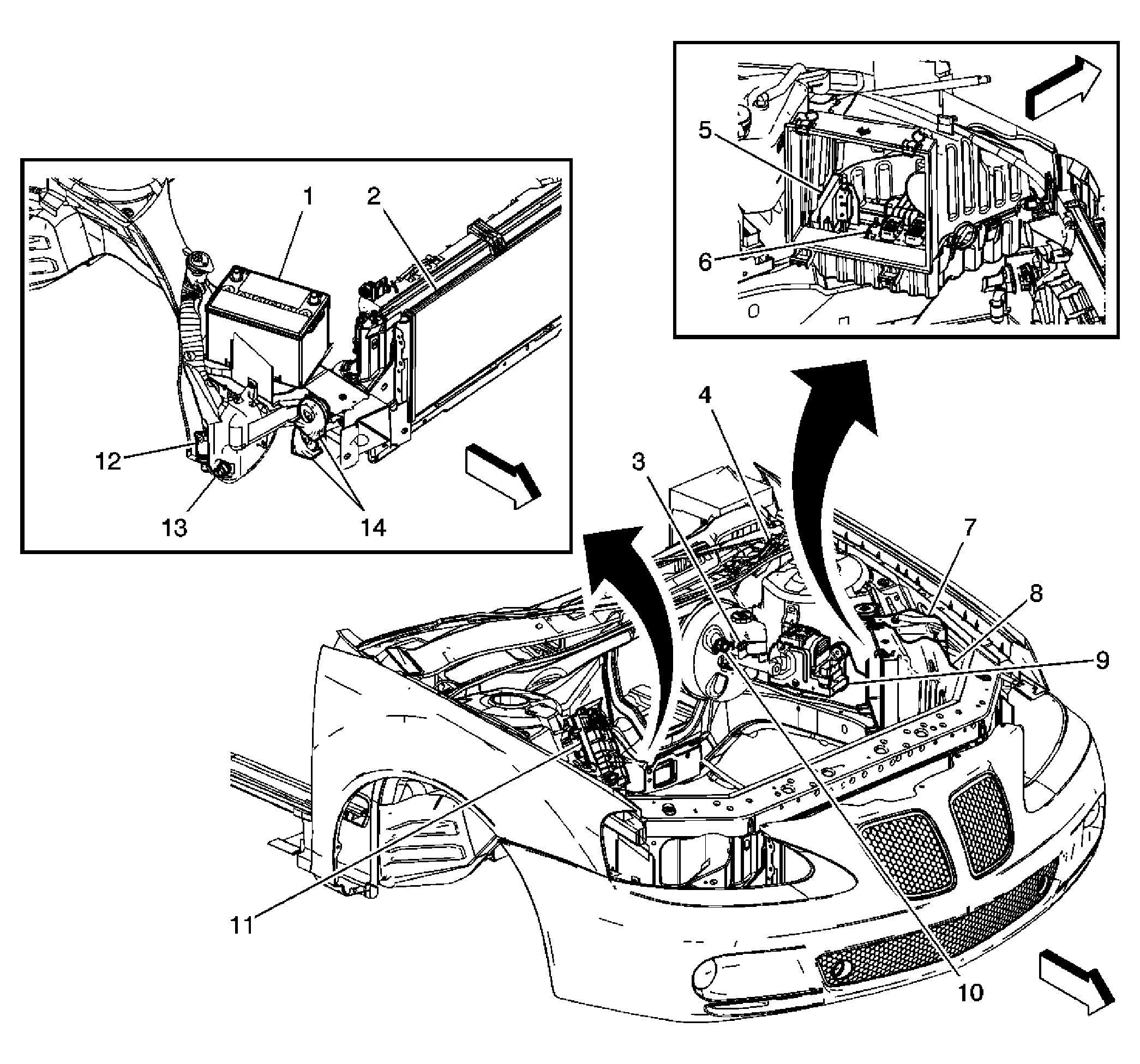

| Callout | Component Name |
|---|---|
| 1 | Battery |
| 2 | Condensor Radiator Fan Module (CRFM) |
| 3 | Brake Fluid Level Switch |
| 4 | Windshield Wiper Moter |
| 5 | Transmission Control Module (TCM) |
| 6 | Engine Control Module (ECM) |
| 7 | Reservoir Coolant Recovery |
| 8 | Air Induction |
| 9 | Electronic Brake Control Module (EBCM) |
| 10 | Brake Booster Vacuum Sensor |
| 11 | Fuse Block - Underhood |
| 12 | Windshield Washer Fluid Pump |
| 13 | Windshield Washer Fluid Level Switch |
| 14 | Horn Assembly |
