Connector Views

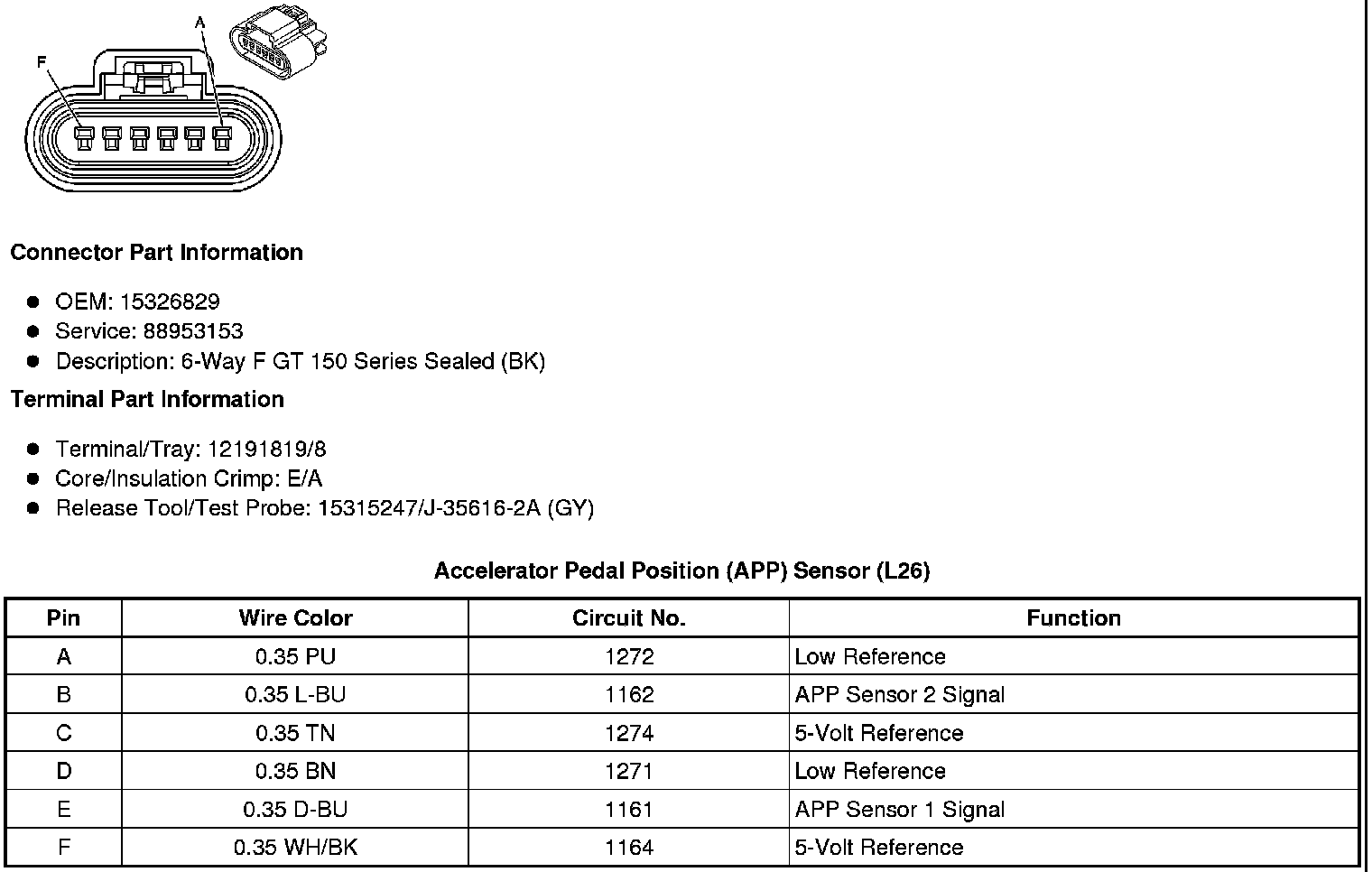

Accelerator Pedal Position (APP) Sensor (L26)

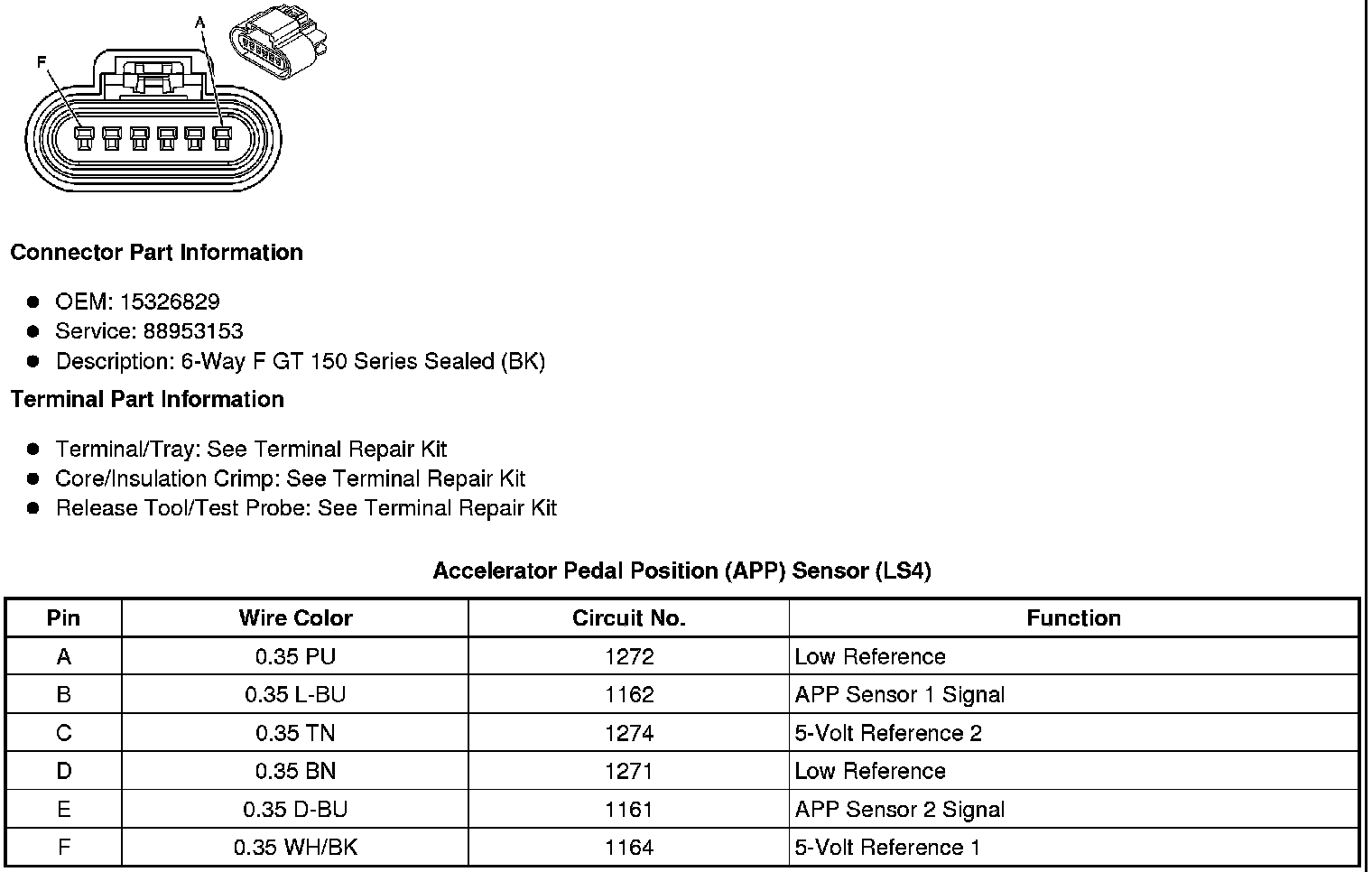

Accelerator Pedal Position (APP) Sensor (LS4 - 5.3L)






Accelerator Pedal Position (APP) Sensor (L26)






Accelerator Pedal Position (APP) Sensor (LS4 - 5.3L)
