Remote Control Door Lock Receiver Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

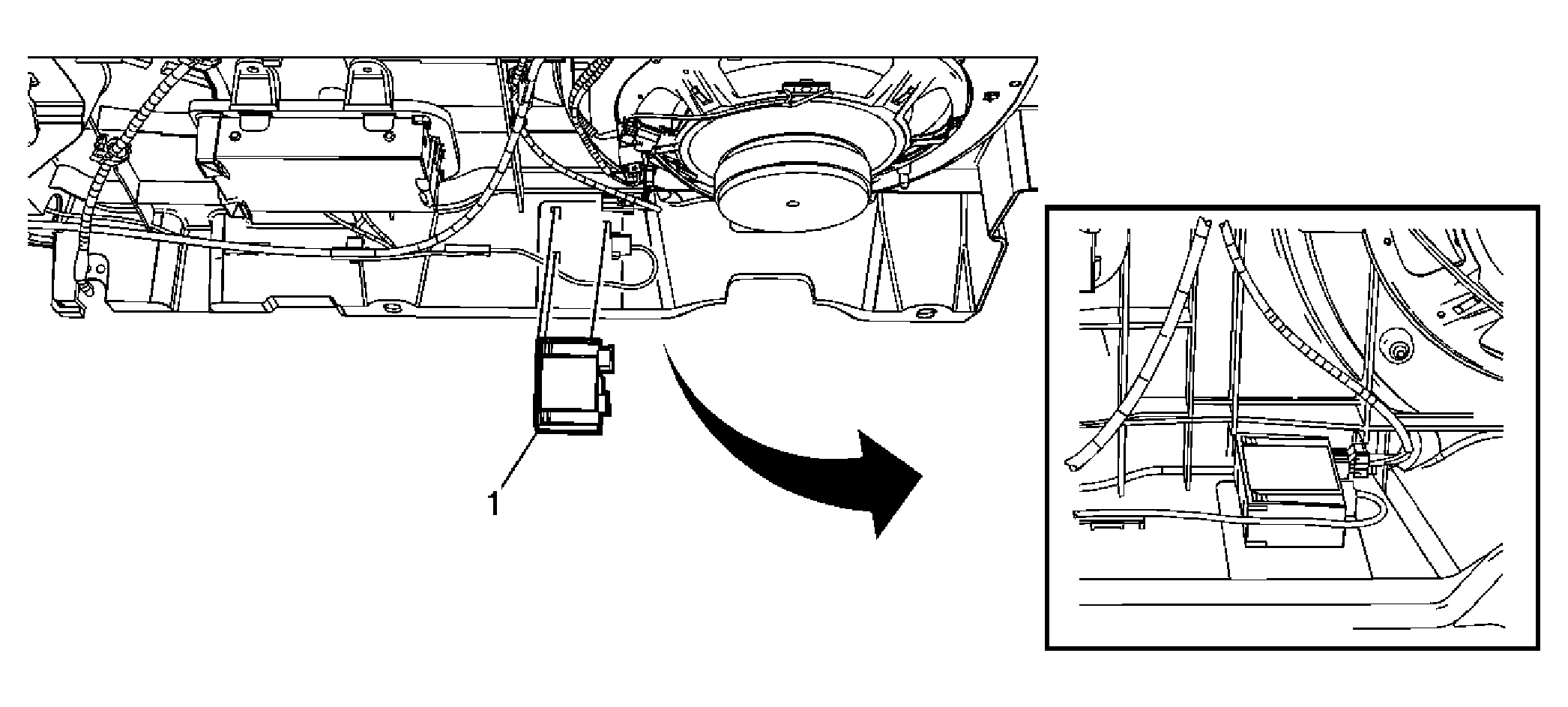

Fig 1: View Of Remote Control Door Lock Receiver

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front compartment trim panel. Refer to Rear Compartment Front Trim Panel Replacement .
1	Remote Control Door Lock Module Procedures The module is secured with three integral tabs, pull away from the bracket to remove. Disconnect the electrical connector. Reprogram the remote control door lock module after installation. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure:
Remove the front compartment trim panel. Refer to Rear Compartment Front Trim Panel Replacement .

Remote Control Door Lock Module

Procedures

The module is secured with three integral tabs, pull away from the bracket to remove.
Disconnect the electrical connector.
Reprogram the remote control door lock module after installation. Refer to Control Module References .
