Body Control System Schematics

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

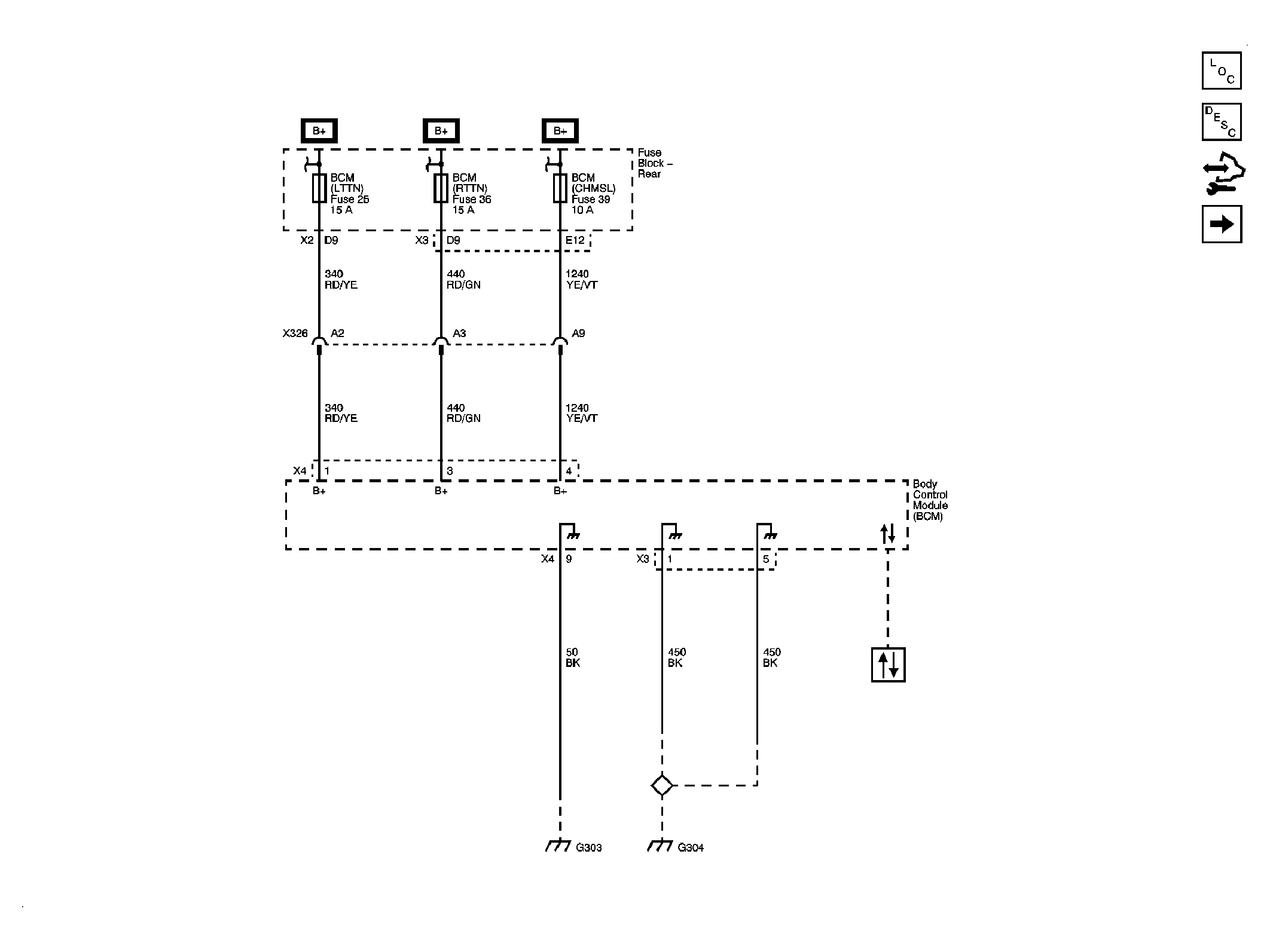

Fig 1: BCM Power, Ground & DLC Schematic

Courtesy of GENERAL MOTORS CORP.

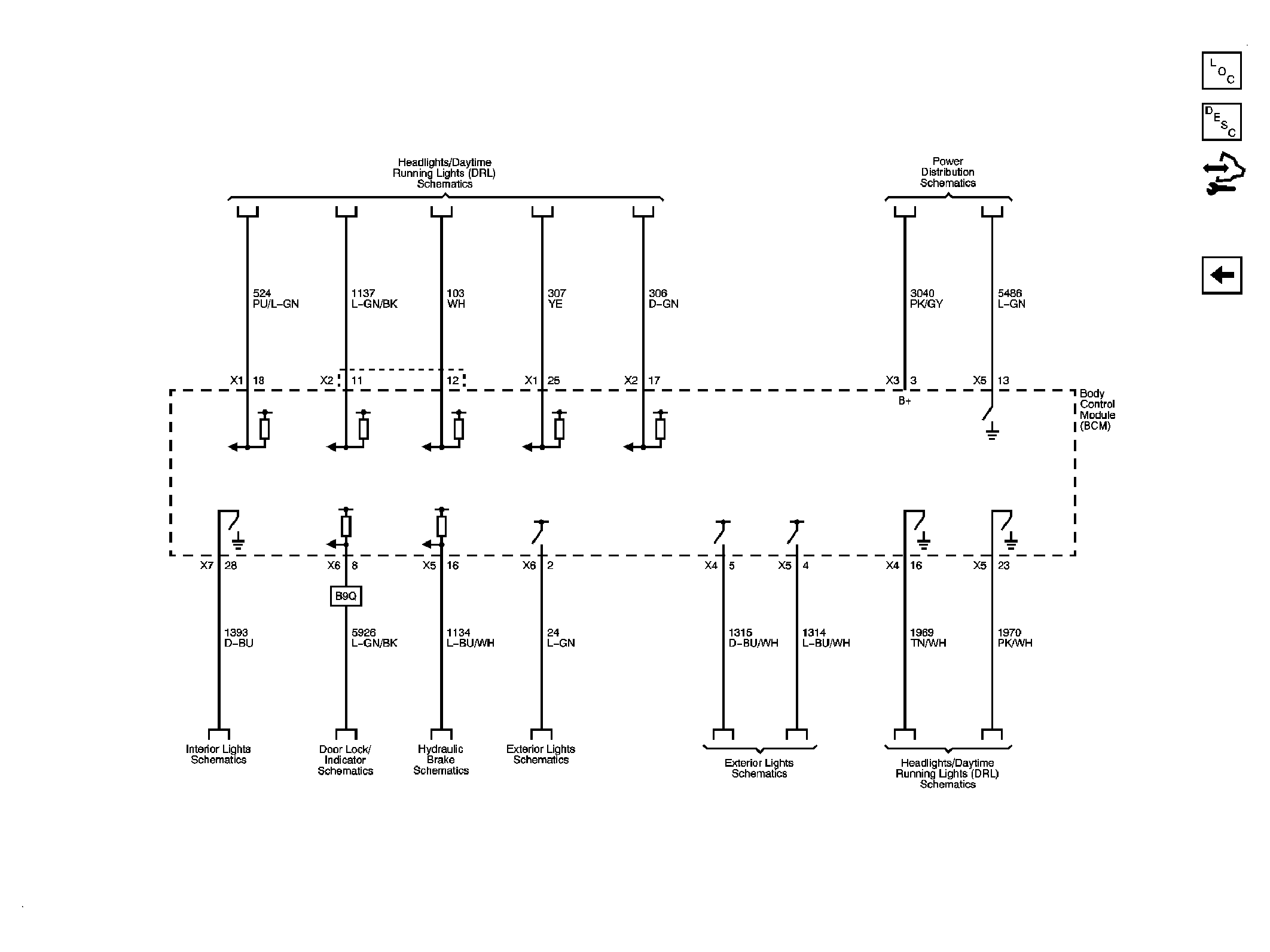

Fig 2: BCM Inputs & Outputs Schematic 1 of 4

Courtesy of GENERAL MOTORS CORP.

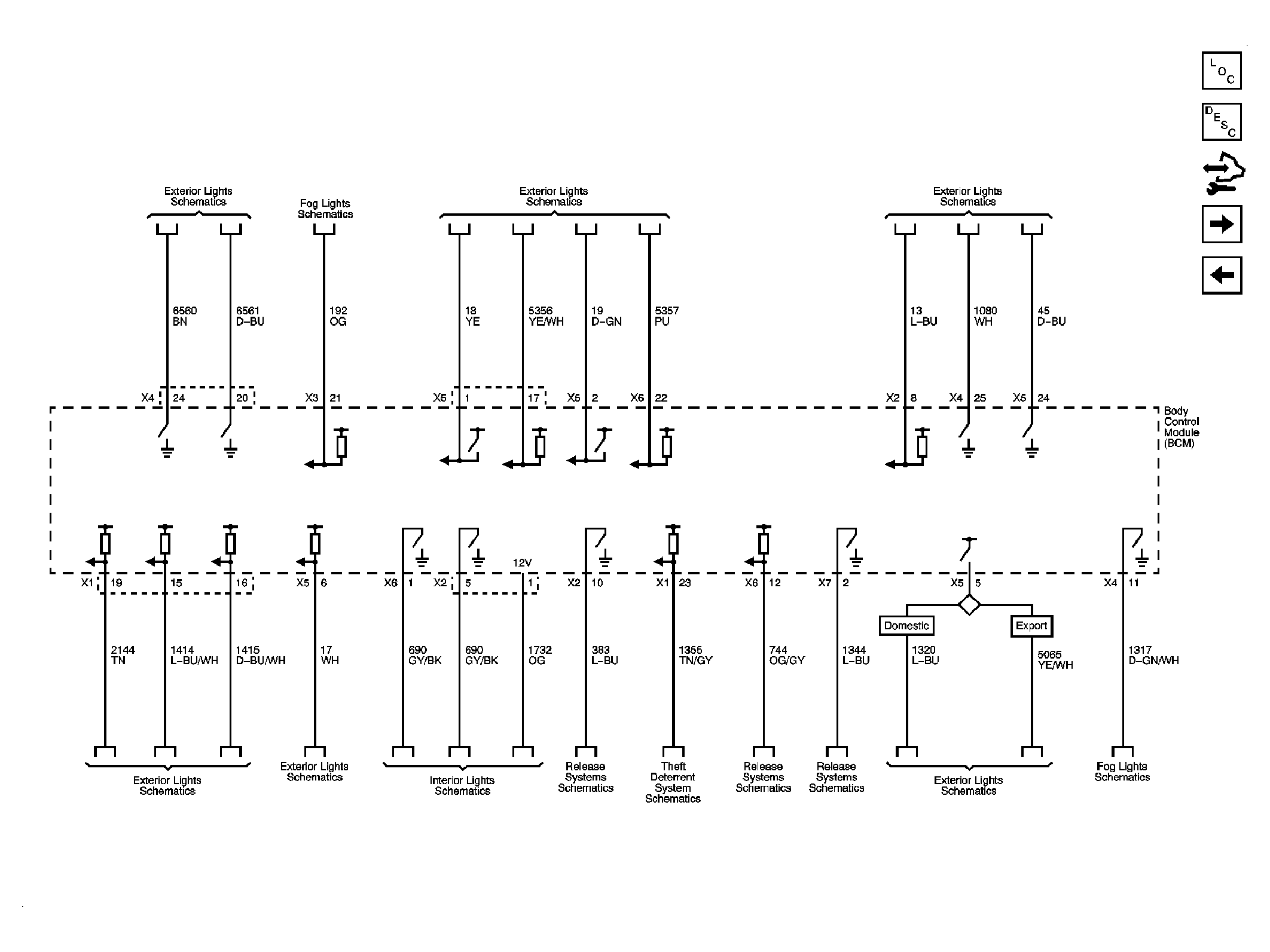

Fig 3: BCM Inputs & Outputs Schematic 2 of 4

Courtesy of GENERAL MOTORS CORP.

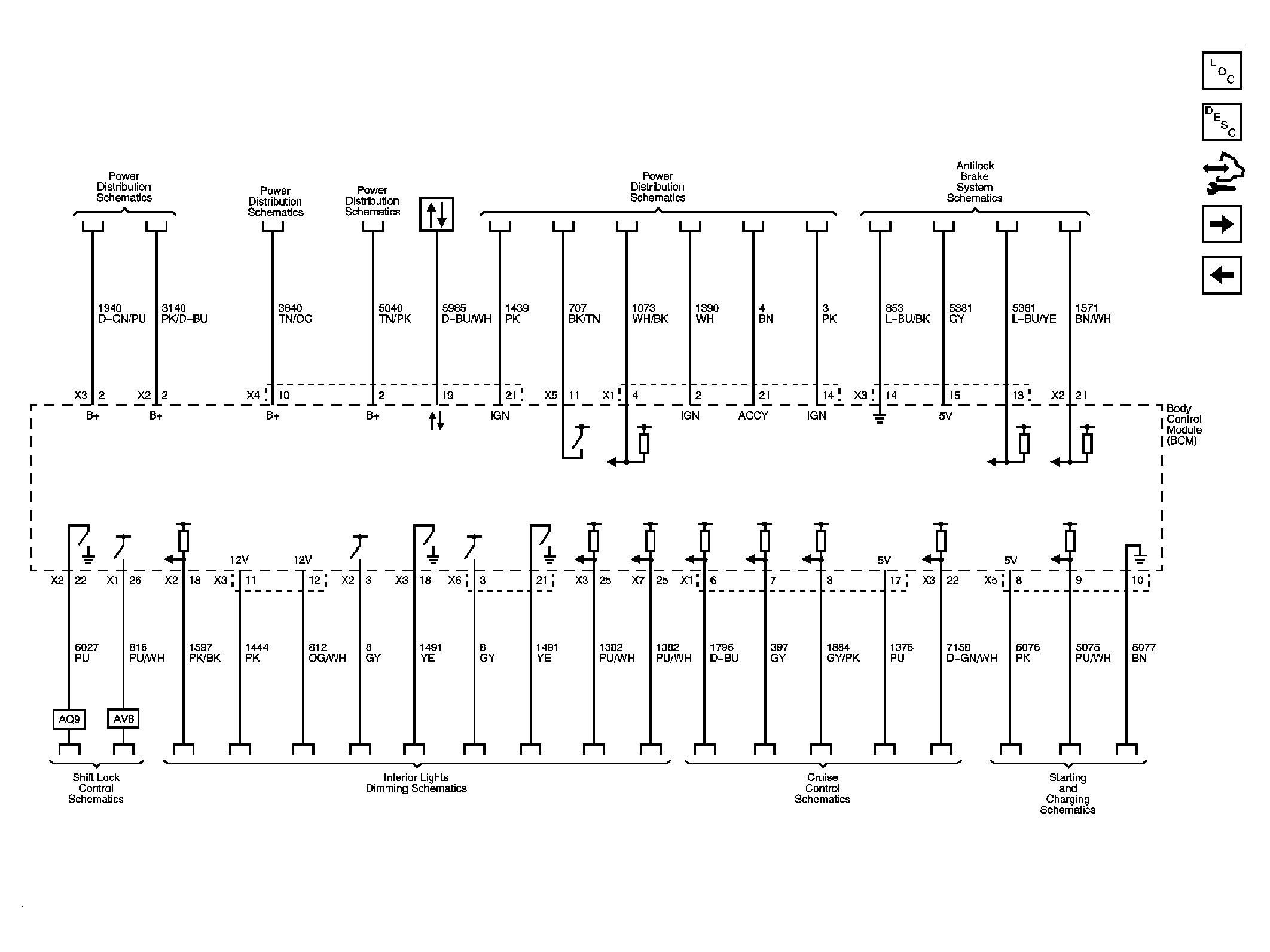

Fig 4: BCM Inputs & Outputs Schematic 3 of 4

Courtesy of GENERAL MOTORS CORP.

Fig 5: BCM Inputs & Outputs Schematic 4 of 4

Courtesy of GENERAL MOTORS CORP.
