Body Control System Schematics

WARNING: This page is about a different car, the 2008 Pontiac G5 and 2008 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

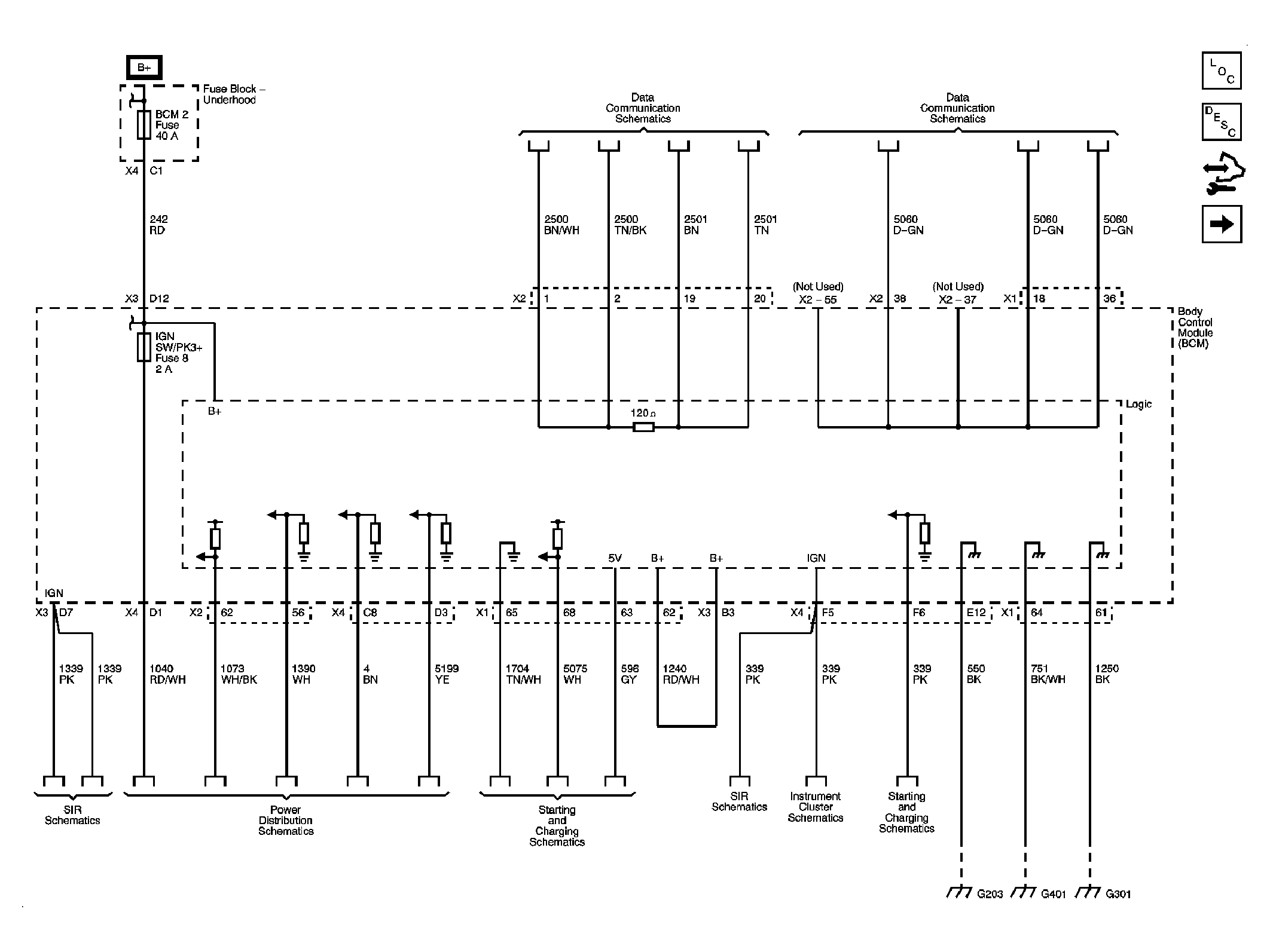

Fig 1: Power, Ground, Communication, References Schematic (1 of 5)

Courtesy of GENERAL MOTORS CORP.

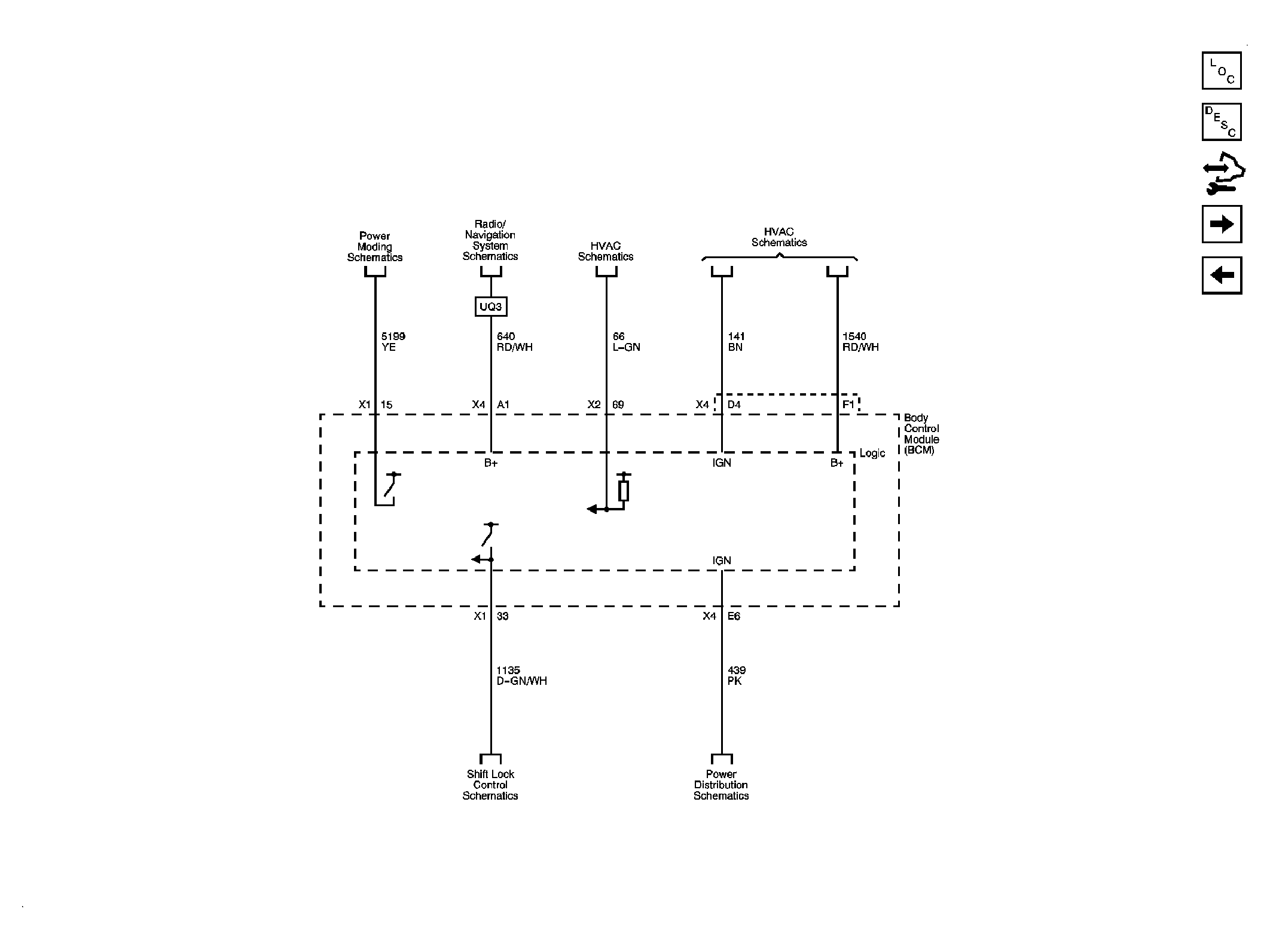

Fig 2: References (2 of 5)

Courtesy of GENERAL MOTORS CORP.

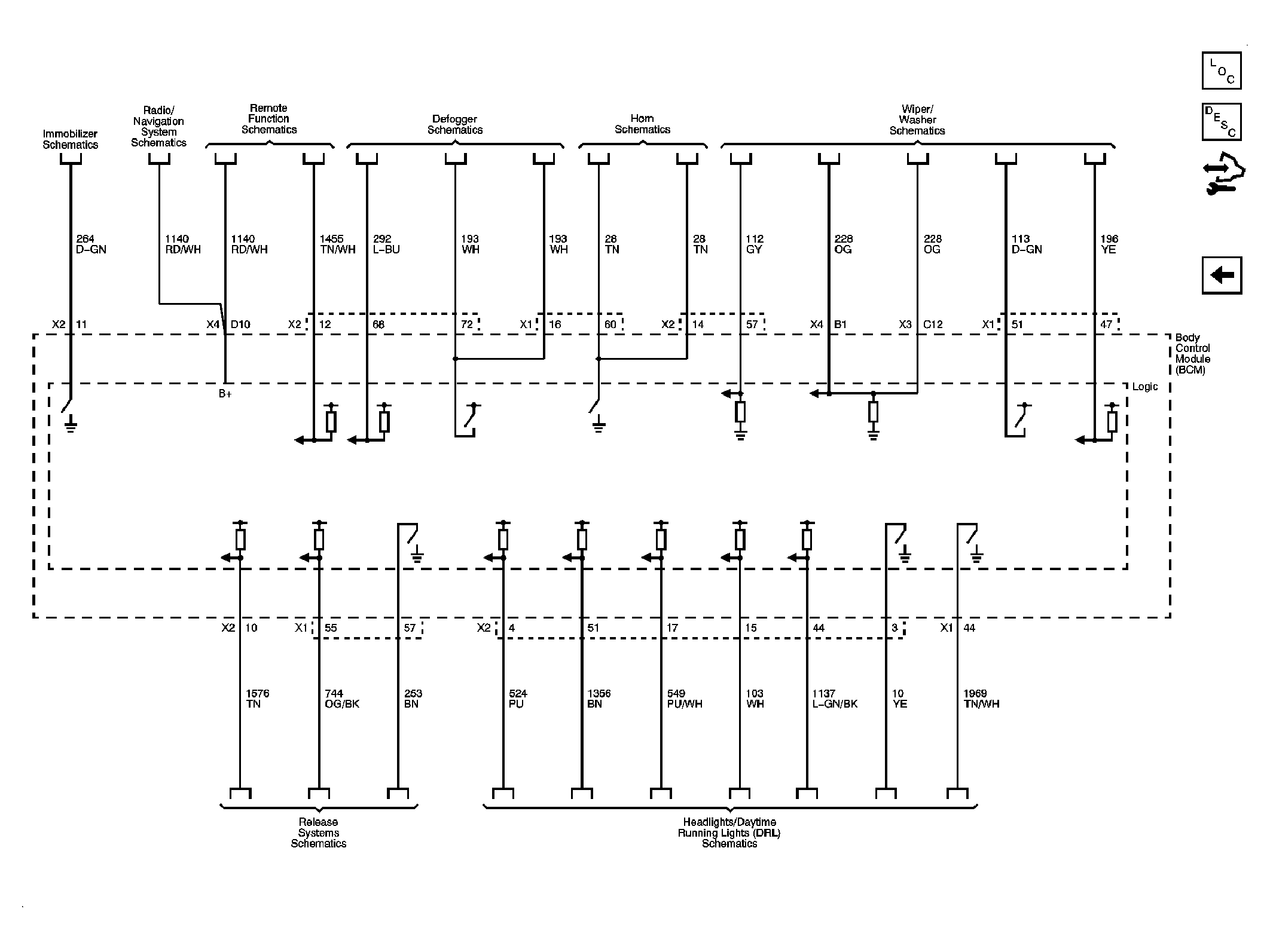

Fig 3: References Schematic (3 of 5)

Courtesy of GENERAL MOTORS CORP.

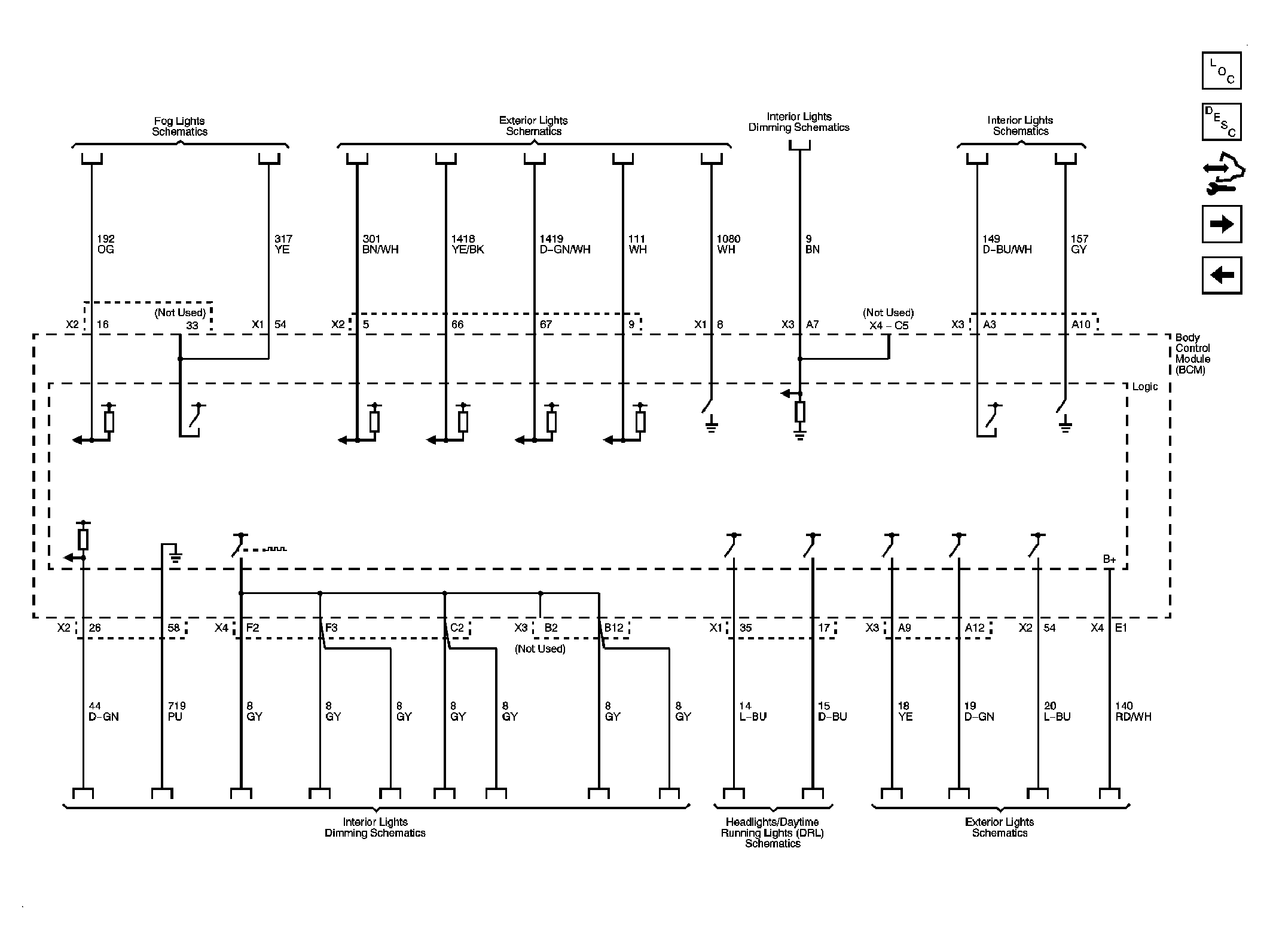

Fig 4: References Schematic (4 of 5)

Courtesy of GENERAL MOTORS CORP.

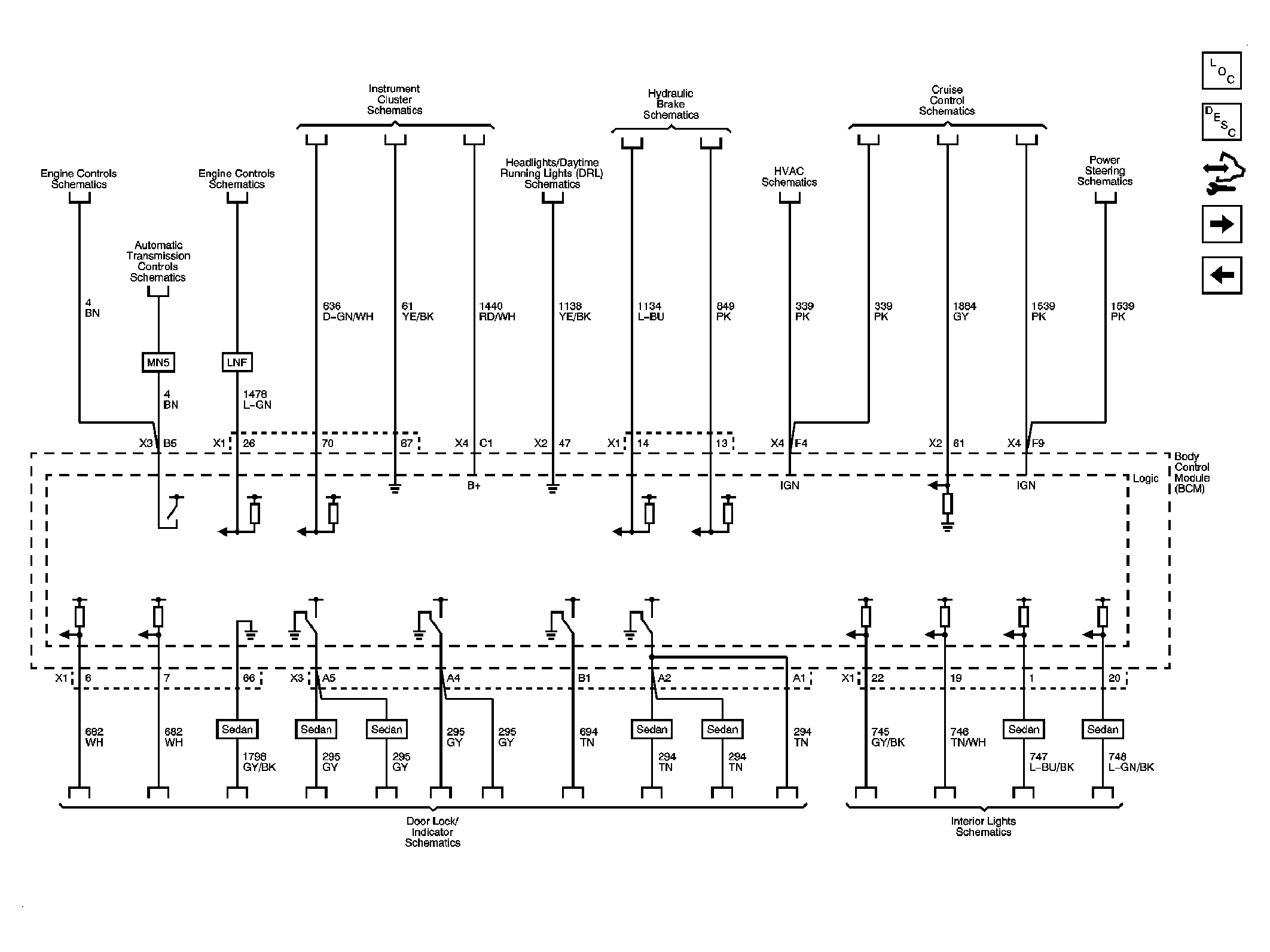

Fig 5: References Schematic (5 of 5)

Courtesy of GENERAL MOTORS CORP.
