Brake Pressure Modulator Valve Bracket Replacement
WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

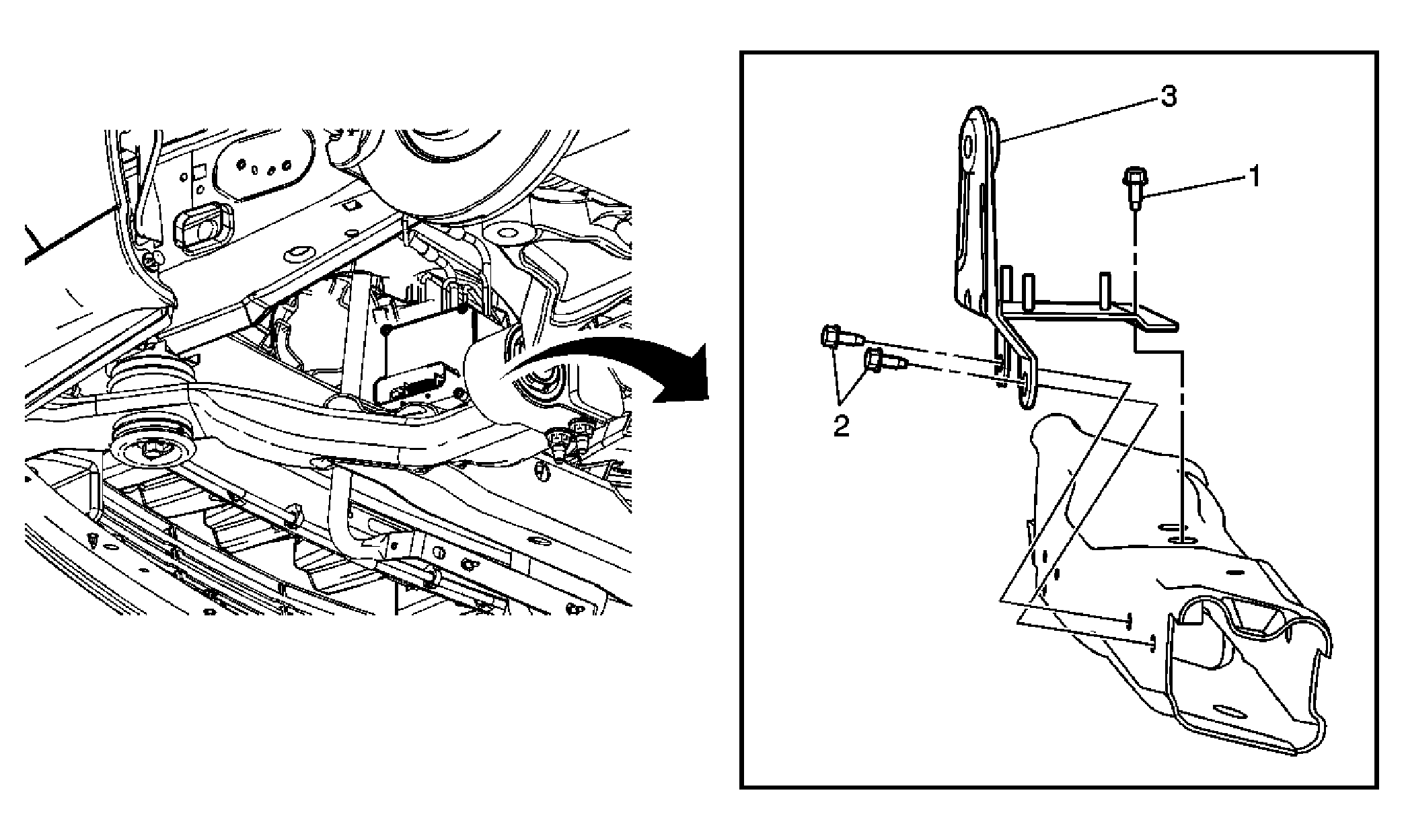

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the brake pressure modulator valve (BPMV). Refer to Brake Pressure Modulator Valve Replacement |
|
| 1 | Brake Pressure Modulator Valve (BPMV) Mounting Bolt - Upper
NOTE:
Refer to Fastener Notice
.
Tighten: 12 N.m (106 lb ft) |
| 2 | BPMV Mounting Bolt - Lower (Qty: 2) Tighten: 12 N.m (106 lb ft) |
| 3 | BPMV Bracket |
