Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

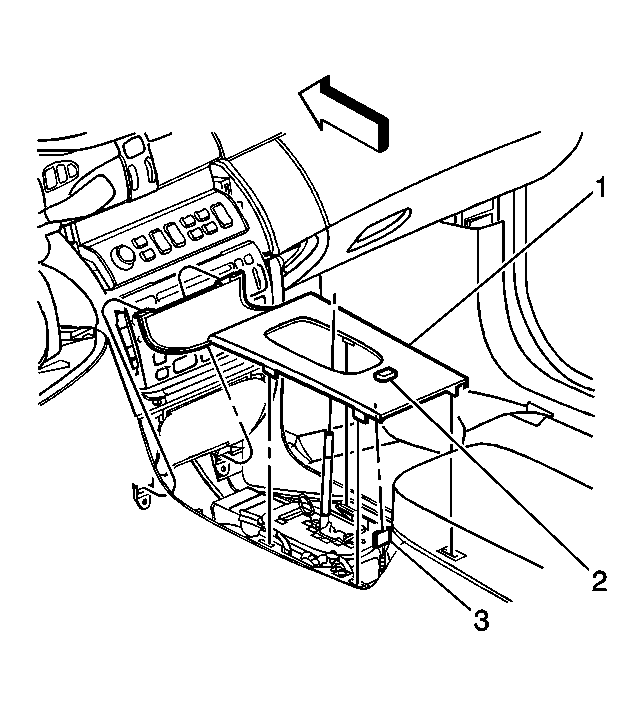

Fig 1: View Of Console Trim Plate

Courtesy of GENERAL MOTORS CORP.

Install the traction control switch (2).
Install the traction control switch electrical connector (3).
Install the center console trim plate (1). Refer to Front Floor Console Trim Plate Replacement .
