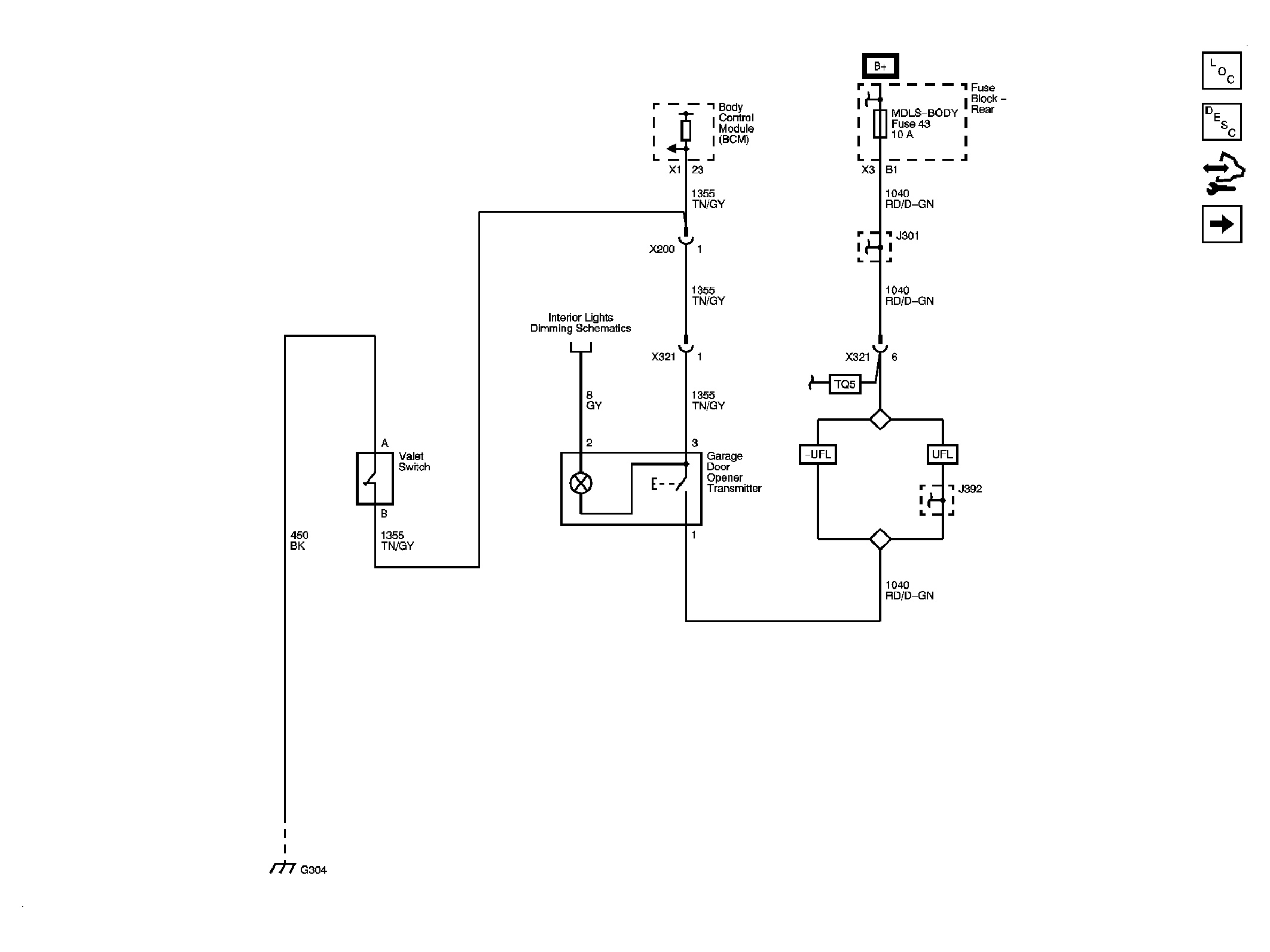

Fig 1: Garage Door Opener Schematic
Courtesy of GENERAL MOTORS CORP.

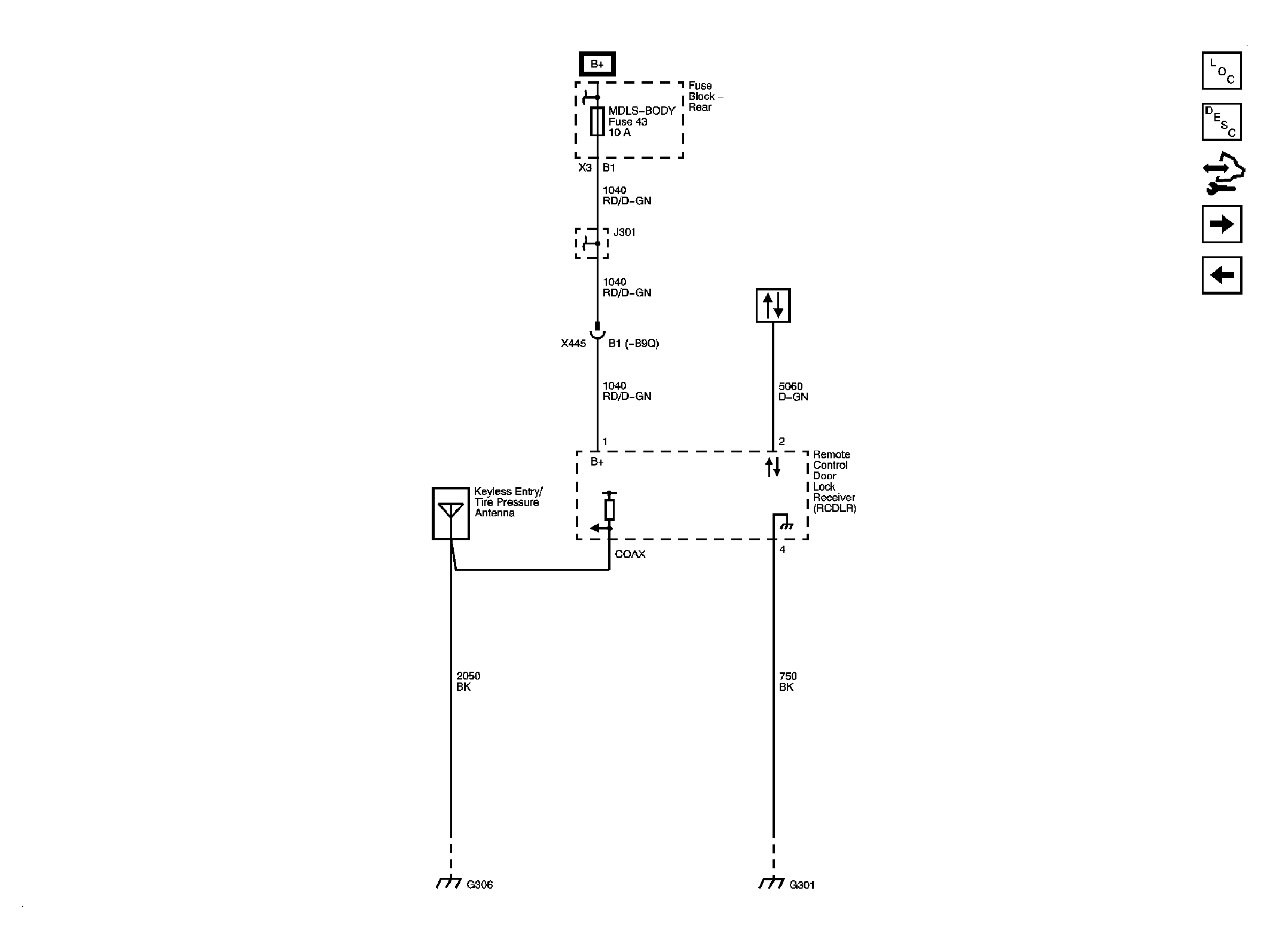

Fig 2: Remote Control Door Lock Receiver (RCDLR) Schematic
Courtesy of GENERAL MOTORS CORP.

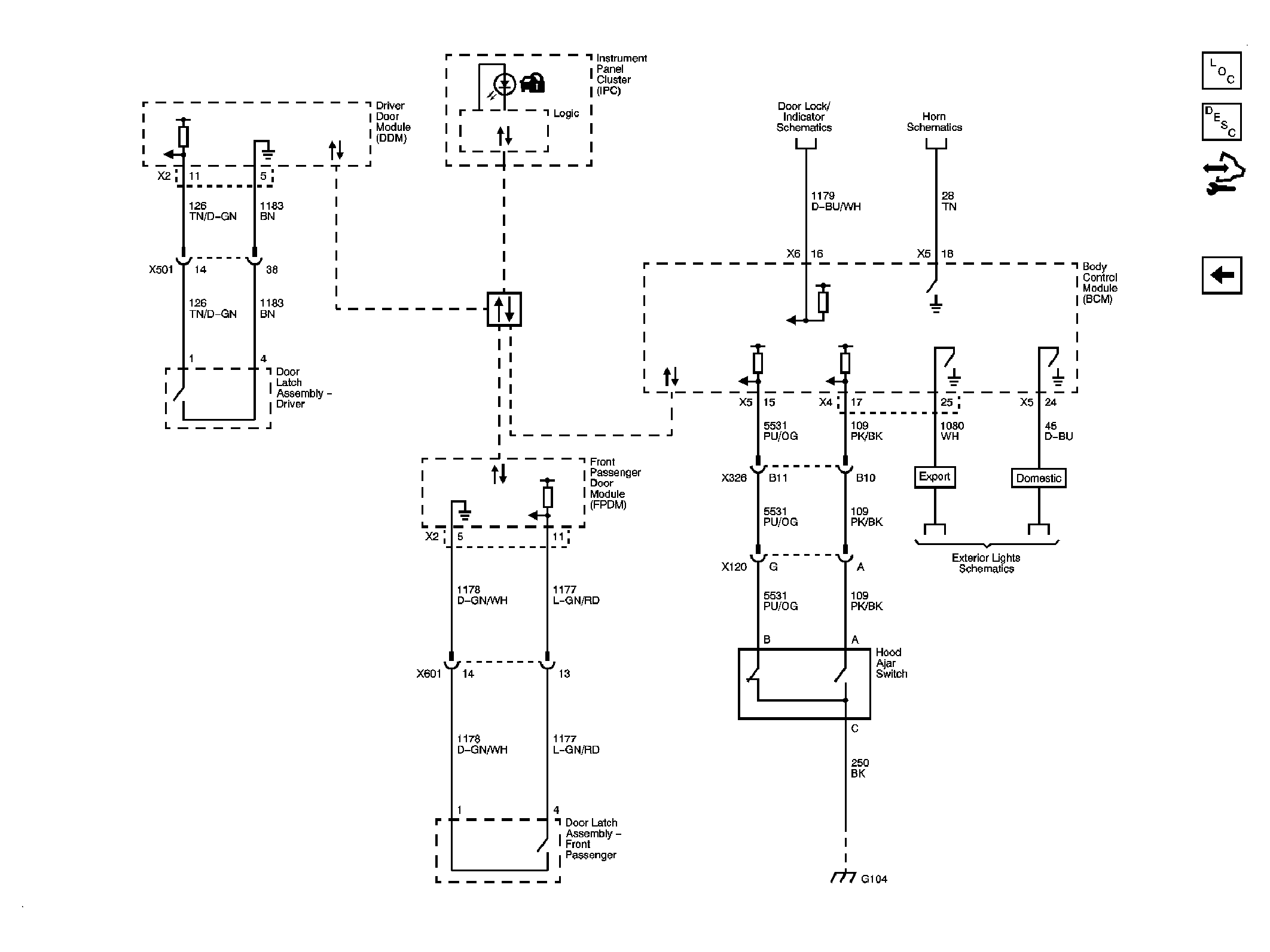

Fig 3: Door Latch Assemblies & Hood Ajar Switch Schematic
