Infrared Transmitter Module (UUC)

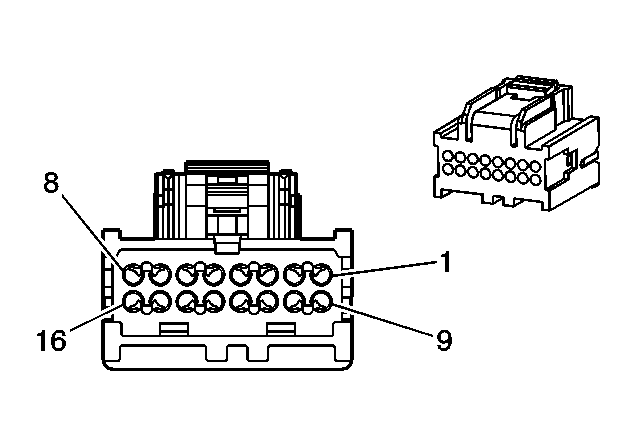

Fig 1: Infrared Transmitter Module (UUC) Connector End View
GM1454407Courtesy of GENERAL MOTORS CORP.
Infrared Transmitter Module (UUC)

Pin Wire Circuit Function
1 0.5 L-BU 5826 Left DVD Audio Signal (+)
2 0.5 PU 6979 DVD Audio Common
3 0.5 WH 5828 Right DVD Audio Signal (+)
4 0.35 YE 343 Accessory Voltage
5-7 - - Not Used
8 0.5 OG/BK 5831 Remote Infra Red Signal (+)
9-11 - - Not Used
12 0.5 BK/WH 1551 Ground
13-15 - - Not Used
16 0.5 TN/WH 5830 Remote Infra Red Signal (-)
Connector Part Information
  • OEM: 15429806
  • Service: See Catalog
  • Description: 16-Way F Micro 64 Series (BN)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
