Engine Controls Schematics

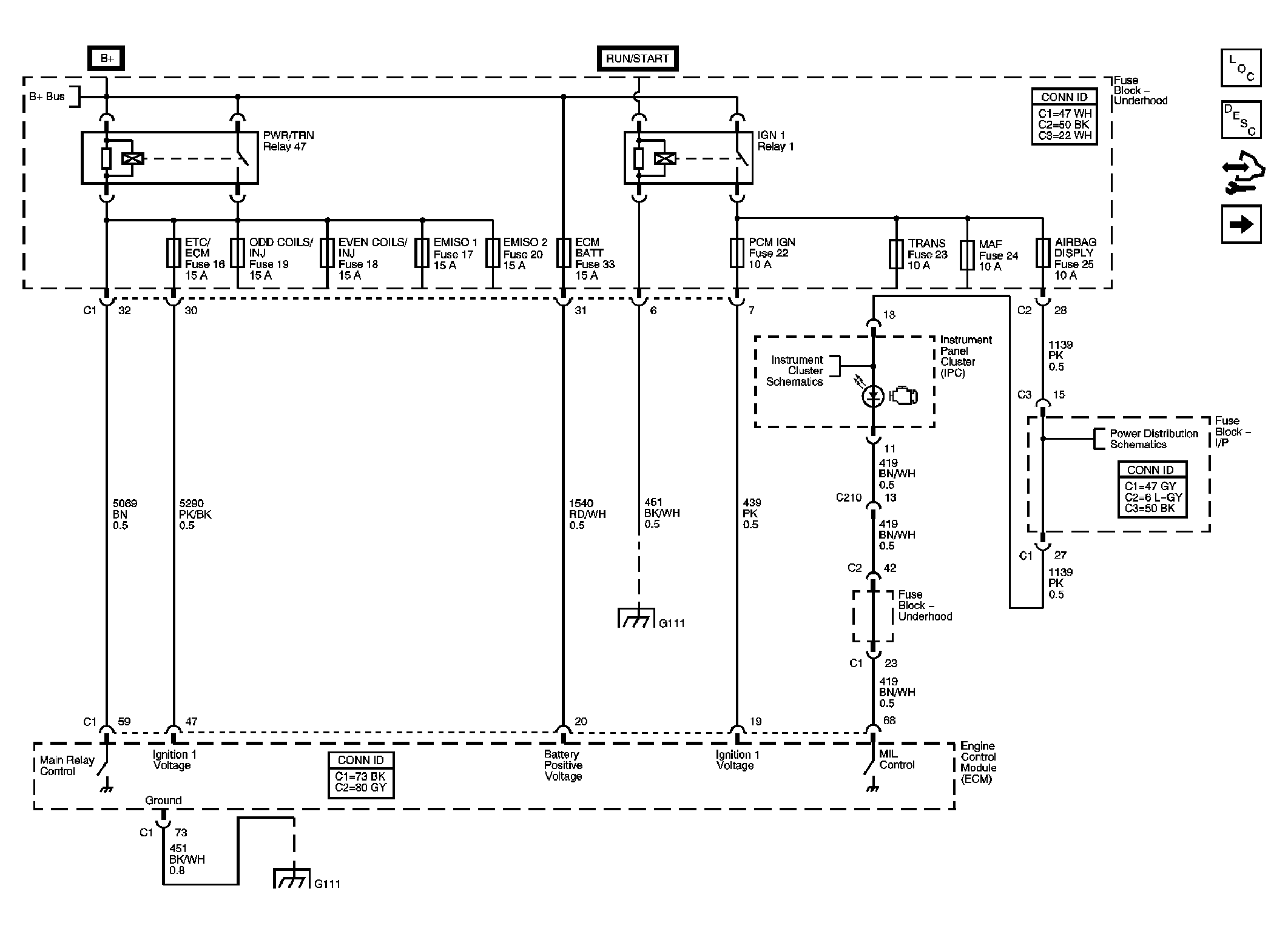

Fig 1: Module Power, Ground, and MIL
GM1923361Courtesy of GENERAL MOTORS CORP.

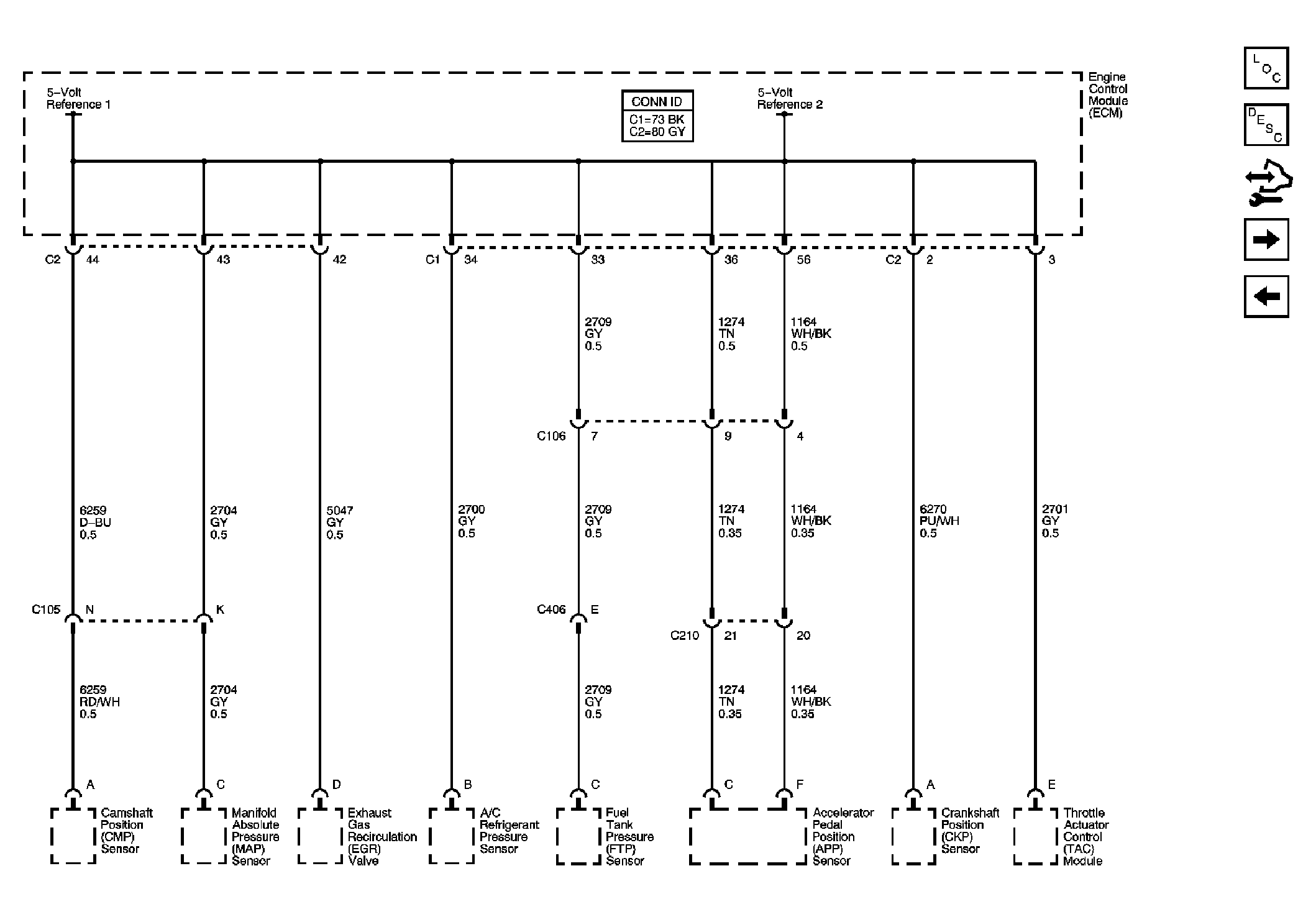

Fig 2: 5-Volt Reference
GM1923363Courtesy of GENERAL MOTORS CORP.

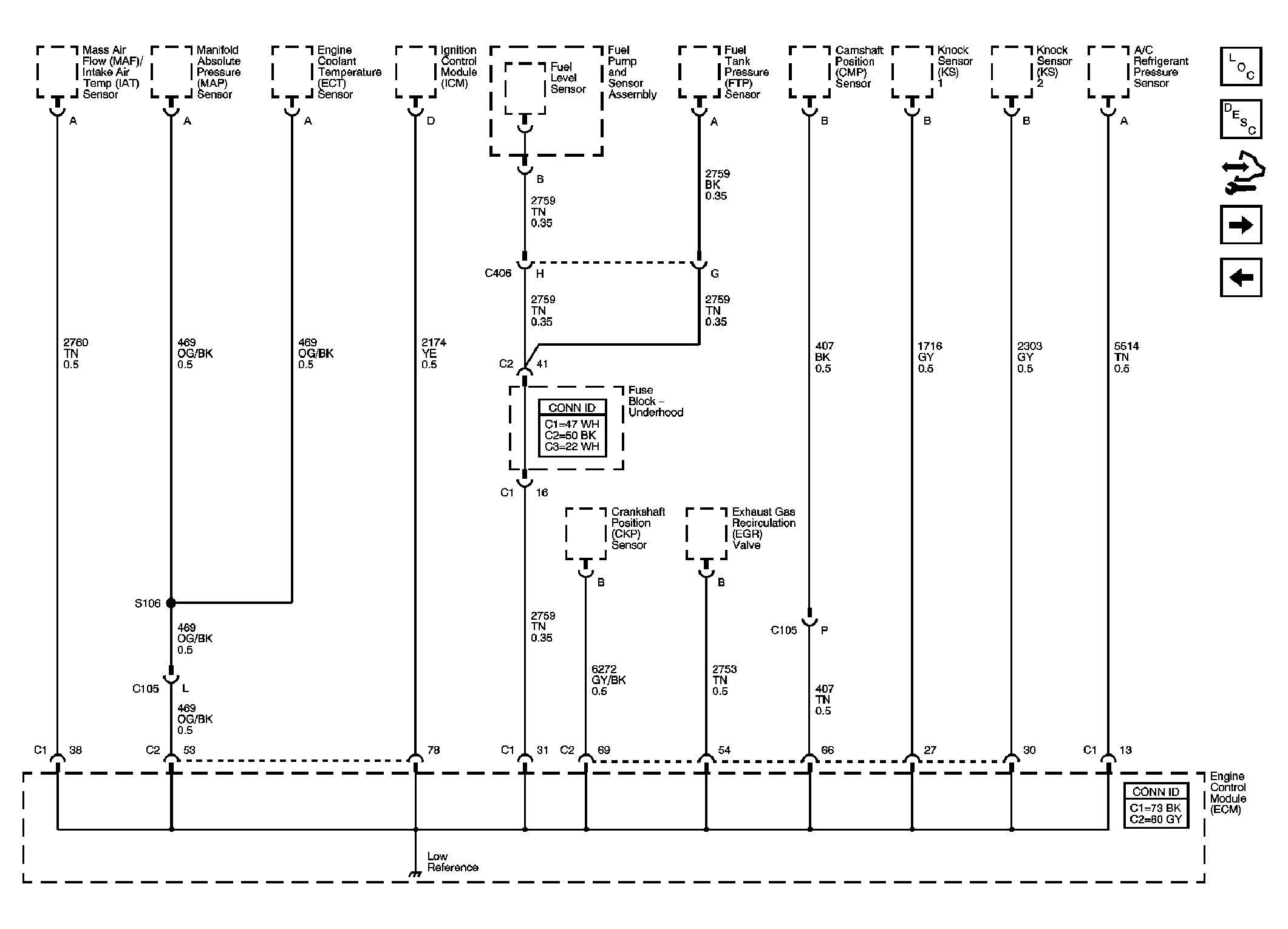

Fig 3: Low Reference
GM1923366Courtesy of GENERAL MOTORS CORP.

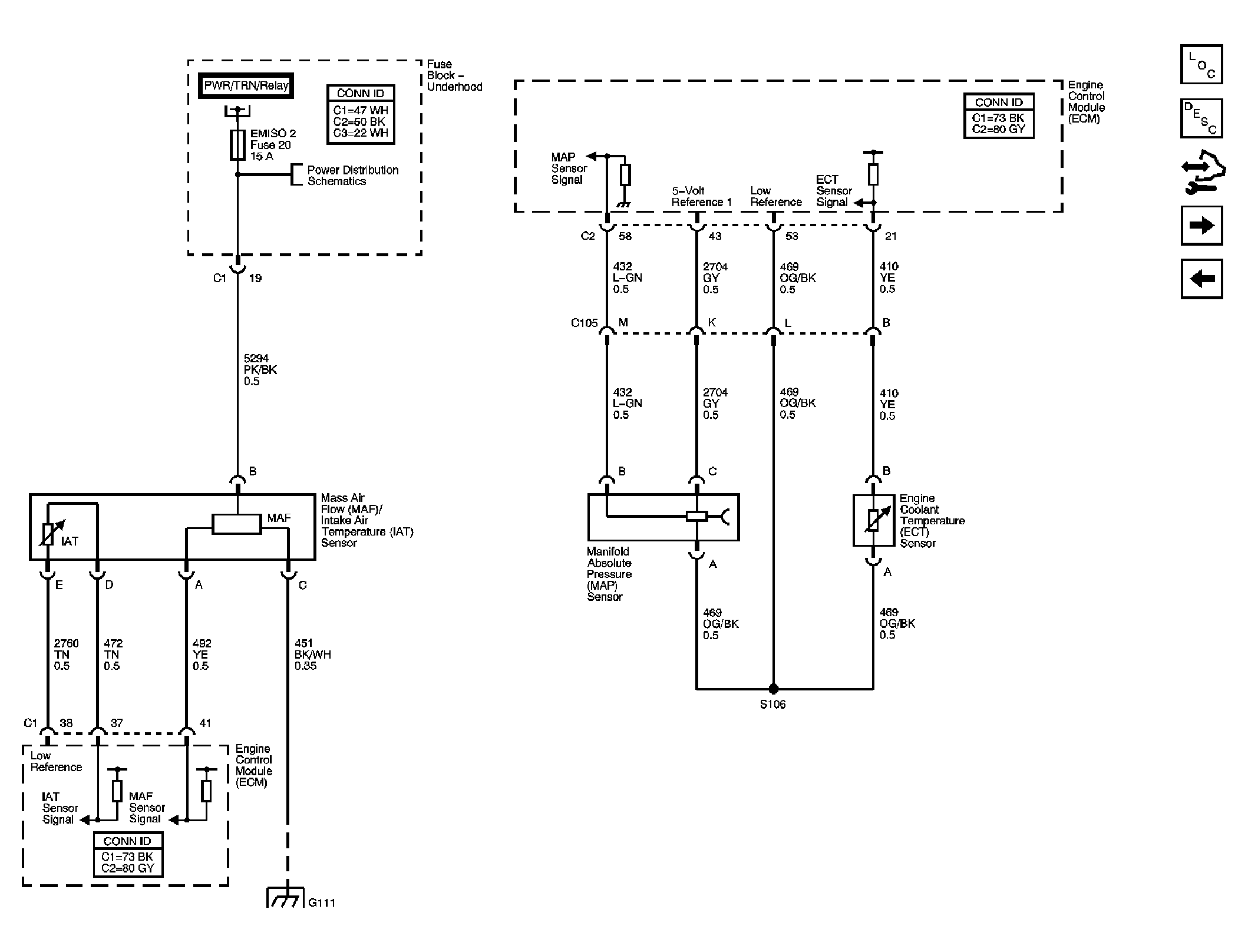

Fig 4: MAF, MAP, ECT
GM1923369Courtesy of GENERAL MOTORS CORP.

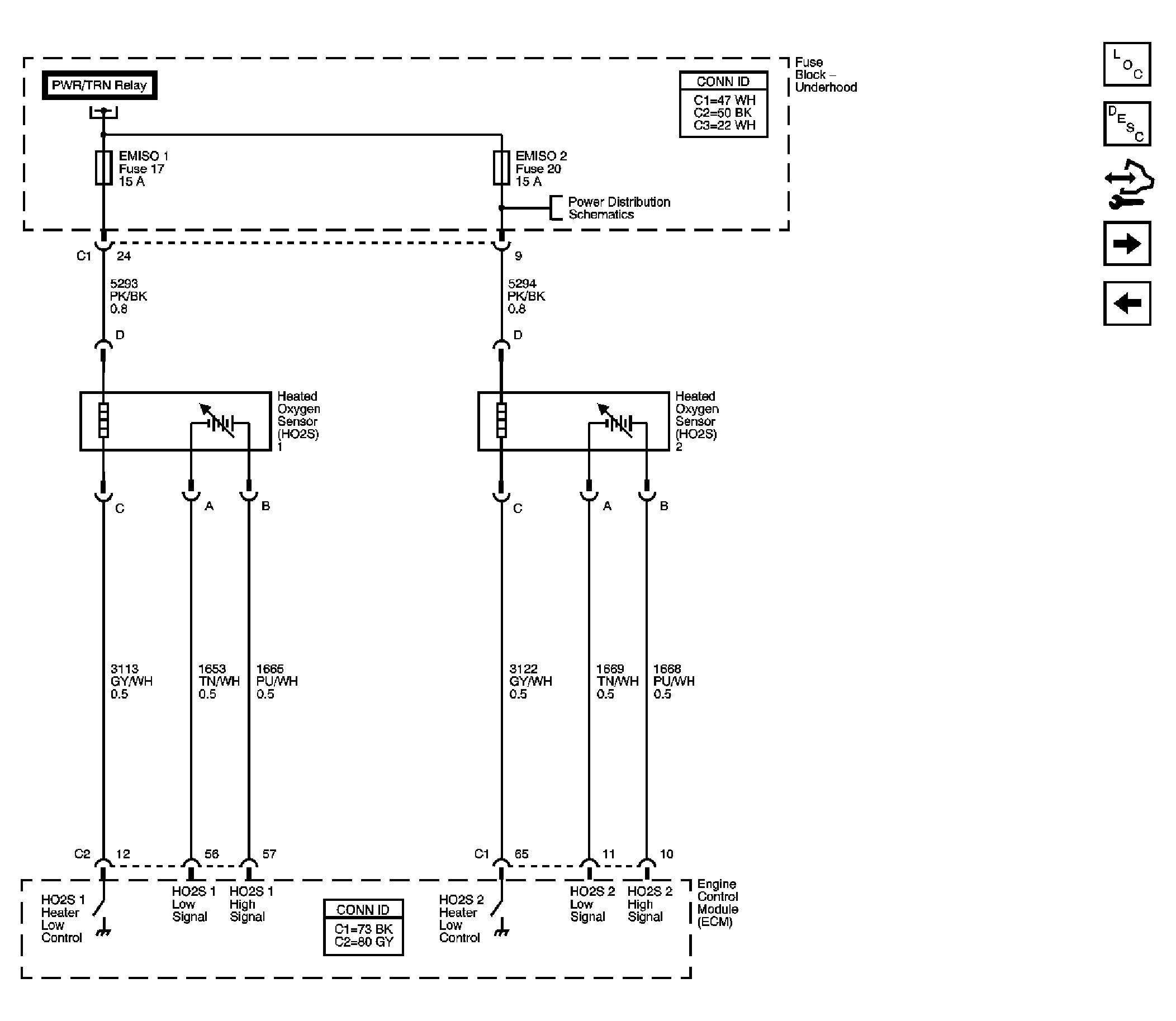

Fig 5: Oxygen Sensors
GM1923371Courtesy of GENERAL MOTORS CORP.

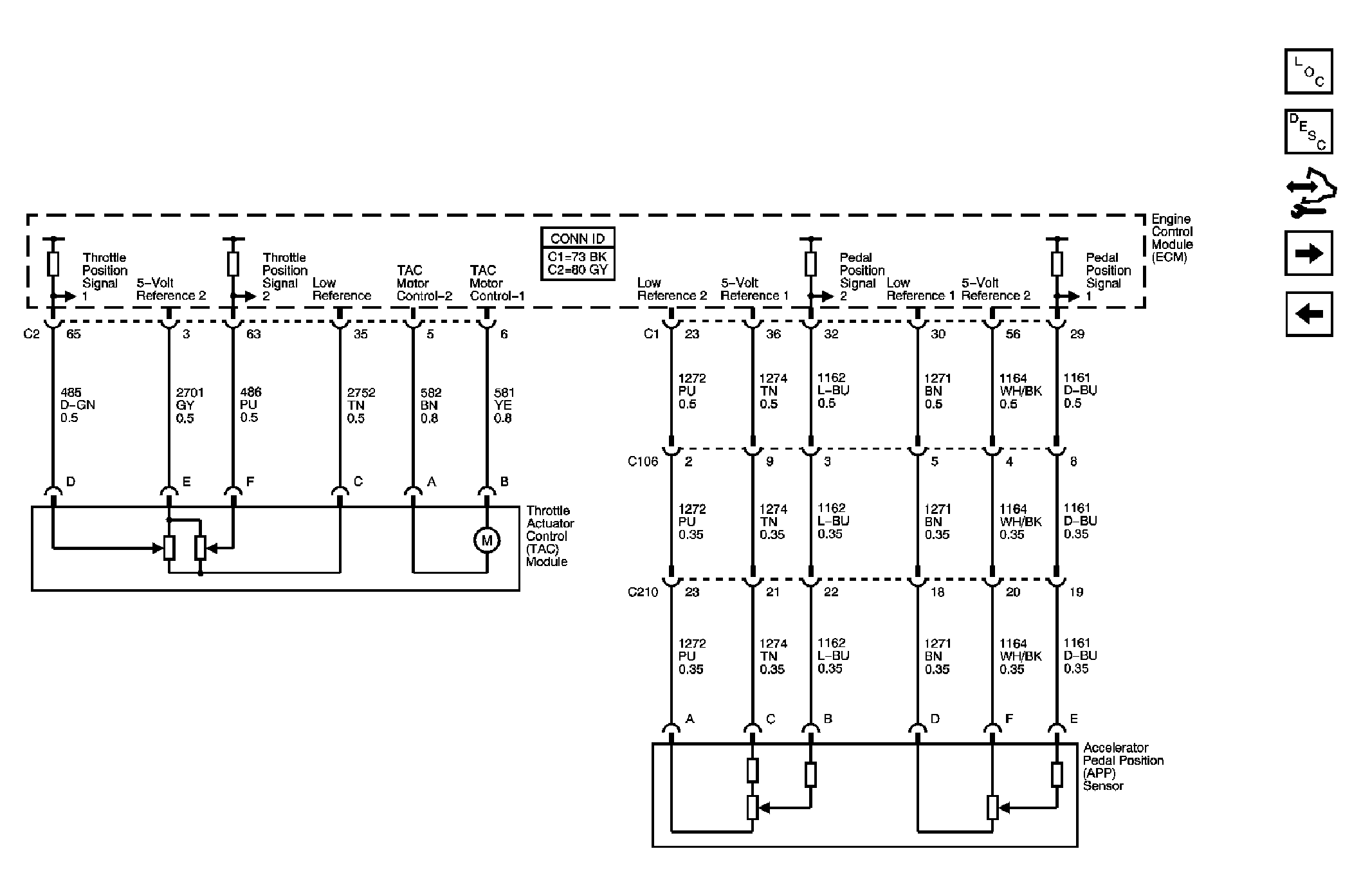

Fig 6: TAC, Accelerator Pedal Sensor
GM1923377Courtesy of GENERAL MOTORS CORP.
Fig 7: Ignition Control Module
GM1923381Courtesy of GENERAL MOTORS CORP.

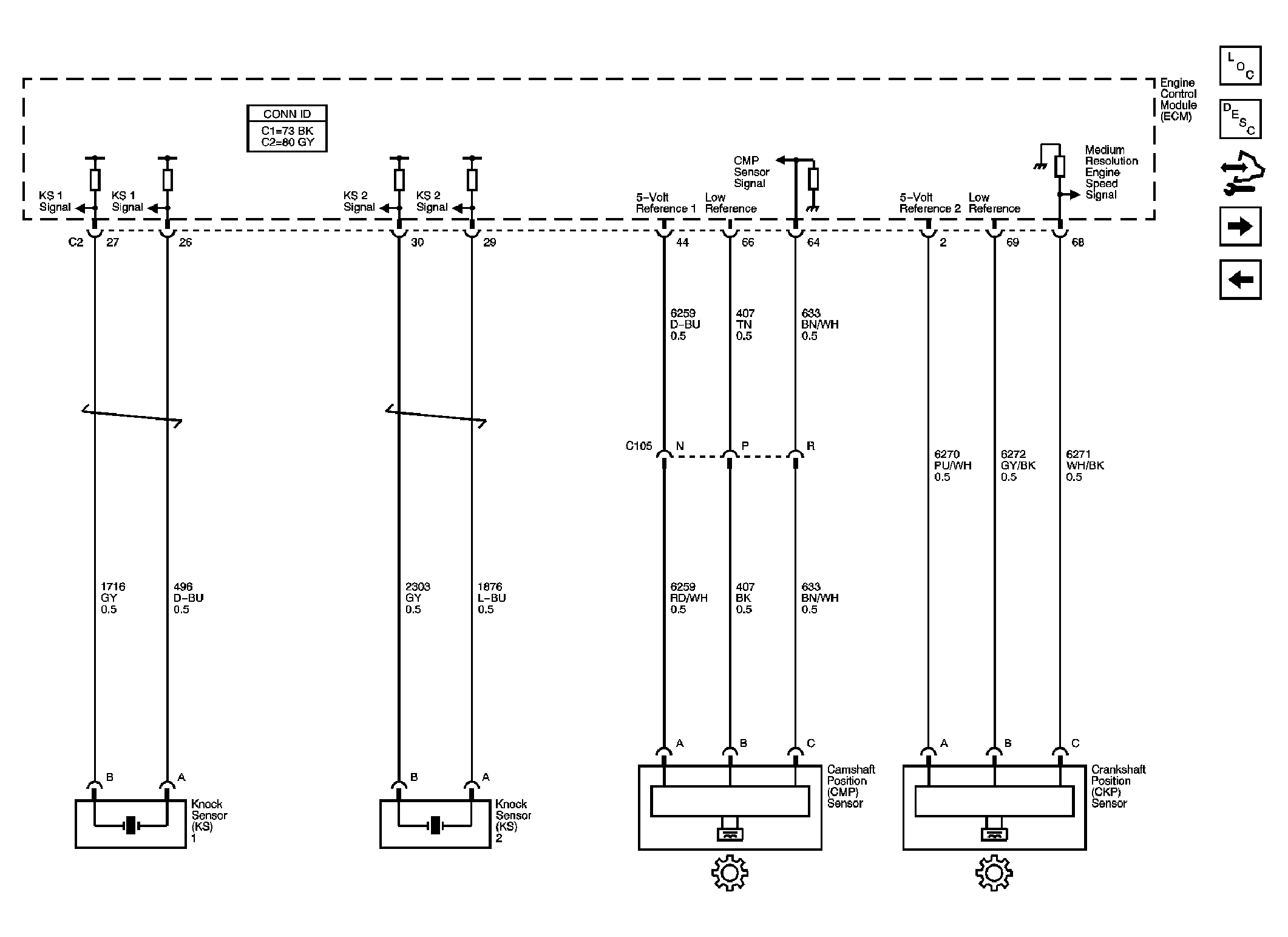

Fig 8: Knock, Camshaft, and Crankshaft Sensors
GM1923383Courtesy of GENERAL MOTORS CORP.

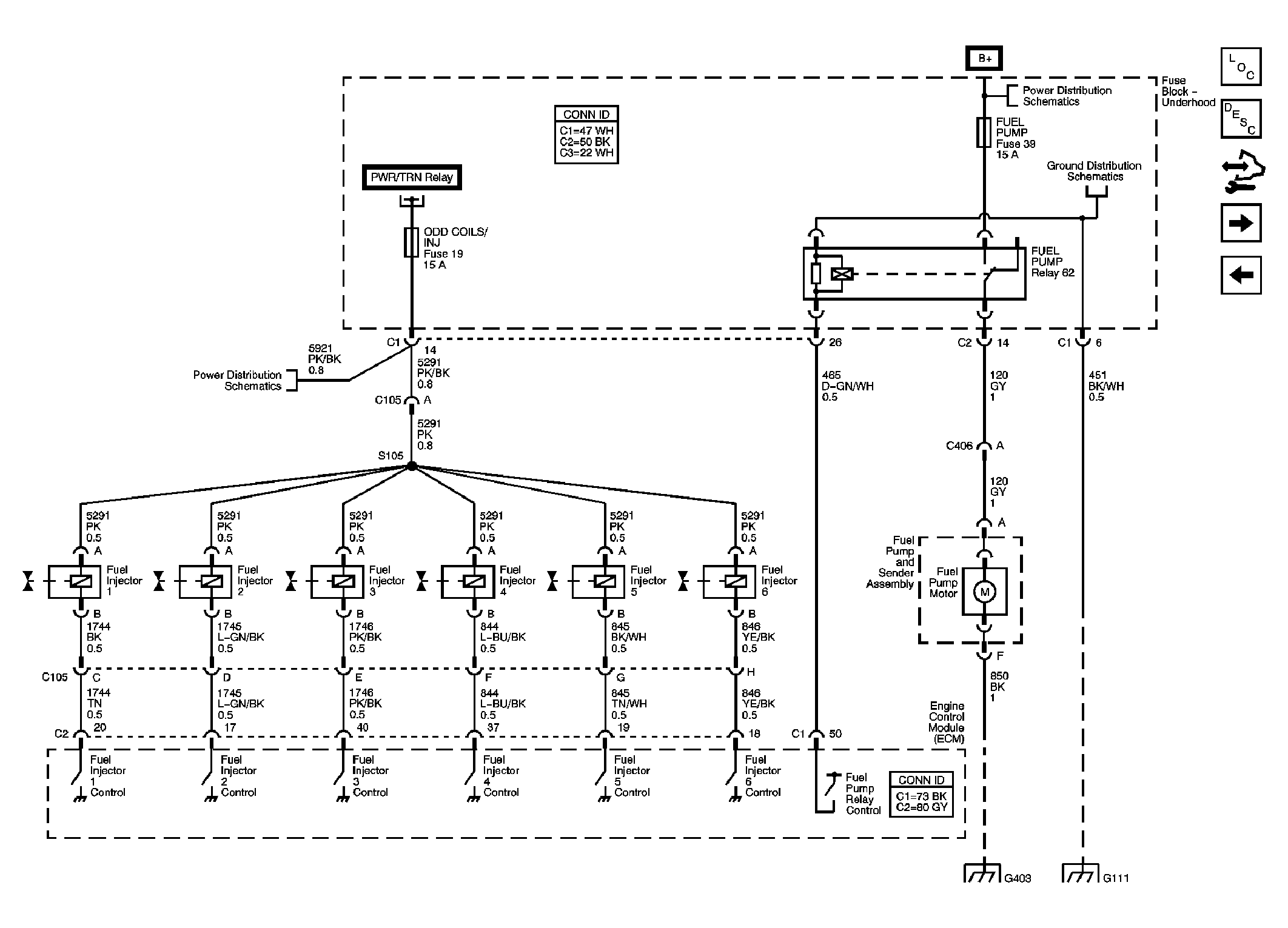

Fig 9: Fuel Injectors and Fuel Pump
GM1923387Courtesy of GENERAL MOTORS CORP.

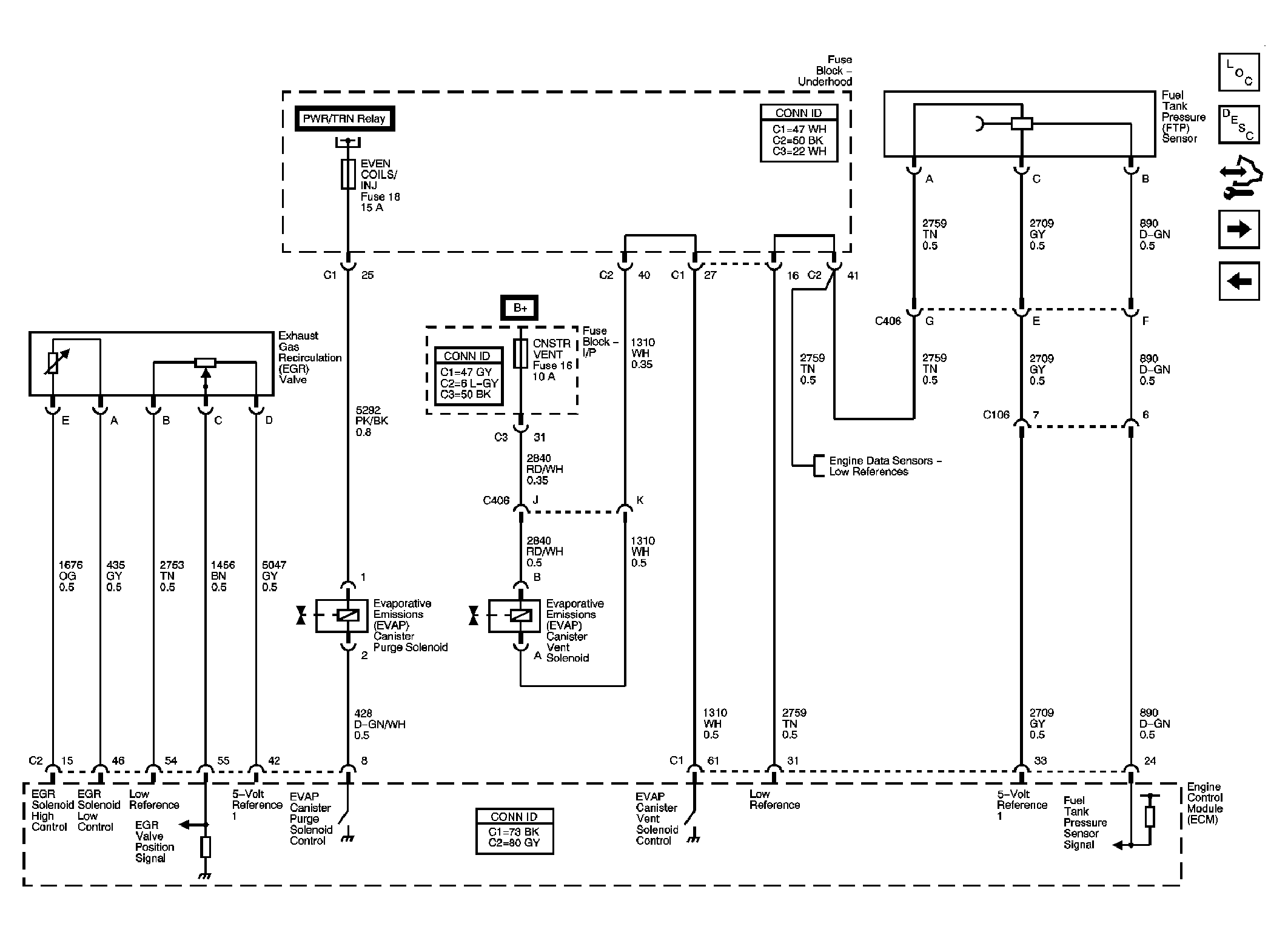

Fig 10: EGR and EVAP Controls
GM1923393Courtesy of GENERAL MOTORS CORP.

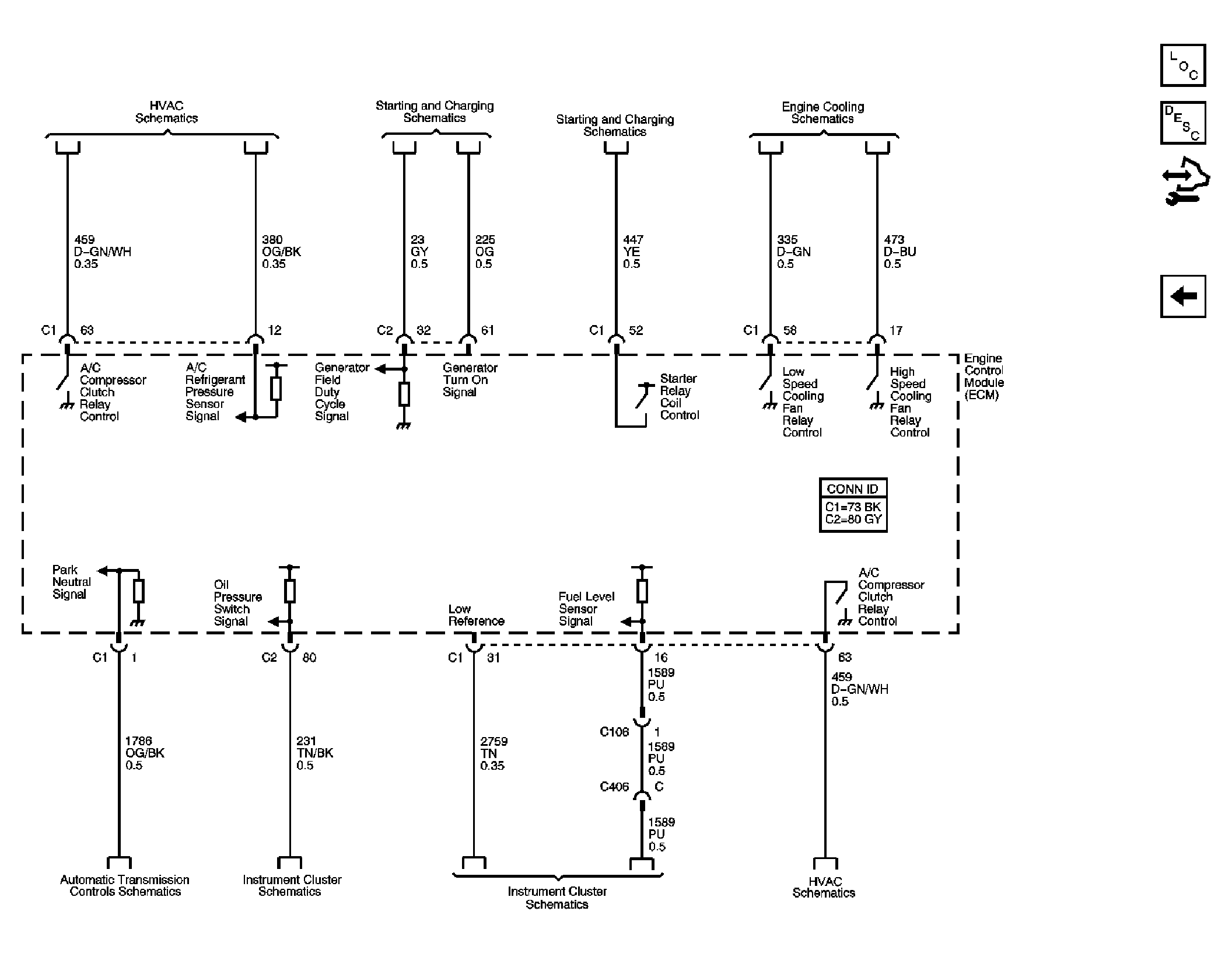

Fig 11: Controlled/Monitored Subsystem References
GM1923396Courtesy of GENERAL MOTORS CORP.
