Removal Procedure

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

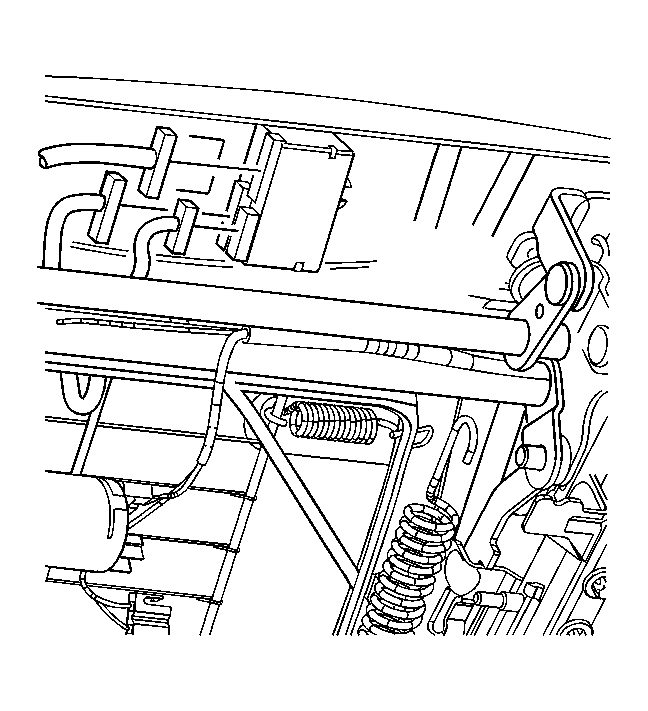

Fig 1: View Of Front Heated Seat Control Module

Courtesy of GENERAL MOTORS CORP.

Remove the heated seat module retainer.

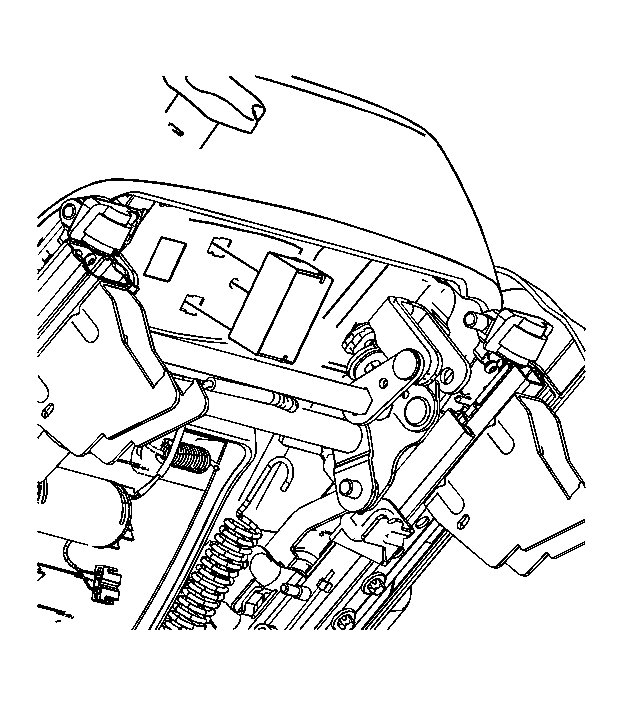

Fig 2: Disconnecting/Connecting Electrical Connectors From Heated Seat Module

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors from the heated seat module.

Fig 3: View Of Seat Module

Courtesy of GENERAL MOTORS CORP.

Remove the module.
