Steering Wheel Angle Sensor (w/VSC)

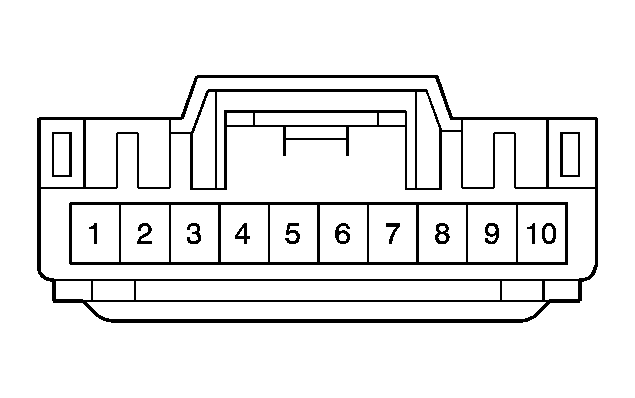

Courtesy of GENERAL MOTORS CORP. Steering Wheel Angle Sensor (w/VSC)
| Pin |
Wire Color |
Function |
| 1 |
BK/WH |
Ignition Voltage |
| 2 |
WH/BK |
Ground |
| 3 |
RD/BK |
Battery Voltage |
| 4-8 |
- |
Not Used |
| 9 |
WH |
CAN Low |
| 10 |
BK |
CAN High |
Connector Part Information
- OEM: 82824-45030
- Service: N/A
- Description: GY
|
