Traction Control Off Switch (w/VSC)

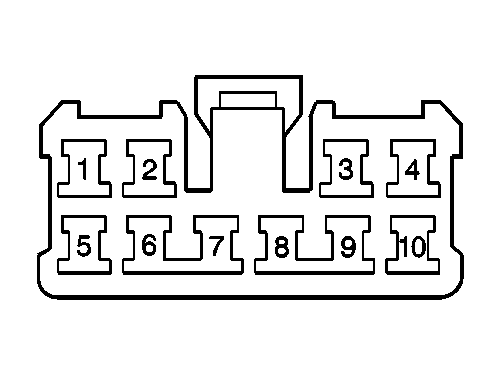

Fig 1: Traction Control Off Switch (w/VSC) Connector End View
GM334473Courtesy of GENERAL MOTORS CORP.
Traction Control Off Switch (w/VSC)

Pin Wire Color Function
1 - Not Used
2 GN Switch Illumination Positive
3-5 - Not Used
6 WH/BK Ground
7 WH/BK Switch Illumination Ground
8 - Not Used
9 RD/YE Traction Control Off Signal
10 - Not Used
Connector Part Information
  • OEM: 90980-10801
  • Service: N/A
  • Description: BK
