Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

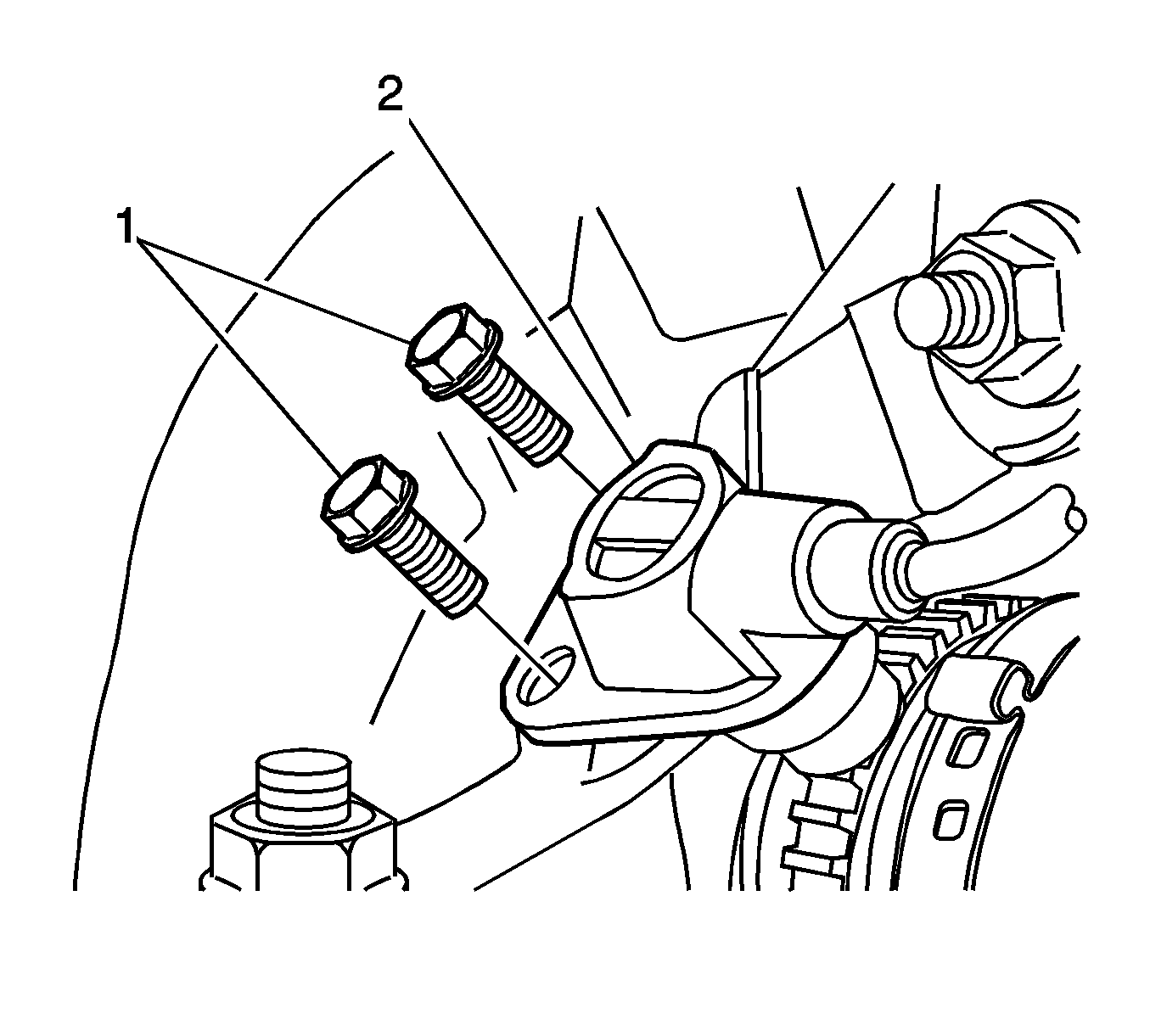

    Fig 1: Front Wheel Speed Sensor & Bolts
    GM1618012Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the front wheel speed sensor (2) to the steering knuckle. Secure it with the bolts (1) and tighten to 8 N.m (71 lb in).
  2. Install the wheel. Refer to Tire and Wheel Removal and Installation .
  3. Lower the vehicle.

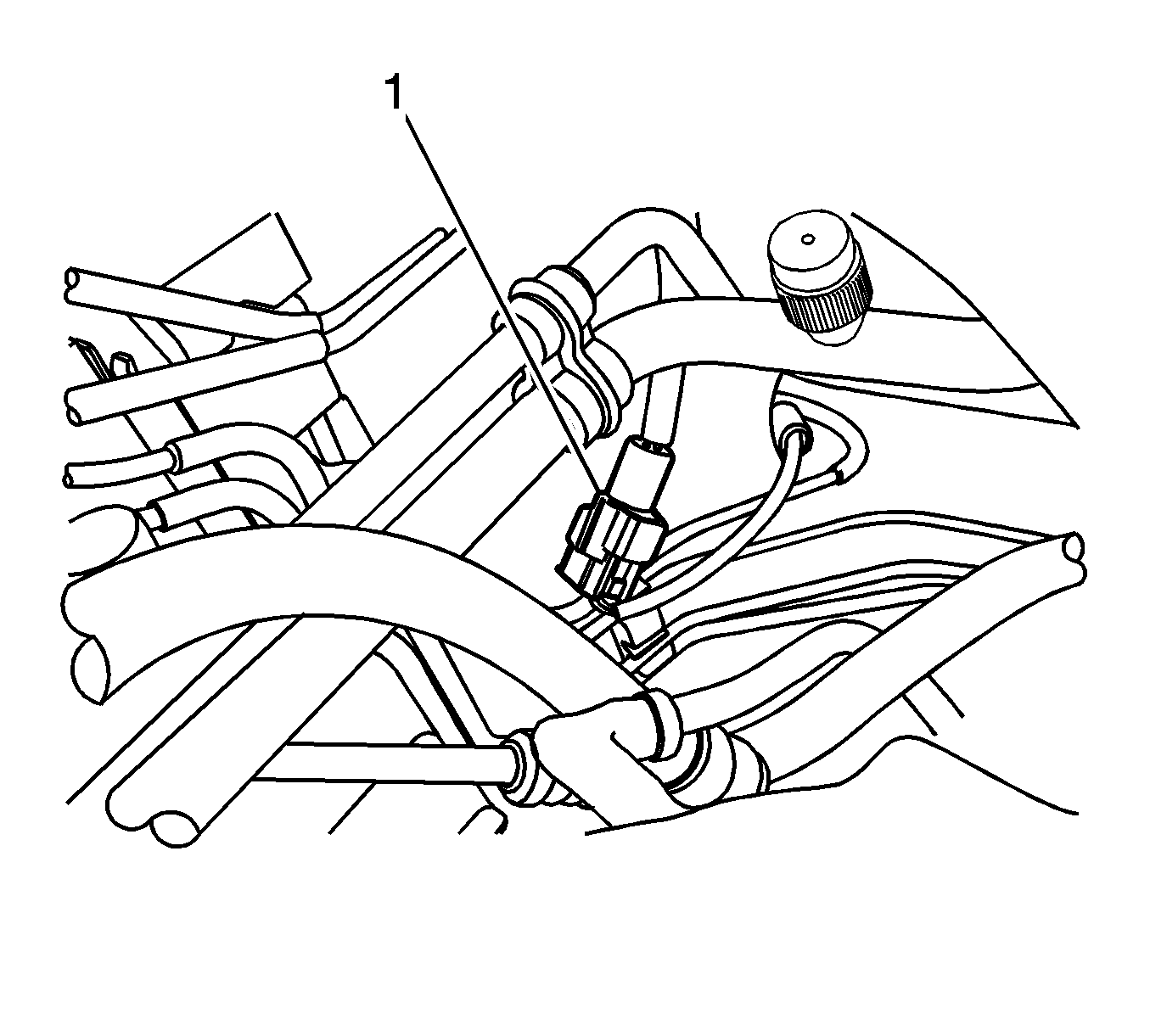

    4. Fig 2: Front Wheel Speed Sensor Electrical Connector
    GM1618010Courtesy of GENERAL MOTORS CORP.
  4. Connect the front wheel speed sensor electrical connector (1).
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
