Map Light
Component Connector End Views

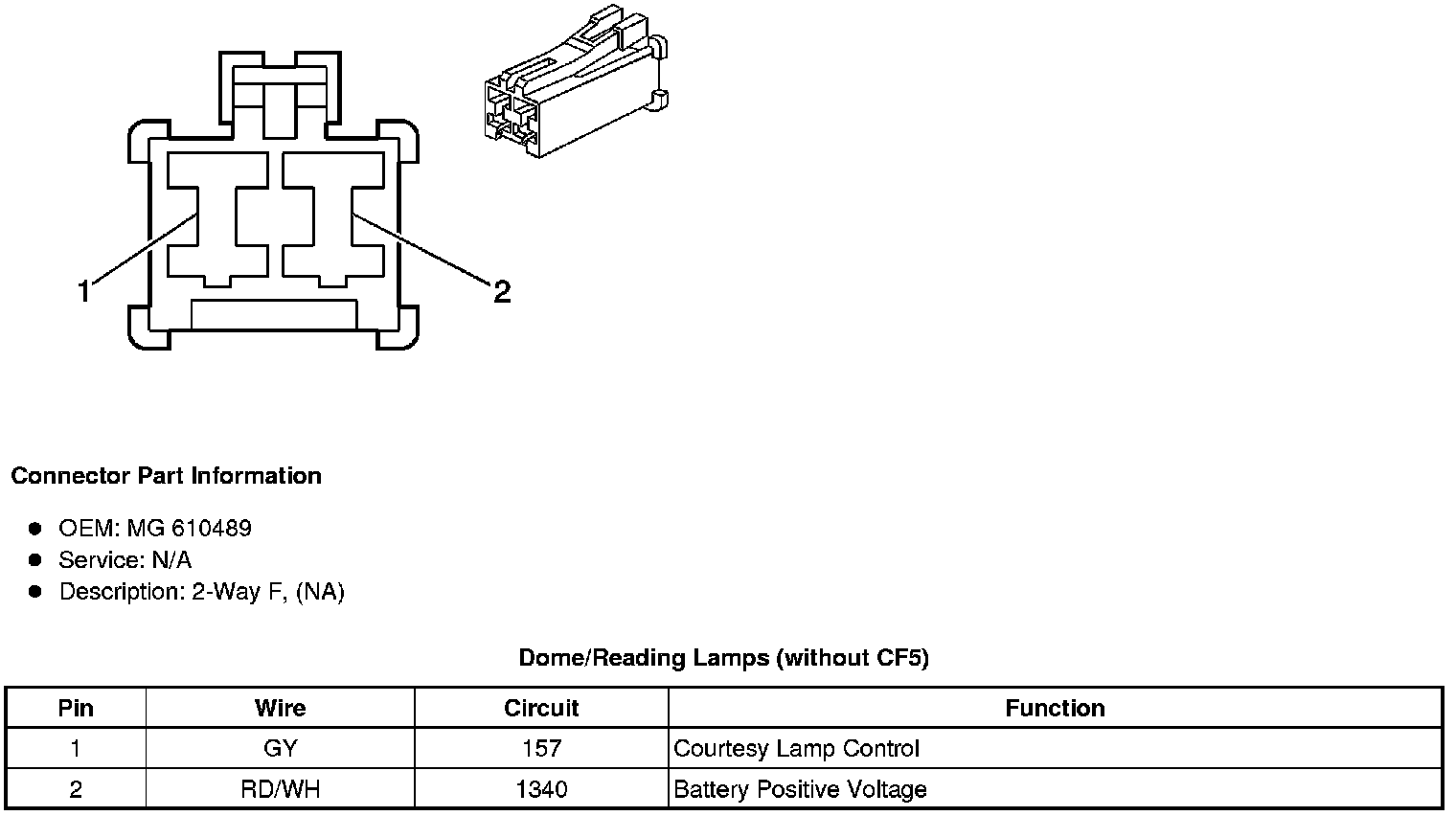

Dome/Reading Lamps (without CF5)

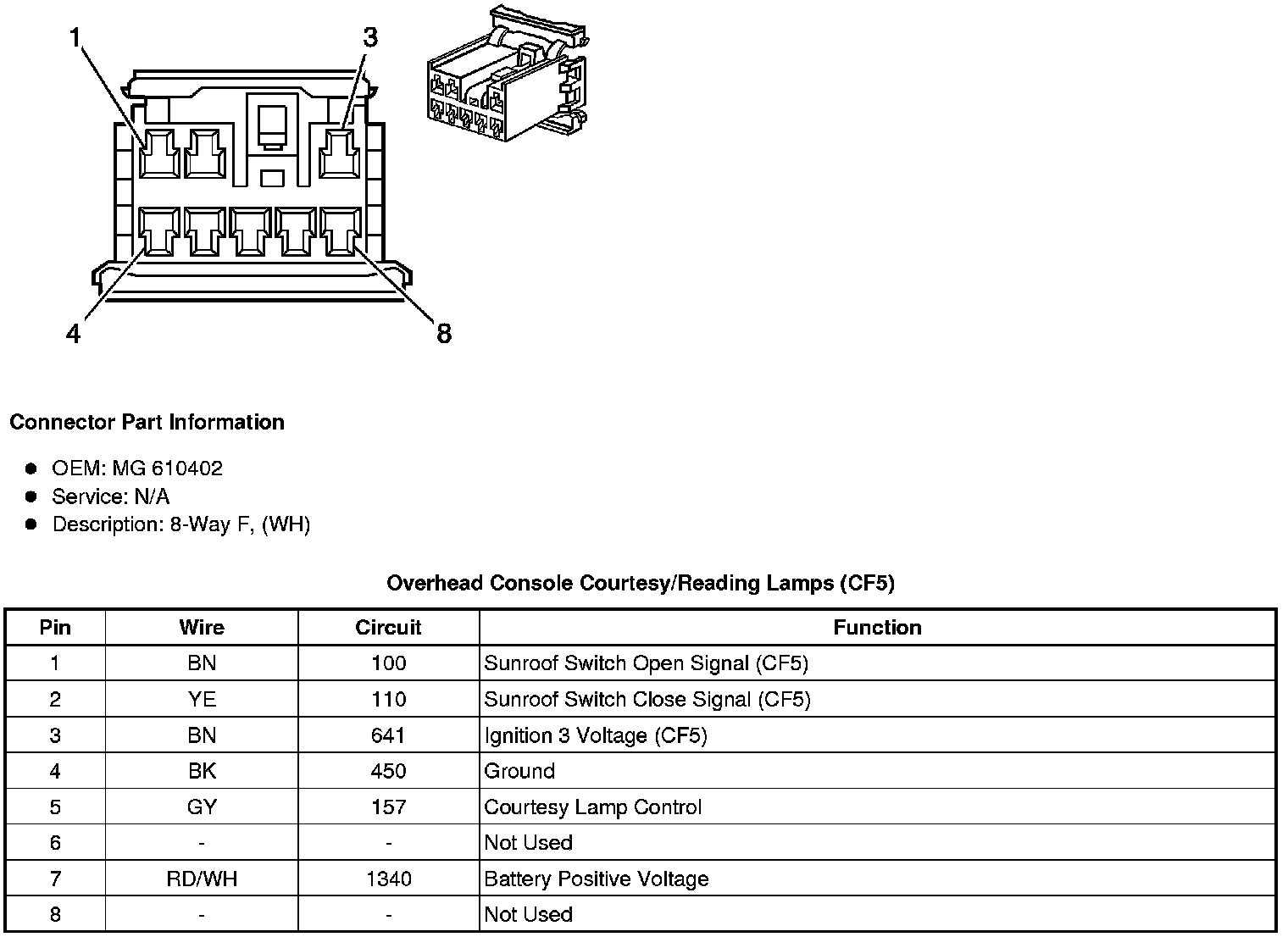

Overhead Console Courtesy/Reading Lamps (CF5)
