Power Window Switch




Component Connector End Views

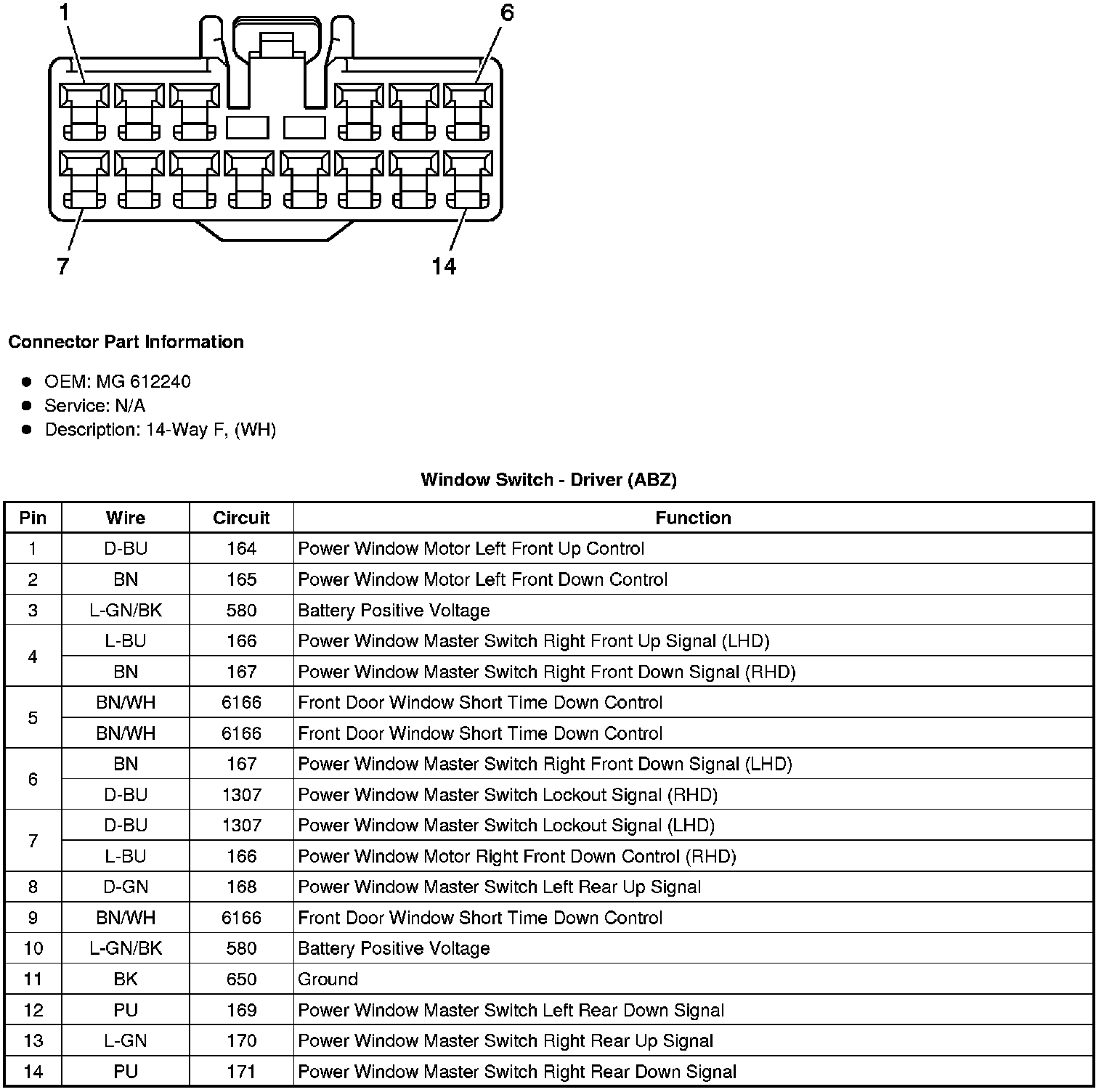

Window Switch - Driver (ABZ)

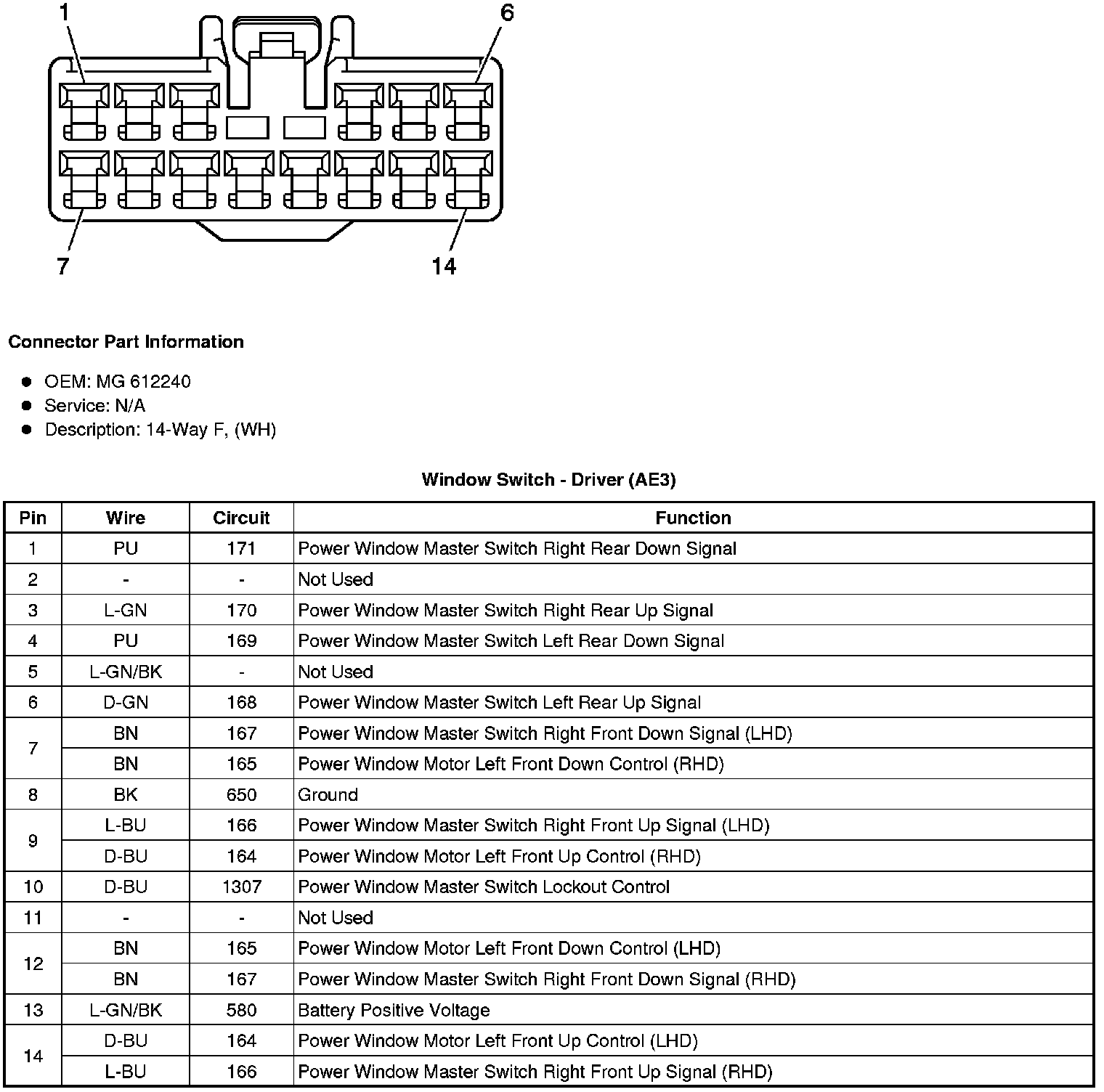

Window Switch - Driver (AE3)

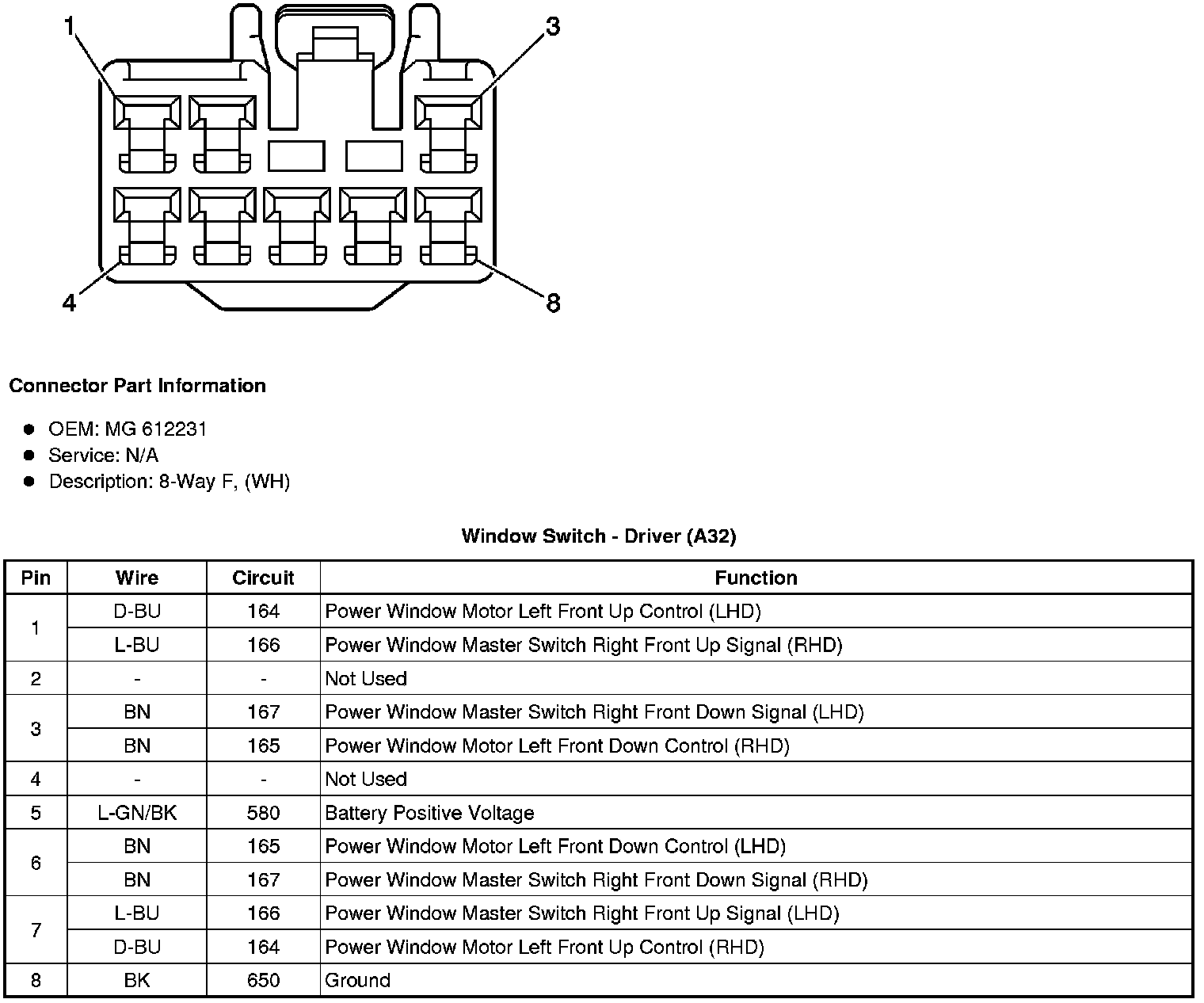

Window Switch - Driver (A32)

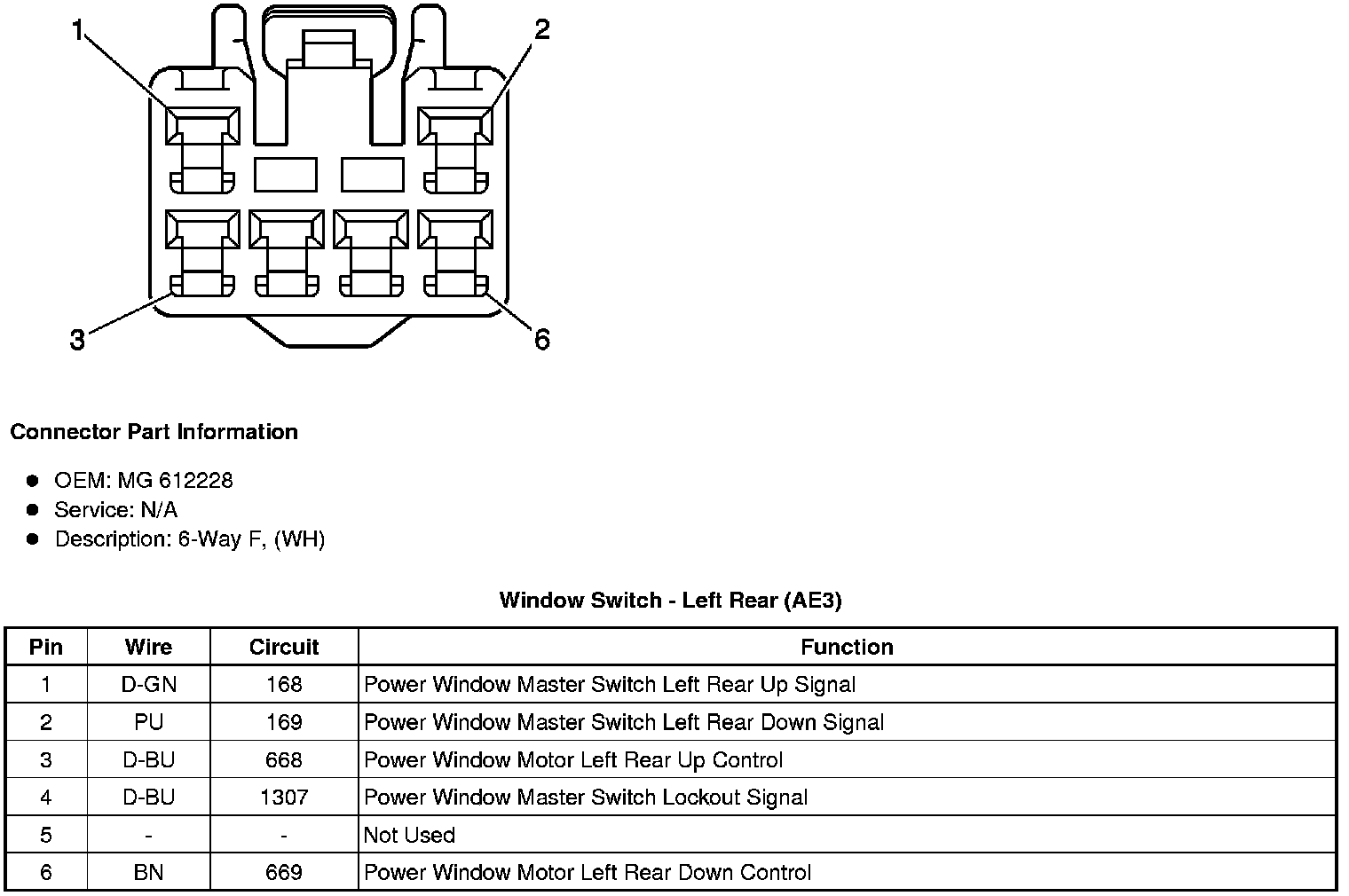

Window Switch - Left Rear (AE3)

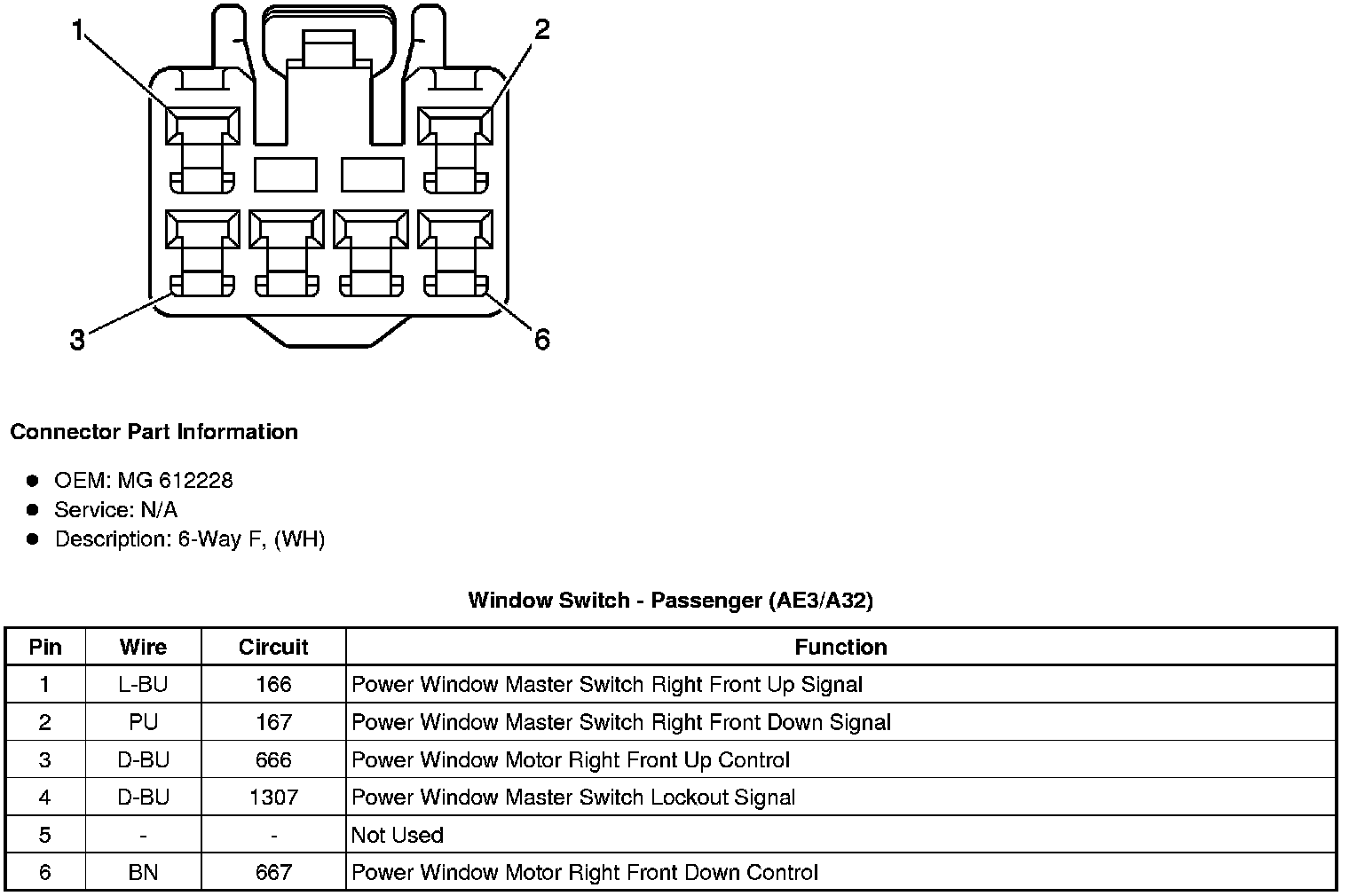

Window Switch - Passenger (AE3/A32)

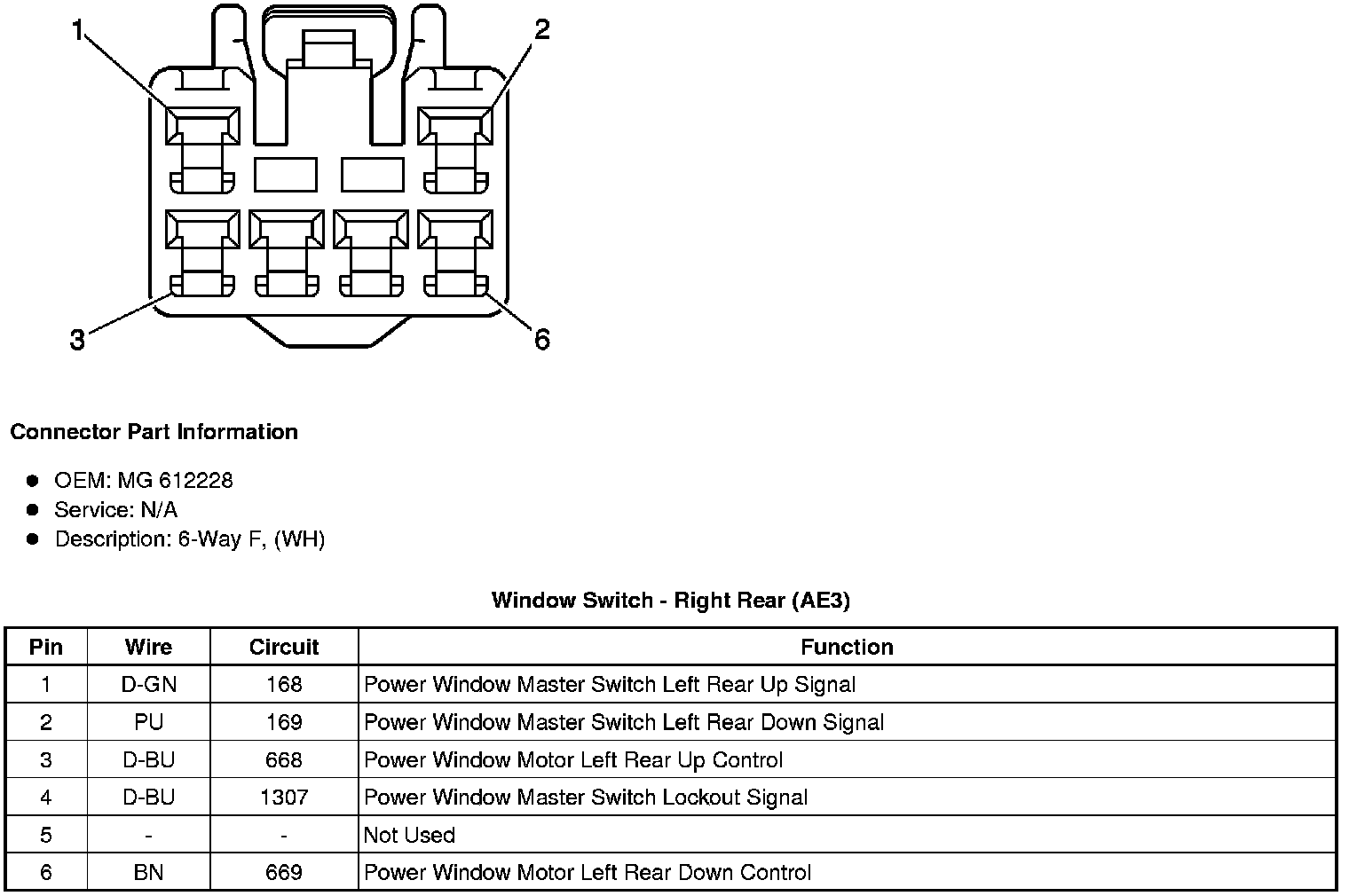

Window Switch - Right Rear (AE3)
