Windshield Washer Switch




Component Connector End Views

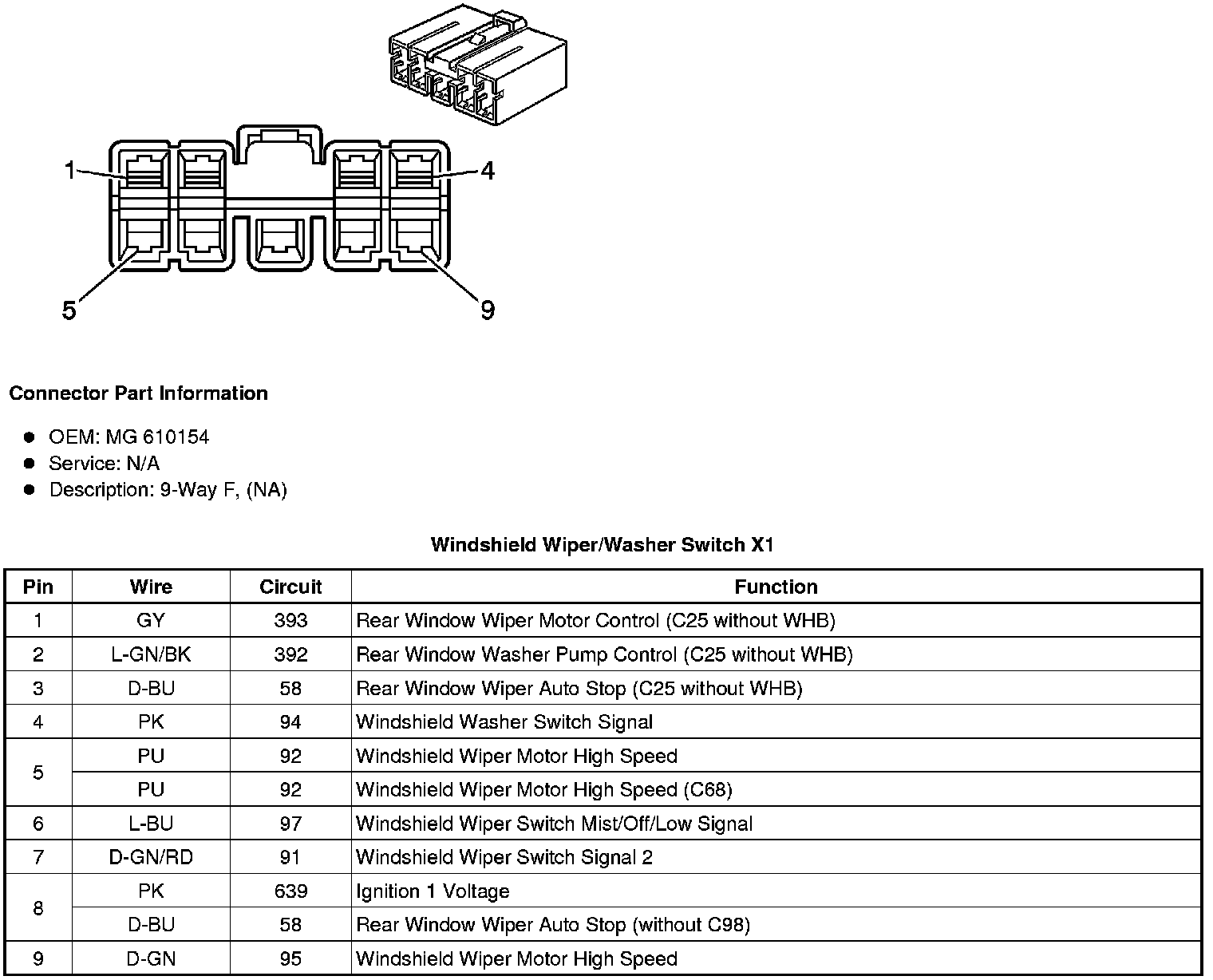

Windshield Wiper/Washer Switch X1






Windshield Wiper/Washer Switch X2 (WHB with C25)






Windshield Wiper/Washer Switch X2 (without WHB or without C25)
