Splice Locations




Master Electrical Component List

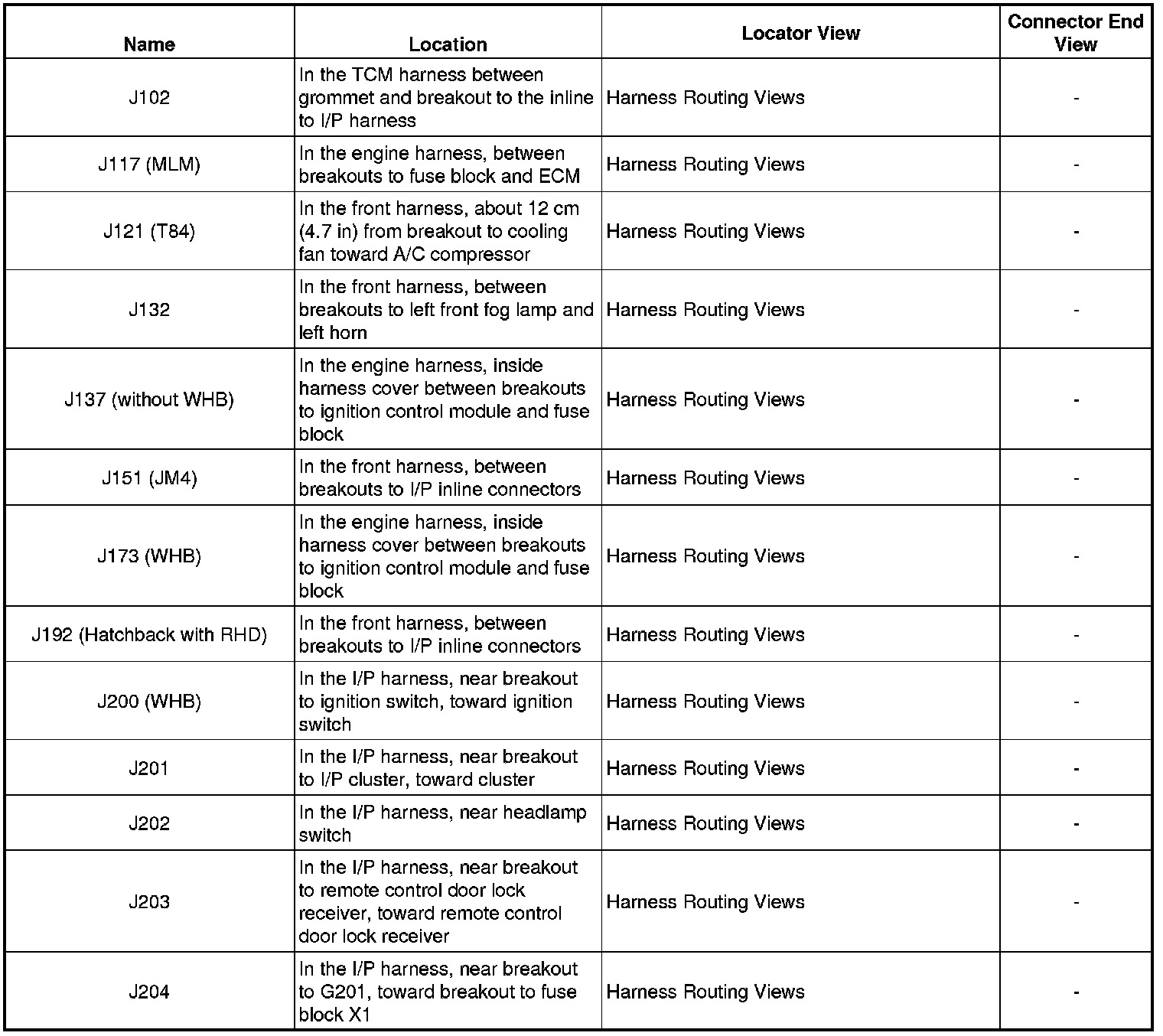

J102 - J204:

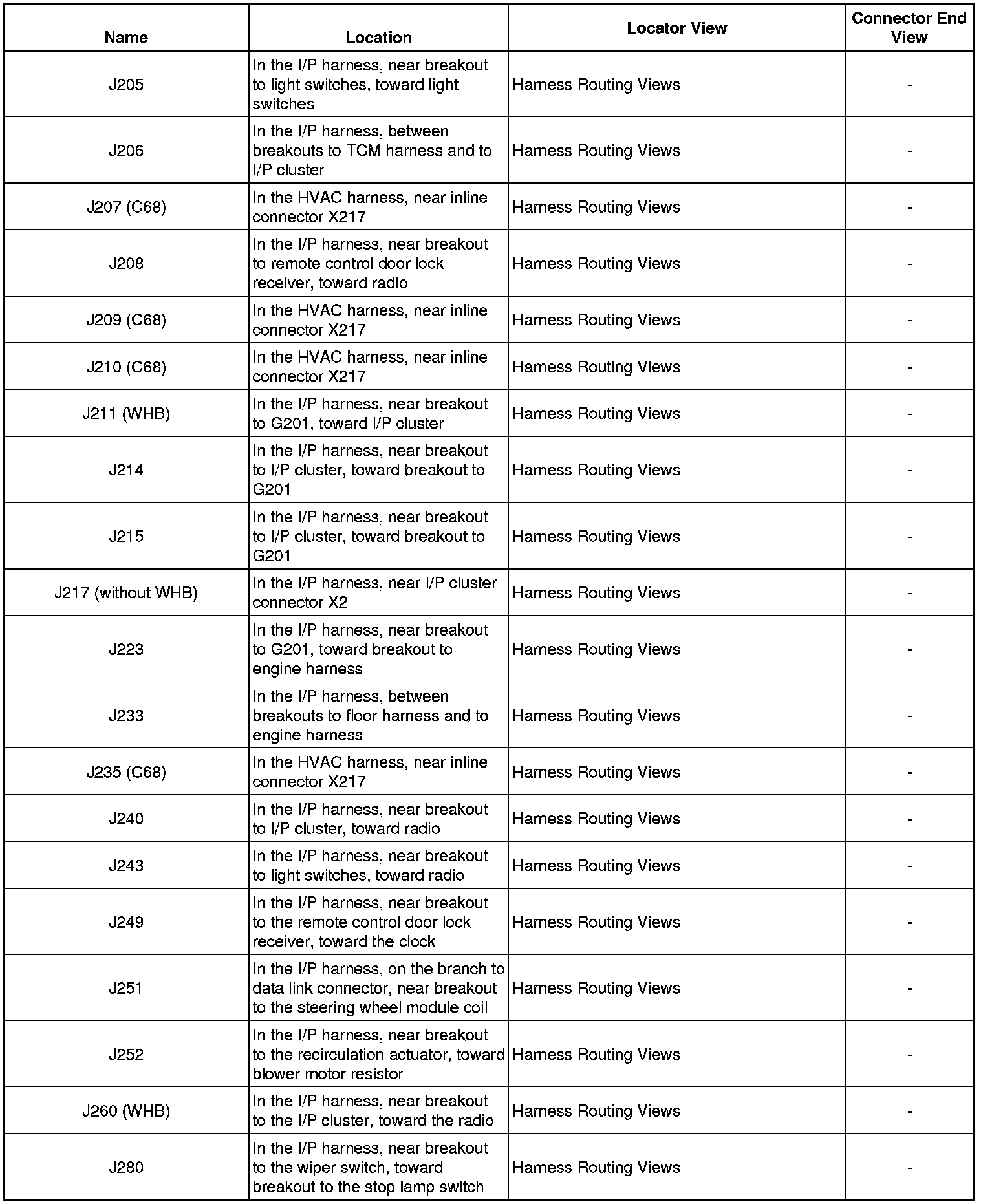

J205 - J280:

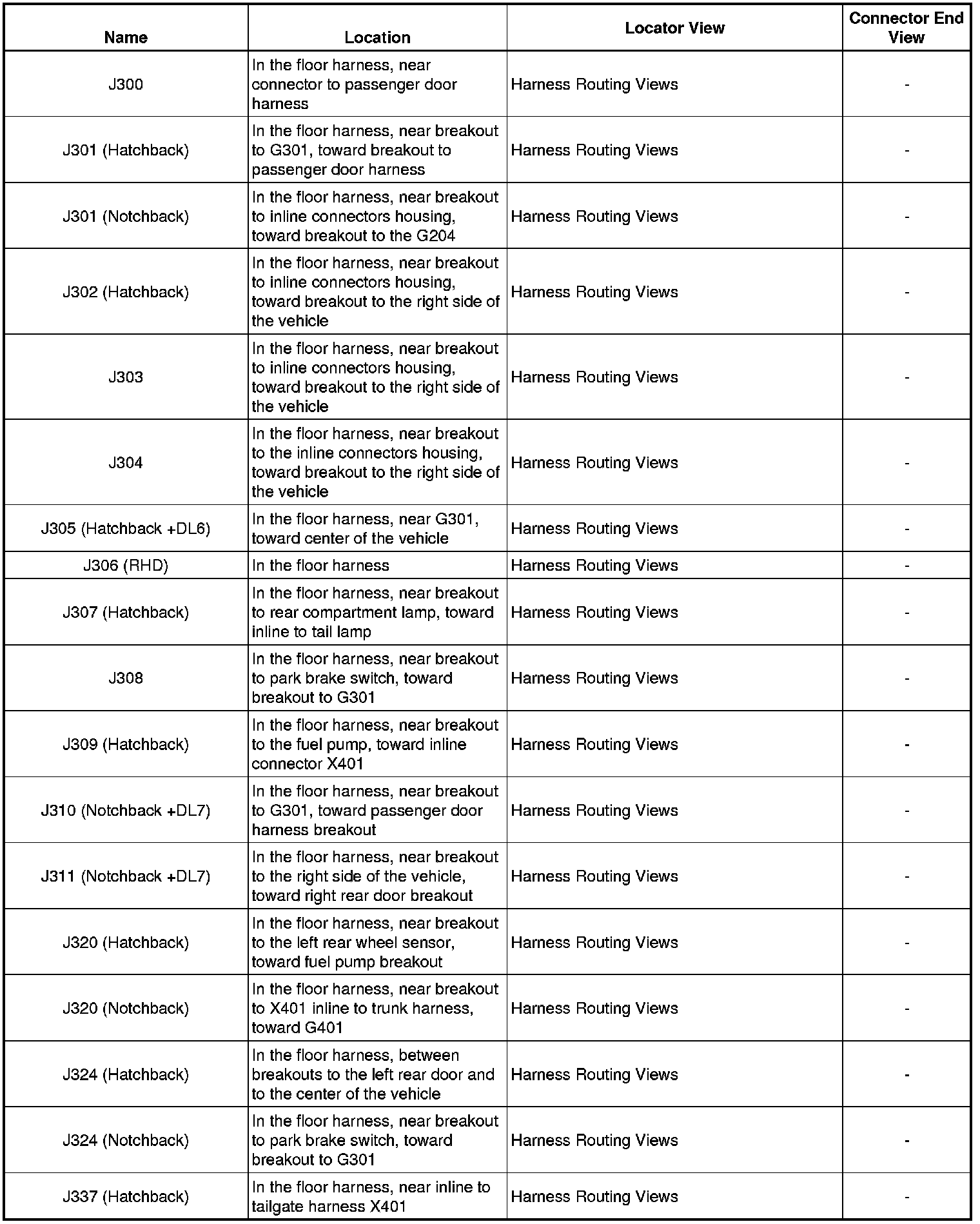

J300 - J337:

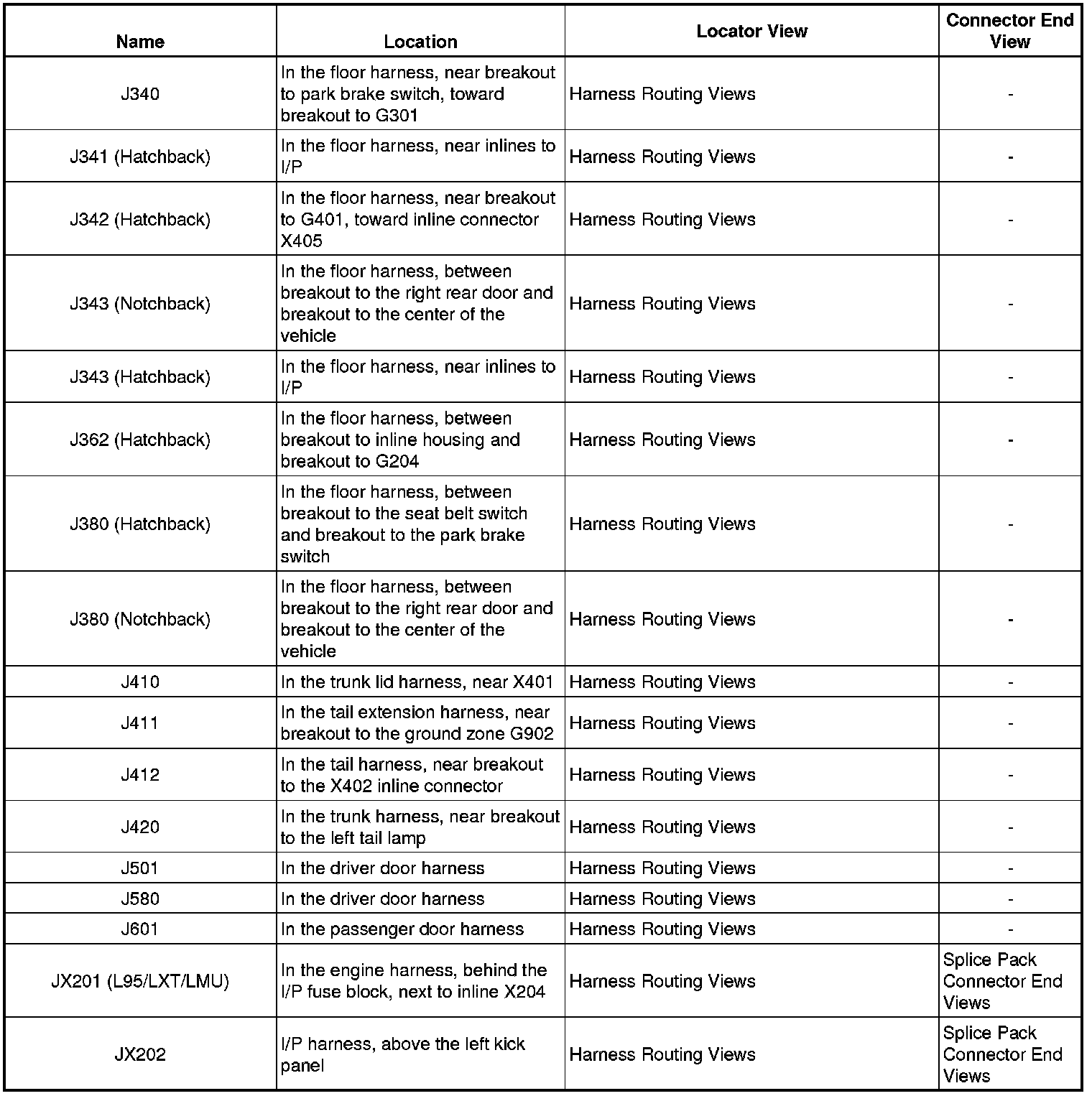

J340 - JX202:
