Fuel Tank Pressure Sensor: Diagrams




Component Connector End Views

Fuel Tank Pressure (FTP) Sensor (Hatchback with NQU)






Fuel Tank Pressure (FTP) Sensor (Notchback with NQU)

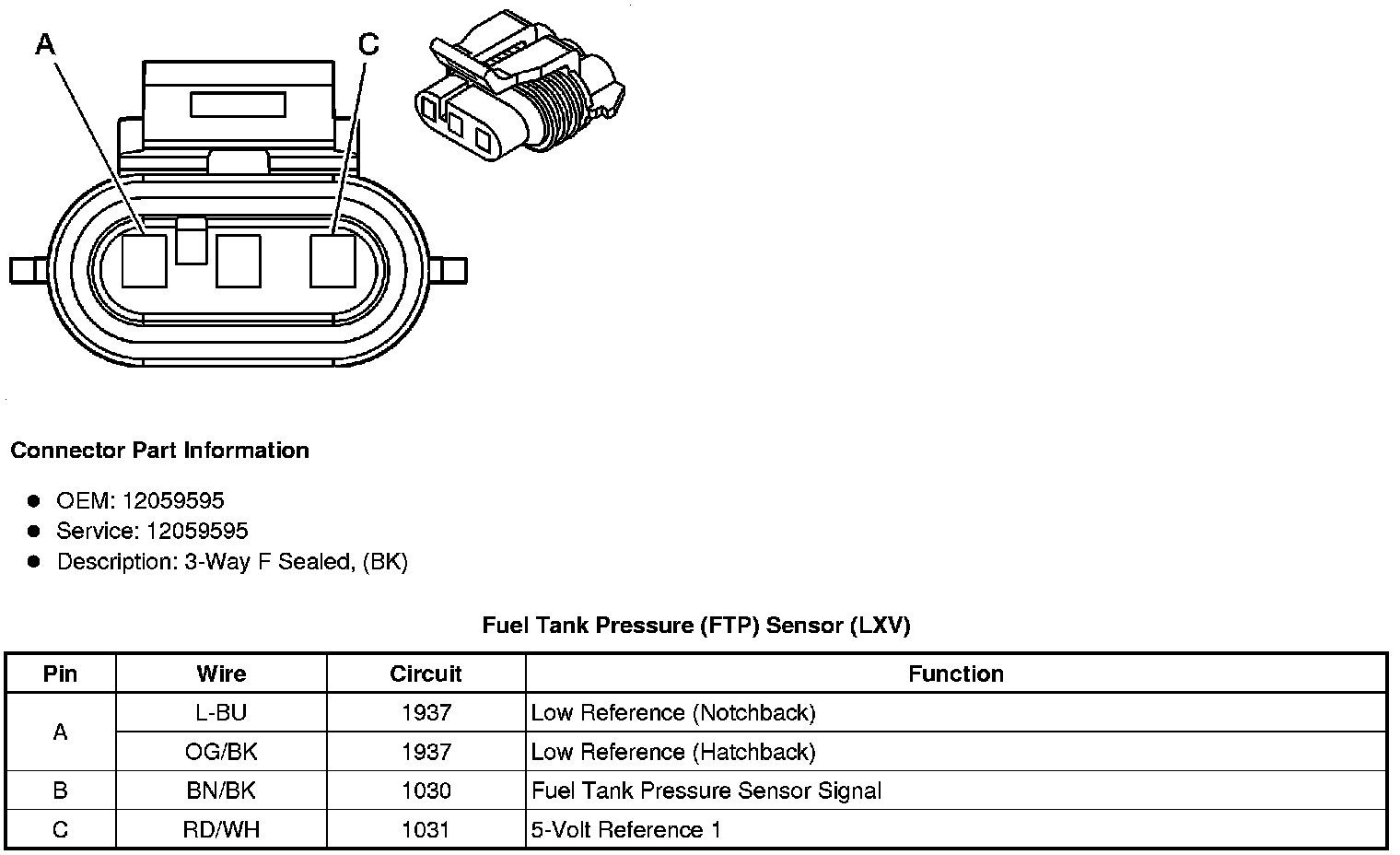

Fuel Tank Pressure (FTP) Sensor (LXV)
