Knock Sensor: Diagrams




Component Connector End Views

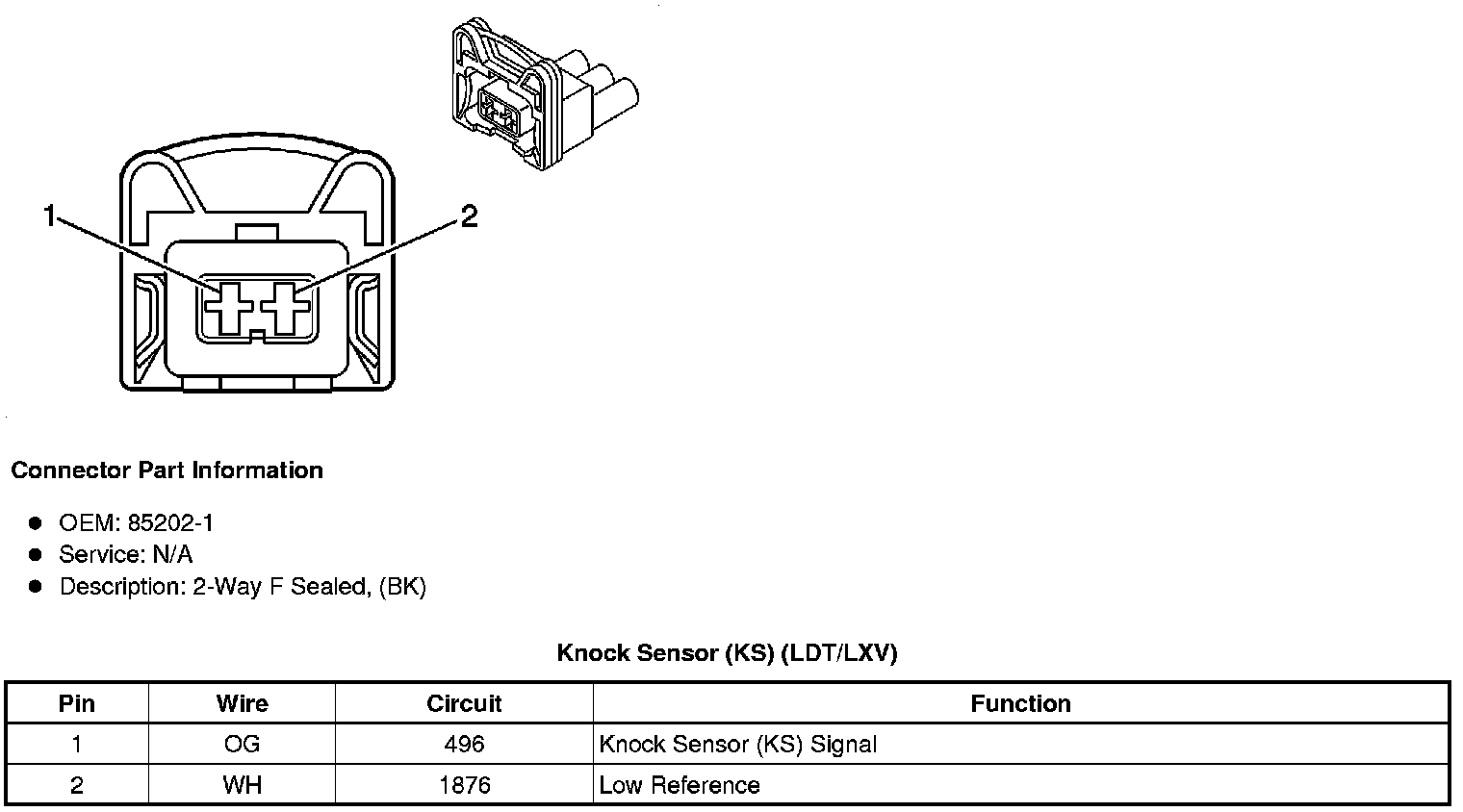

Knock Sensor (KS) (LDT/LXV)

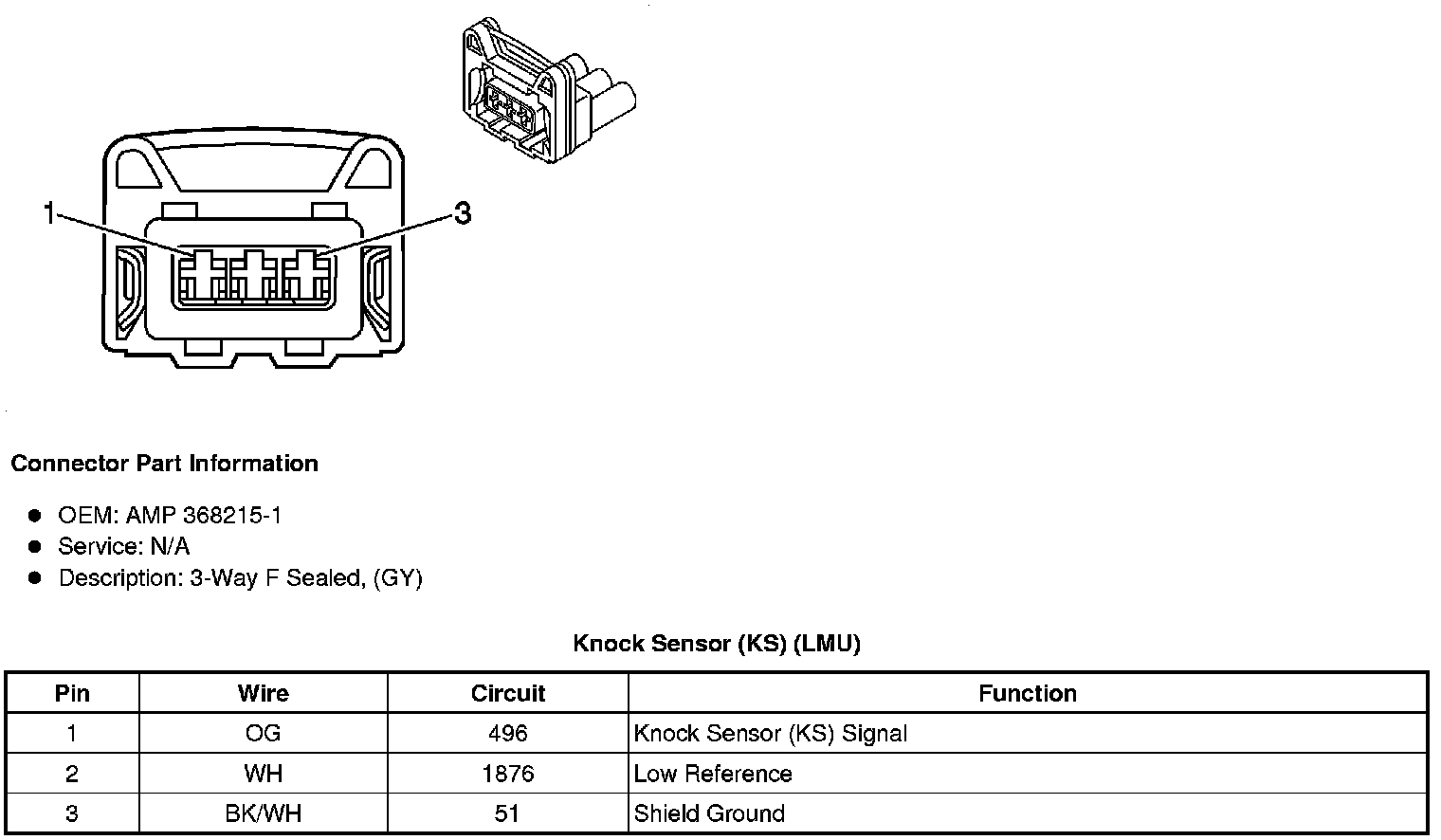

Knock Sensor (KS) (LMU)

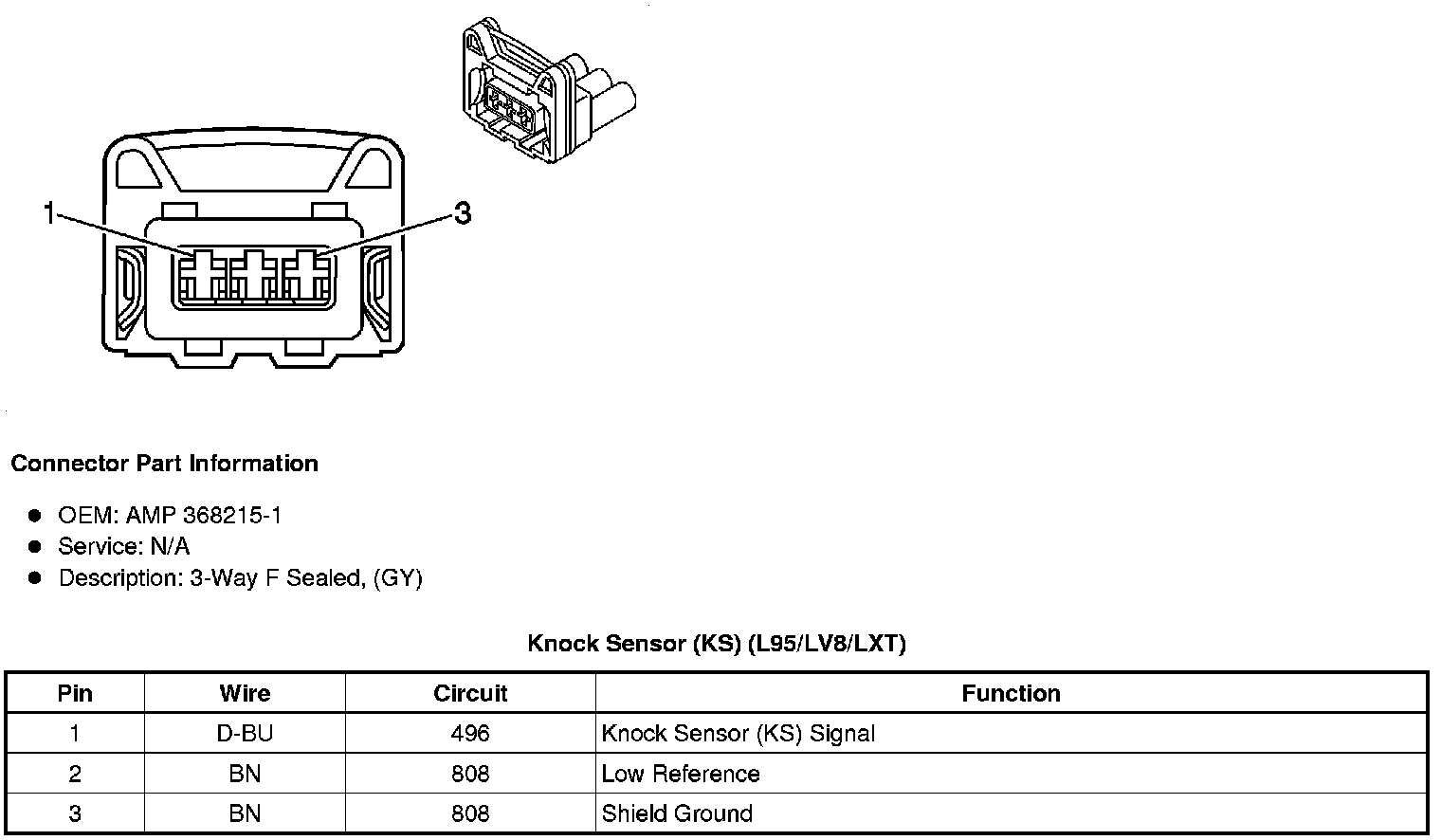

Knock Sensor (KS) (L95/LV8/LXT)
