Control Module: Locations

Harness Routing Views

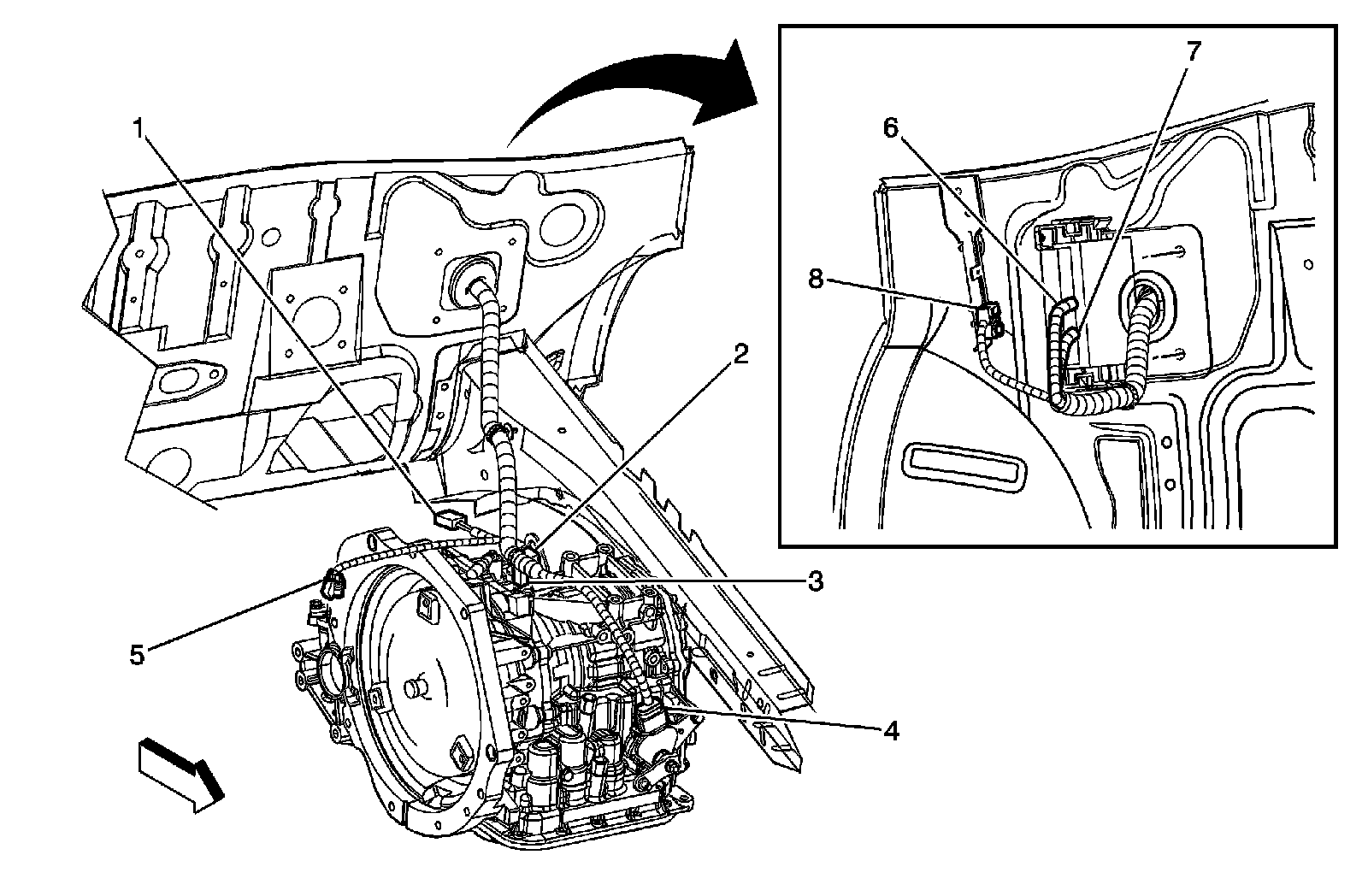

TCM Harness Routing




1 - X105
2 - Transmission Connector
3 - Input Speed Sensor (ISS)
4 - Park/Neutral Position (PNP) Switch
5 - Vehicle Speed Sensor (VSS)
6 - Transmission Control Module X1
7 - Transmission Control Module X2
8 - X206
