Harness Routing Views

Harness Routing Views

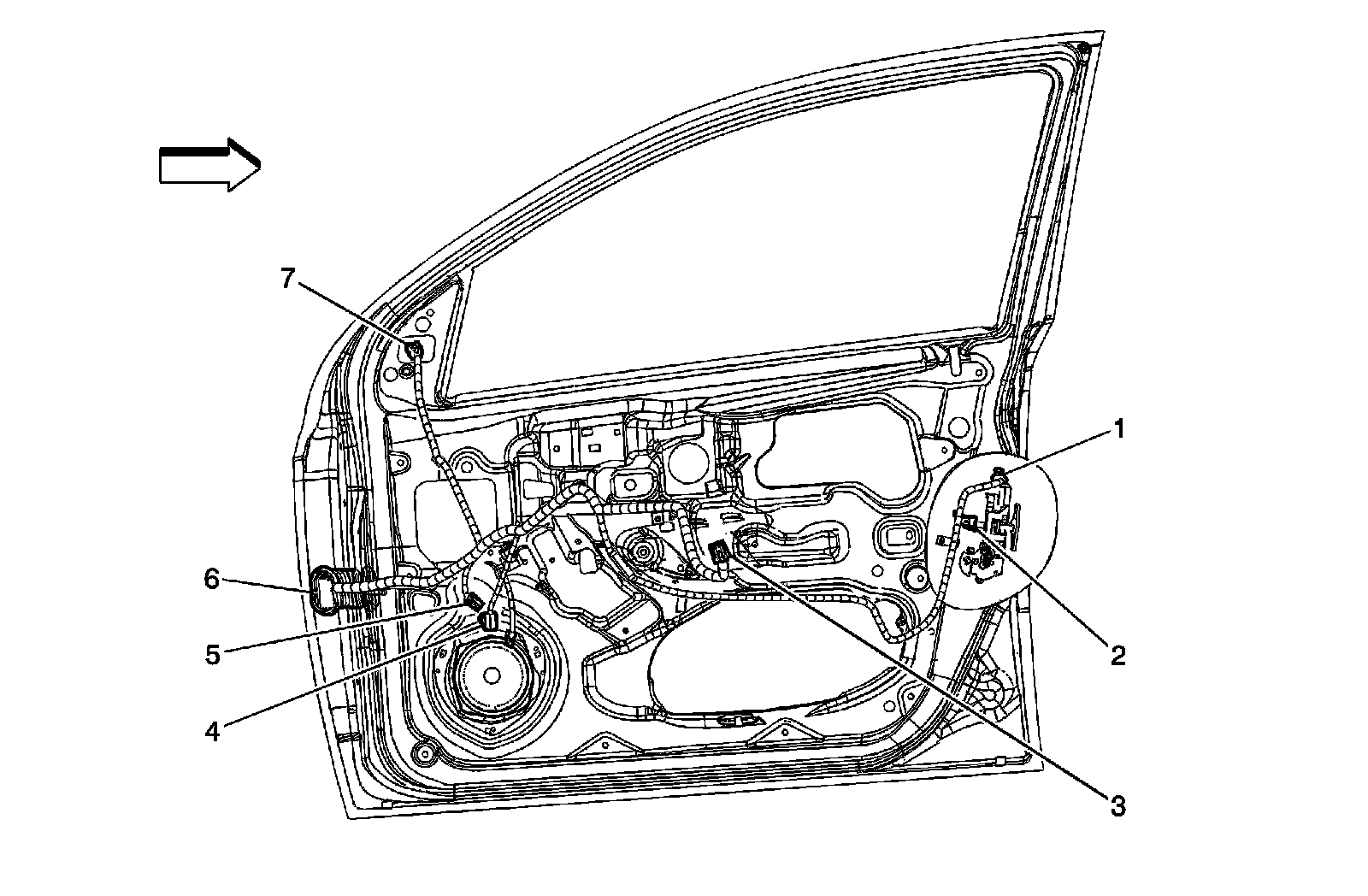

Front Door Harness Routing (Driver Shown, Passenger Similar)




1 - Door Lock Switch - Driver/Passenger
2 - Door Lock Actuator - Driver/Passenger
3 - Window Switch - Driver/Passenger
4 - Speaker - Left Front/Right Front
5 - Rear Compartment Lid Release Switch
6 - X351 (Driver)/X361 (Passenger)
7 - Outside Rear Mirror - Driver/Passenger

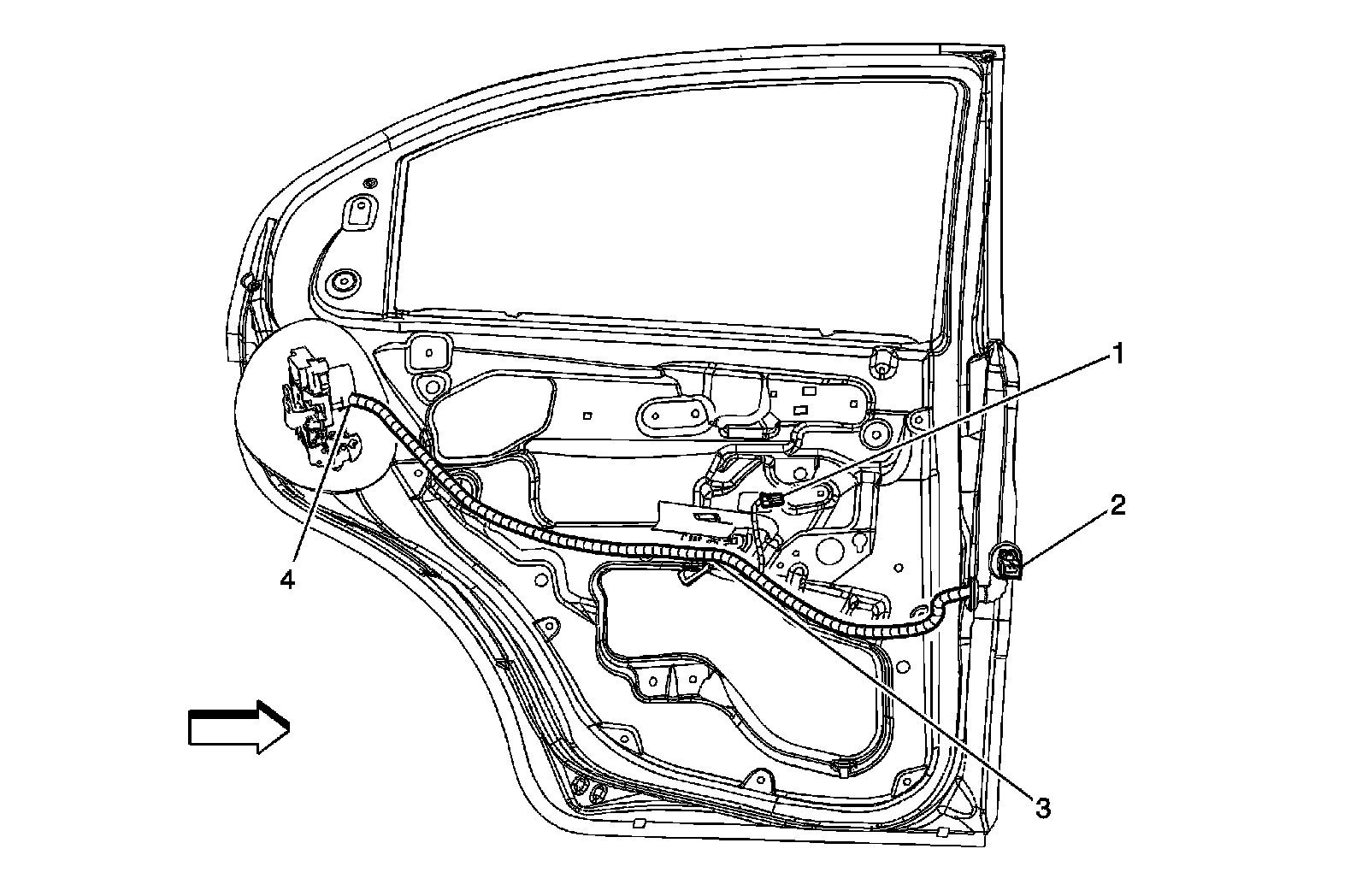

Rear Door (Left Shown, Right Similar)




1 - Window Motor - Left Rear/Right Rear
2 - X371/X381
3 - Window Switch - Left Rear/Right Rear
4 - Door Lock Actuator - Left Rear/Right Rear
