Installation Procedure

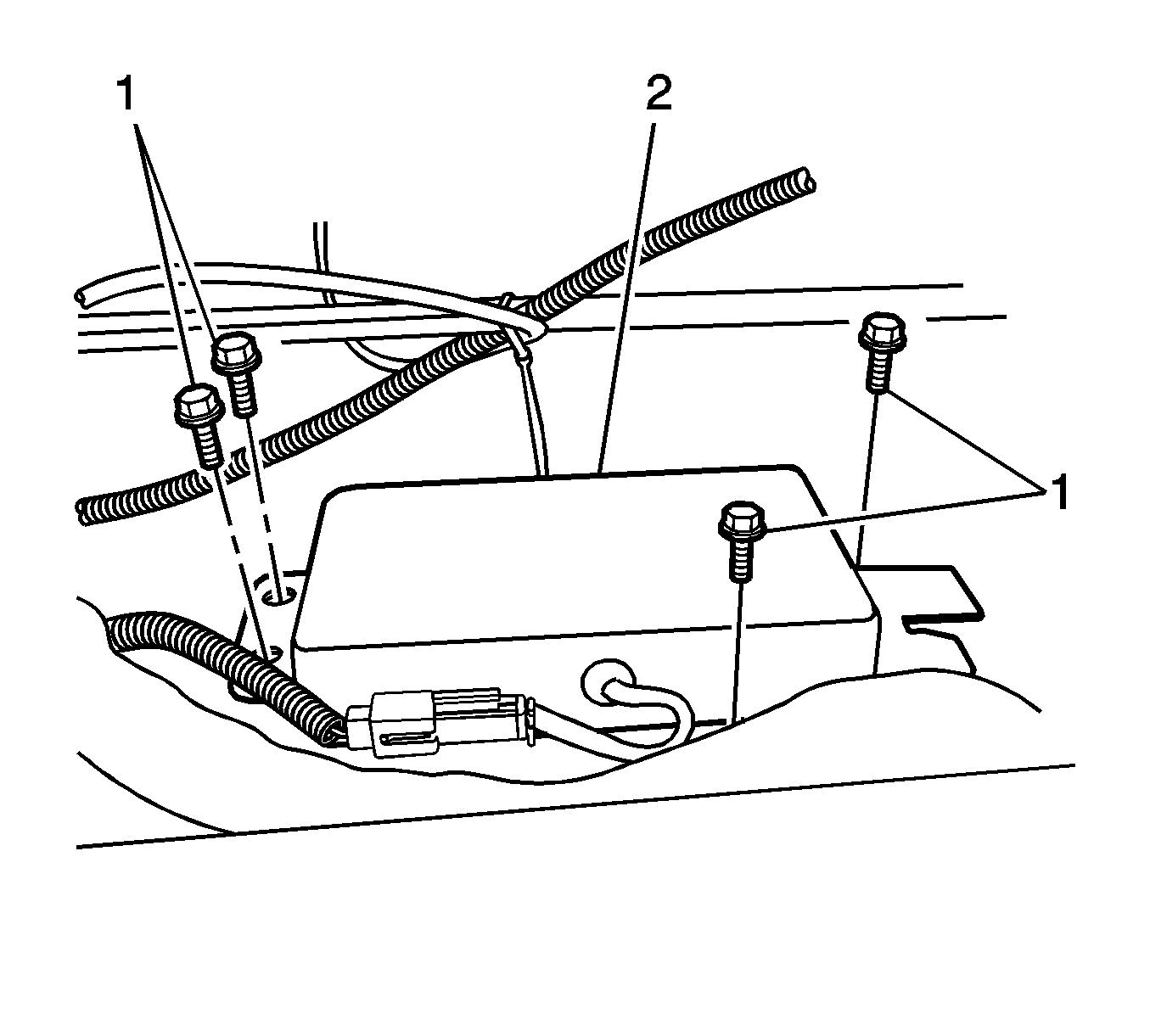

    Fig 1: Identifying Bolts And Onstar Battery
    GM2083021Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the Onstar battery (2) with the bolts (1) and tighten to 3 N.m (27 lb in).
  2. Restore the seat position.
  3. Connect the electrical connectors.
  4. Connect the negative battery cable.
