Installation Procedure

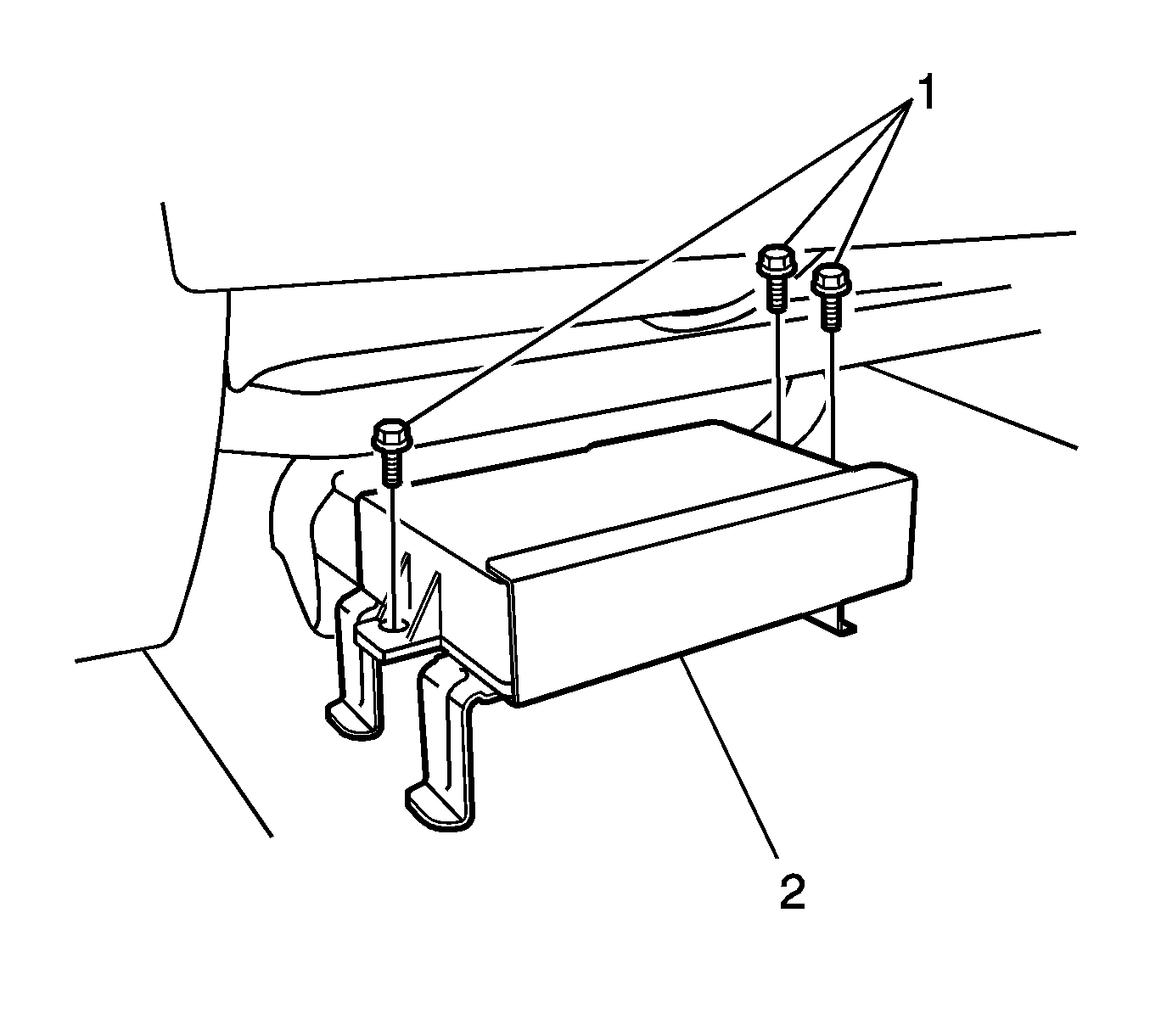

    Fig 1: Identifying Bolts And Communication Interface Module Cover
    GM2083019Courtesy of GENERAL MOTORS CORP.
  1. Position the vehicle communication interface module (2) in the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the bolts (1) and tighten to 3 N.m (27 lb in).
  3. Restore the driver seat position.
  4. Connect vehicle communication interface module electrical connectors.
    5. WARNING: Refer to Battery Disconnect Warning .
  5. Connect the battery ground cable.
