Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

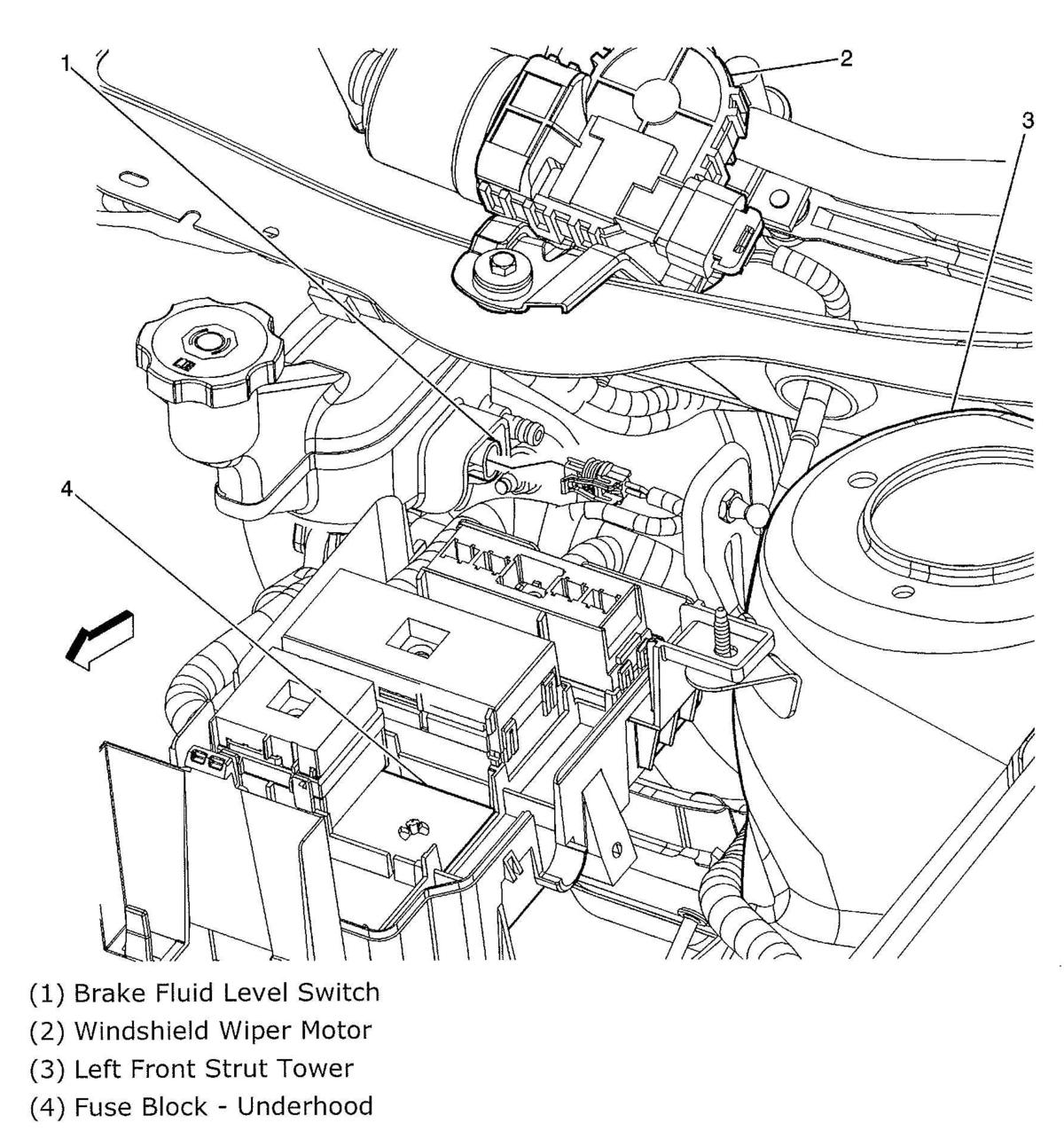

| Fuse Block - Underhood | Engine compartment, next to left strut tower. See Figure. |
| Fuse Holder - 50 AMP (2) | Rear compartment of vehicle, near battery. |
| Fusible Link | Front of engine, from starter to generator. |
