Installation Procedure

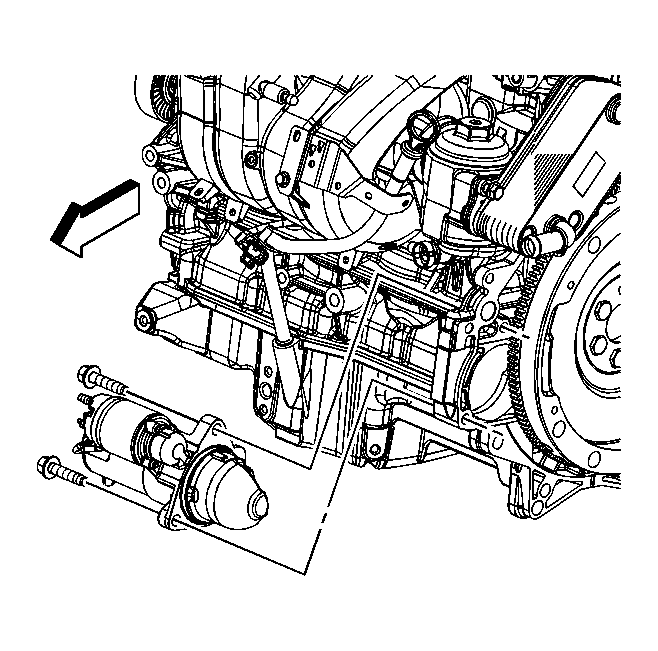

    Fig 1: Identifying Starter Bolts & Starter
    GM1648192Courtesy of GENERAL MOTORS CORP.
  1. Position the starter to the engine.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the starter bolts and tighten to 40 N.m (30 lb ft).

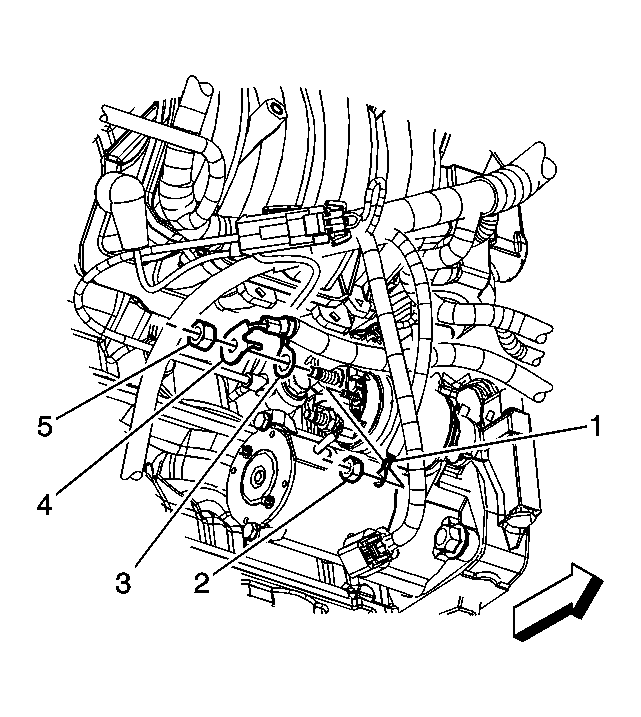

    3. Fig 2: View Of Engine Harness Terminal To Starter
    GM1656131Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine harness connector (1) to the starter.
  4. Install the starter solenoid wire terminal (3) to the starter.
  5. Install the positive battery cable terminal (4) to the starter. Ensure that the anti-rotational tab is correctly located into the indexing slot.
  6. Install the starter solenoid terminal nut (5) and tighten to 17 N.m (13 lb ft).
  7. Lower the vehicle.
  8. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
