Installation Procedure

    Fig 1: View Of Intake Manifold Tuning Valve & Bolts
    GM1839938Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the intake manifold tuning valve O-ring seal with clean engine oil.
  2. Install the intake manifold tuning valve.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the intake manifold tuning valve bolts and tighten to 10 N.m (89 lb in.
  4. Position the power steering pump reservoir bracket and install the bolts and tighten to 9 N.m (80 lb in).

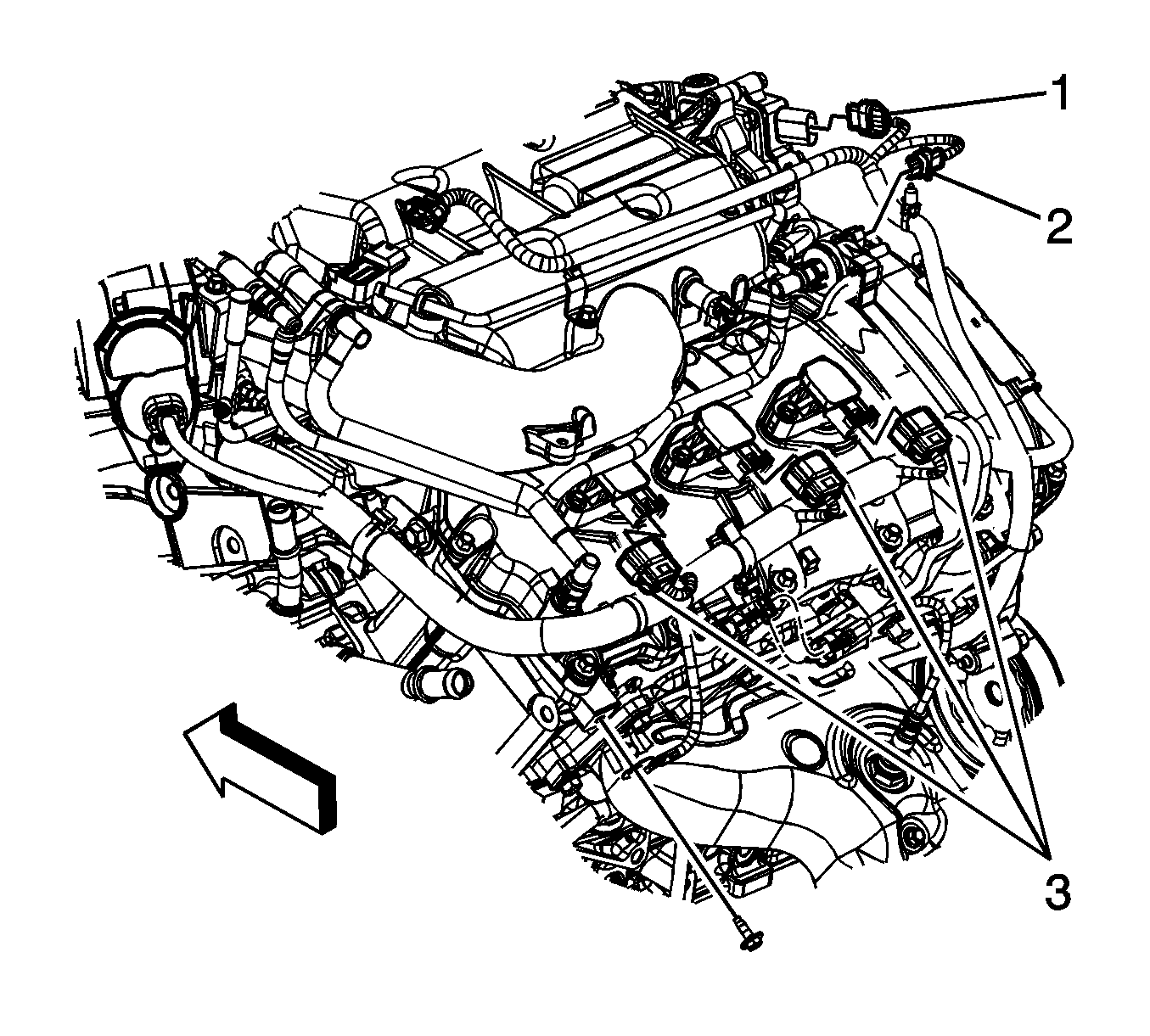

    5. Fig 2: Identifying EVAP Canister Purge Solenoid, Ignition Coils & Intake Manifold Tuning Valve
    GM1839426Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector (1) to the intake manifold tuning valve.
  6. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
