Windshield Washer Switch: Service and Repair

Windshield Wiper and Washer Switch Replacement

Removal Procedure

1. Remove the steering column trim covers. Refer to Steering Column Trim Cover Replacement (Steering Column Trim Cover Replacement).

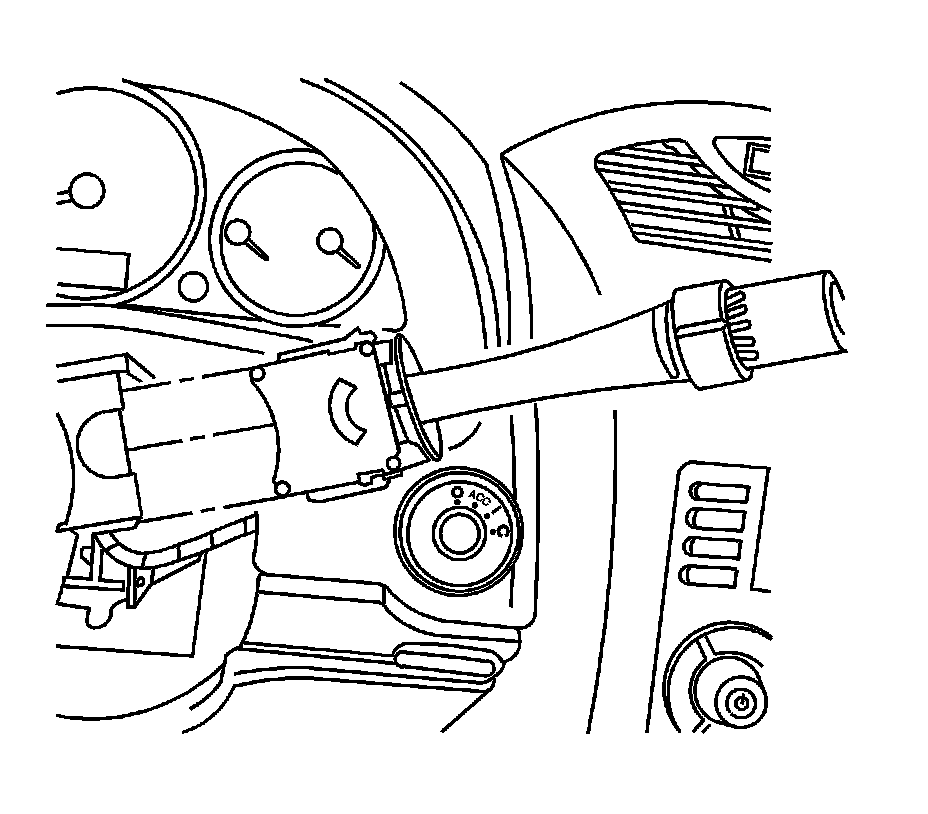

2. Release the windshield wiper switch from the stalk switch mount.
3. Disconnect the electrical connector from the windshield wiper switch.
4. Remove the windshield wiper switch.

Installation Procedure




1. Install the windshield wiper switch on to the stalk switch mount.
2. Connect the electrical connectors.
3. Install the steering column trim covers. Refer to Steering Column Trim Cover Replacement (Steering Column Trim Cover Replacement).
