Installation Procedure

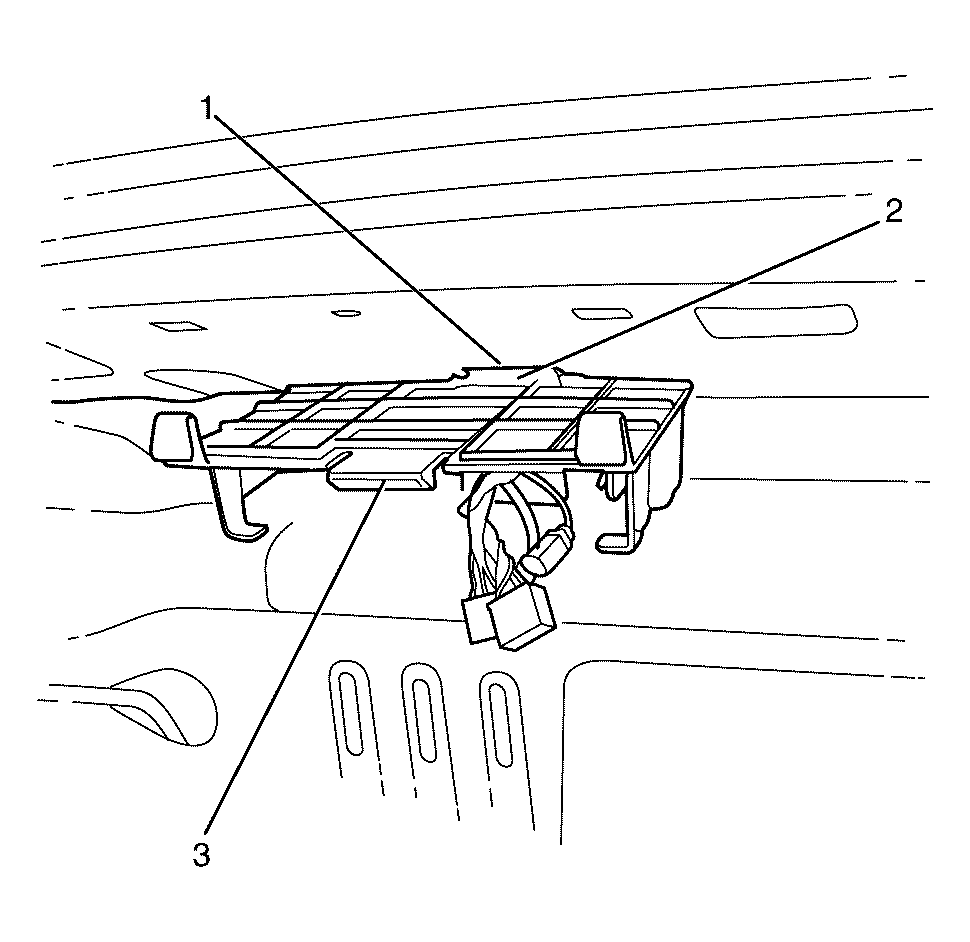

    Fig 1: Identifying VCIM Bracket & Retainer
    GM2094152Courtesy of GENERAL MOTORS CORP.
  1. Install the VCIM bracket (3) to the vehicle.
  2. Slide the VCIM bracket retainer (2) into the body slot (1).

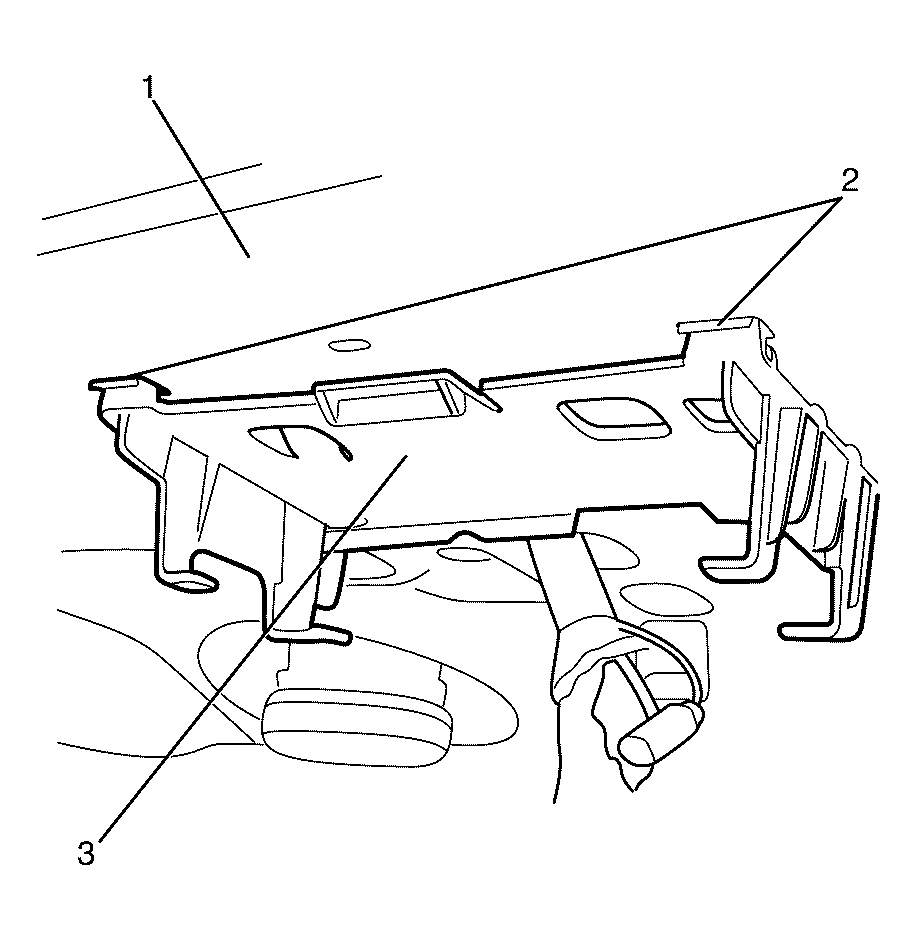

    3. Fig 2: Identifying VCIM Bracket To Body Retaining Clips
    GM2094151Courtesy of GENERAL MOTORS CORP.
    NOTE: Listen for an audible click to confirm correct installation of the VCIM bracket to body retaining clips (2).
  3. Apply suitable upward pressure to the VCIM bracket (3) to engage the VCIM bracket to body retaining clips (2) to the body (1).
  4. Install the VCIM. Refer to Communication Interface Module Replacement .
