Installation Procedure

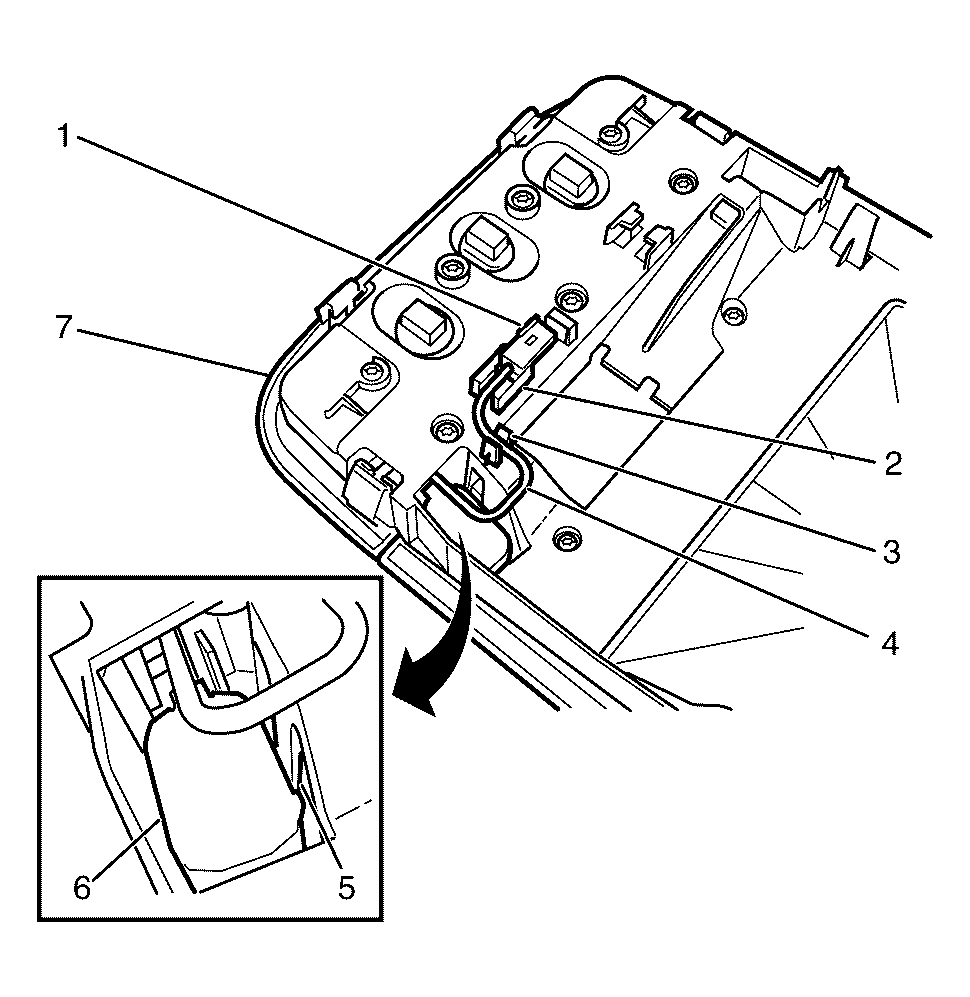

    Fig 1: Identifying Microphone Retainer
    GM2126757Courtesy of GENERAL MOTORS CORP.
    NOTE: Listen for an audible click to confirm correct installation of the microphone (6) to the dome lamp assembly (7).
  1. Install the microphone (6) to the dome lamp assembly (7).
  2. Attach the microphone harness (4) to the retainer (3).
  3. Attach the microphone connecter (1) to the retainer (2).
  4. Install the front dome lamp assembly. Refer to Dome Lamp Replacement (Front w/Sunroof) or Dome Lamp Replacement (Front w/o Sunroof) .
  5. Connect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
