Installation Procedure

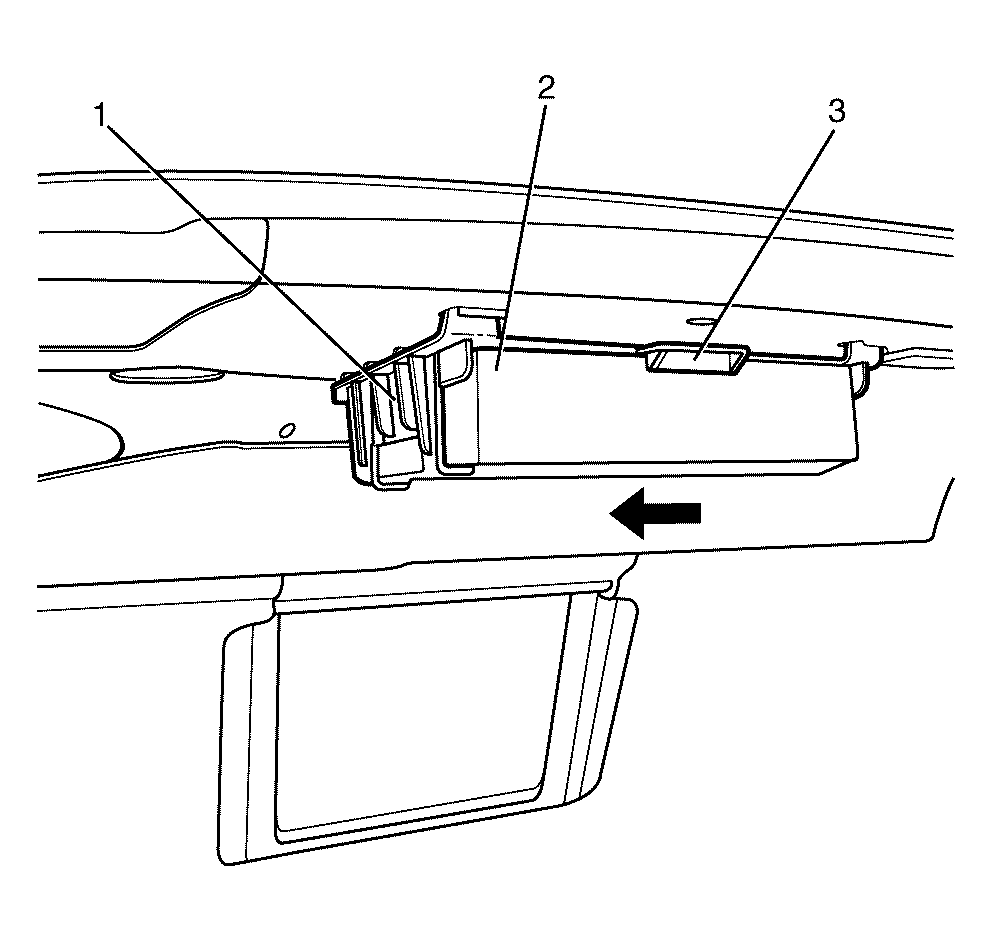

    Fig 1: Identifying VCIM, Supporting Bracket & Retaining Clip
    GM2049430Courtesy of GENERAL MOTORS CORP.
  1. Slide the VCIM (2) into the supporting bracket (1) and ensure that the retaining clip (3) locks the VCIM into place. Listen for an audible click to confirm correct fitting.

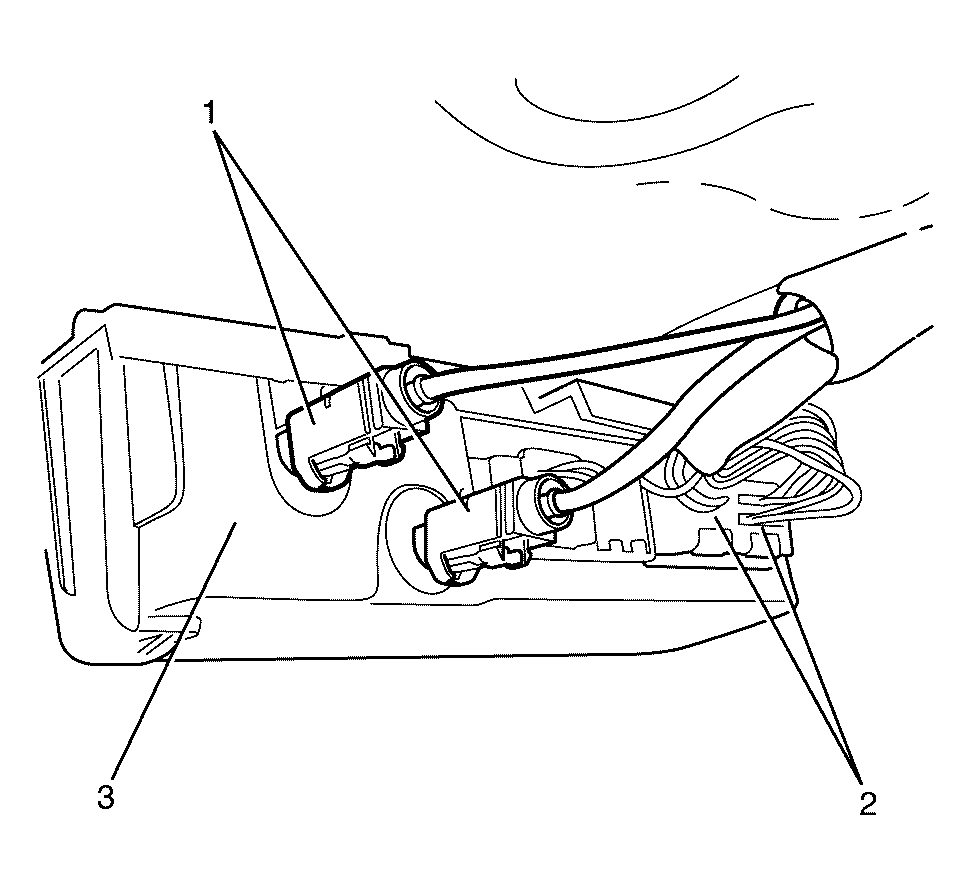

    2. Fig 2: Identifying Antenna Connectors, Wiring Harness Connectors & VCIM
    GM2040505Courtesy of GENERAL MOTORS CORP.
  2. Connect the antenna connectors (1) and the wiring harness connectors (2) to the VCIM (3).

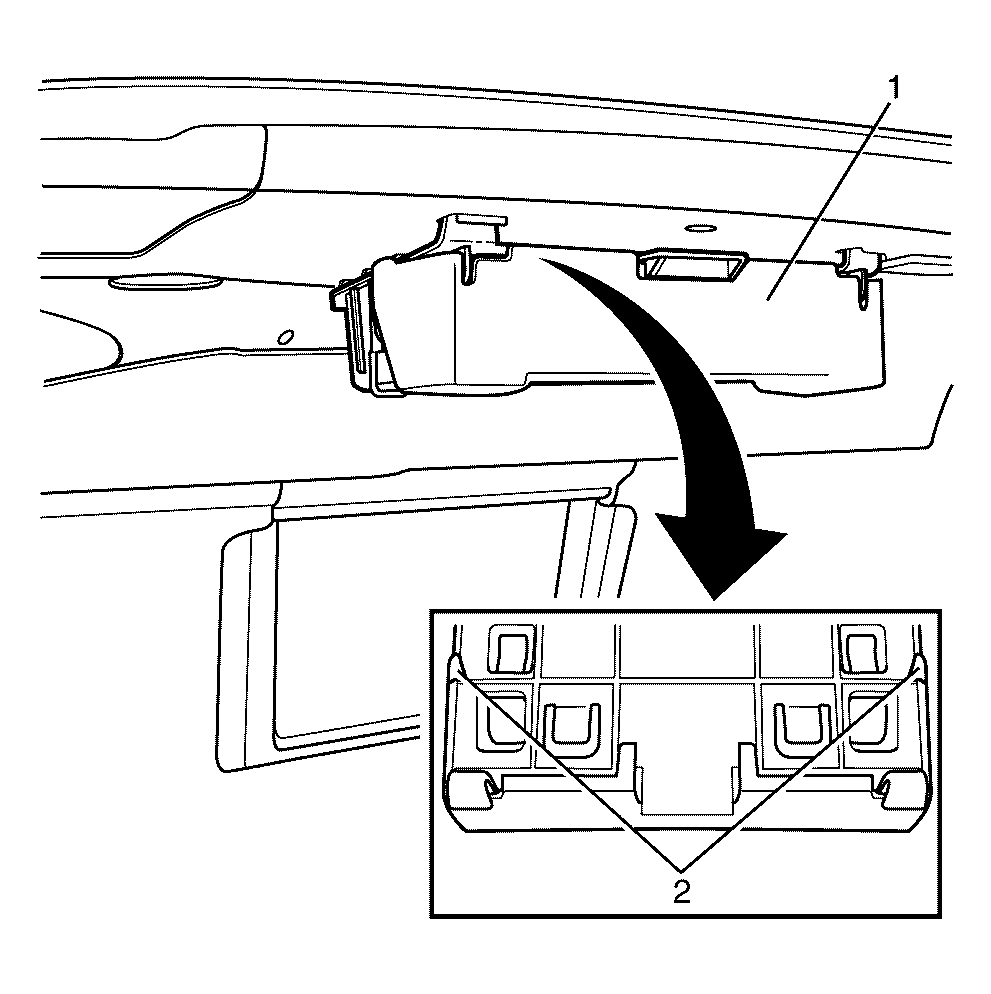

    3. Fig 3: Identifying VCIM Fascia Cover & Retaining Clips
    GM2040497Courtesy of GENERAL MOTORS CORP.
  3. Install the cover (1) and make sure that the retaining clips (2) locks into place. Listen for an audible click to confirm fitting.
    4. IMPORTANT: After replacing the vehicle communication interface module, you must configure the OnStar® system.
  4. Program the VCIM after replacement. Refer to Control Module References in Control Module References.
