Removal Procedure

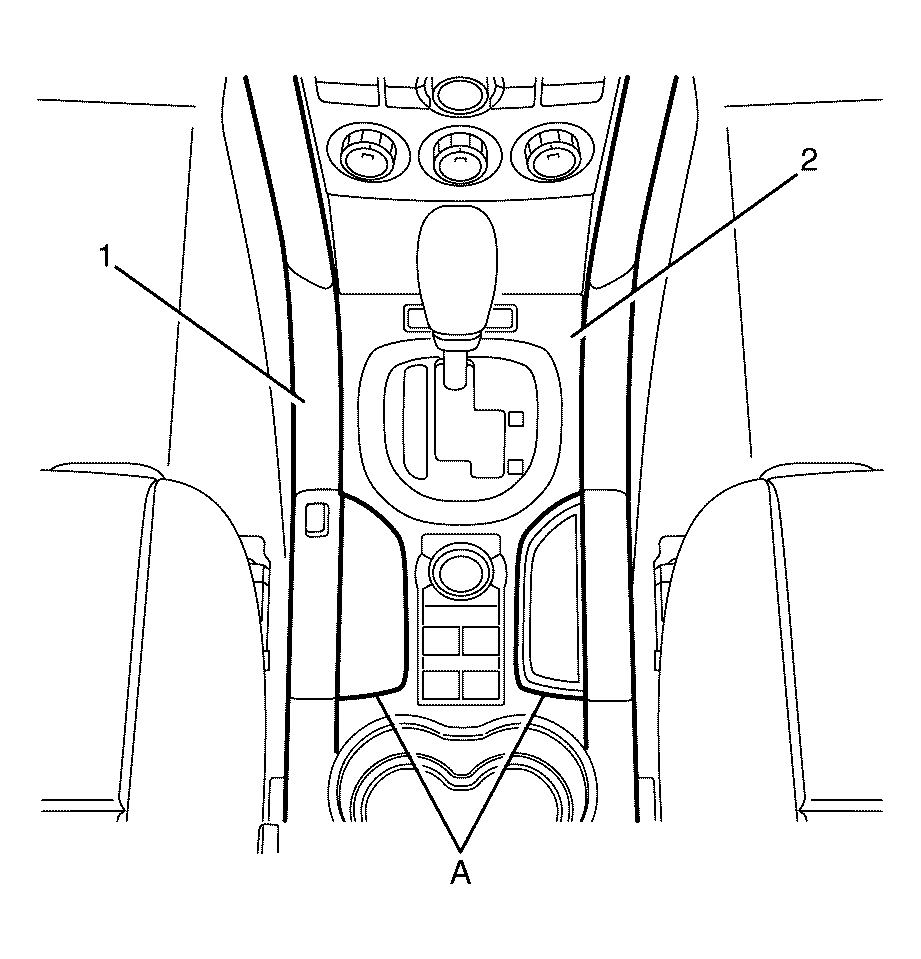

    Fig 1: View Of Console Trim Plate & Floor Console
    GM2042405Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: The console trim plate (1) is retained by clips.
  1. Grasp the console trim plate (1) at point (A) and pull upwards to disengage the retaining clips from the floor console (2).

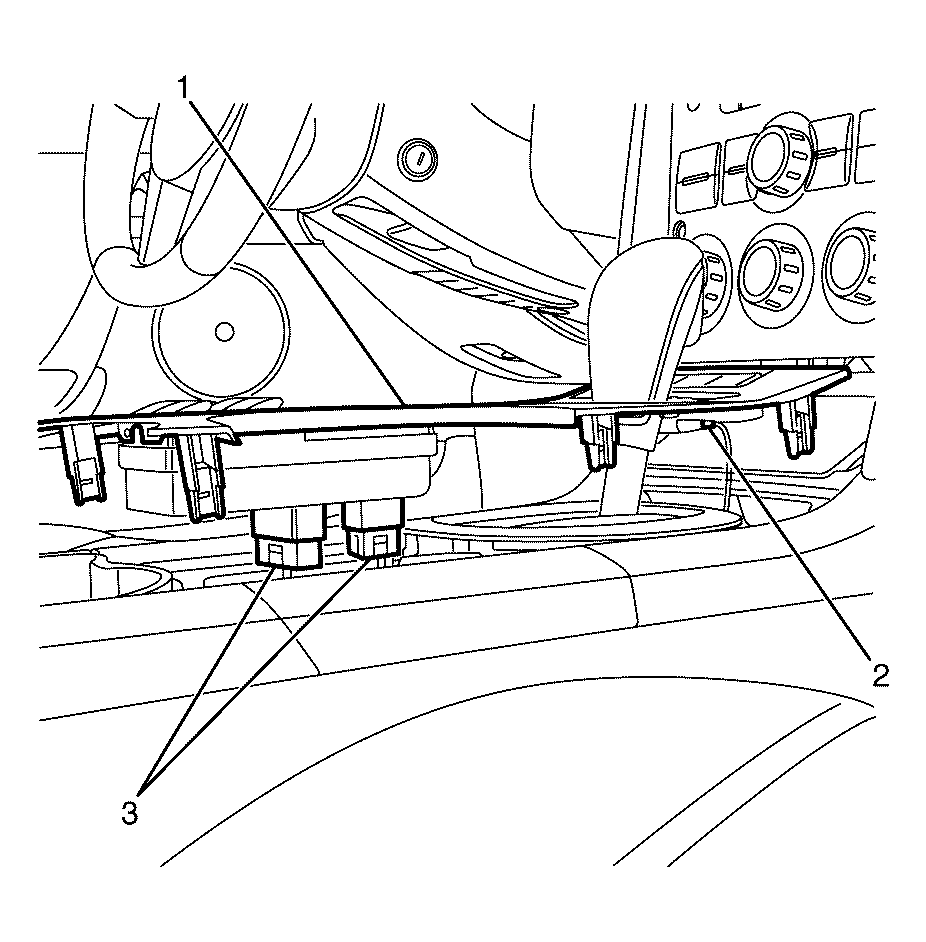

    2. Fig 2: Identifying Console Trim Plate
    GM2039754Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the window and exterior mirror switch electrical connector (3).
  3. Disconnect the ESP and heated seat switches assembly electrical connector (2).
  4. Remove the console trim plate (1).
    5. Fig 3: Identifying Power Window/Mirror Switch
    GM1939968Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Remove the power window/mirror switch (2) by releasing from the retaining clips (3) on the console trim plate (1).
  5. Remove the power window/mirror switch (2) from the console trim plate (1).
