Instrument Panel Inflatable Restraint Module Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

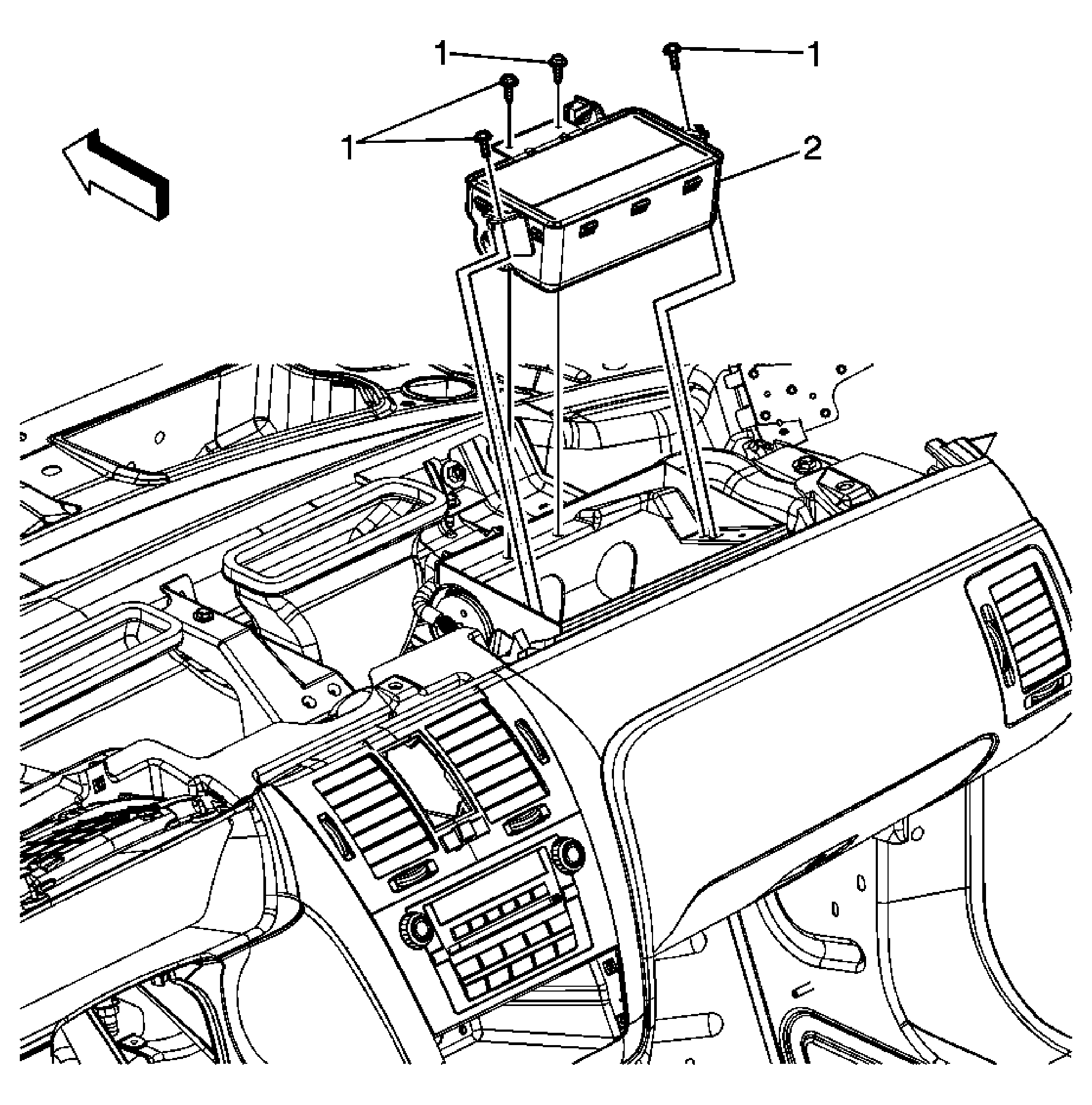

Fig 1: Inflatable Restraint Instrument Panel Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .
1	Inflatable Restraint I/P Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Inflatable Restraint I/P Module Assembly

Callout

Component Name

WARNING: Refer to SIR Warning .

WARNING: Refer to SIR Inflator Module Handling and Storage Warning .

Preliminary Procedure

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the instrument panel (I/P) upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement .

Inflatable Restraint I/P Module Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Inflatable Restraint I/P Module Assembly
