Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new inflatable restraint side impact module to the seat frame.

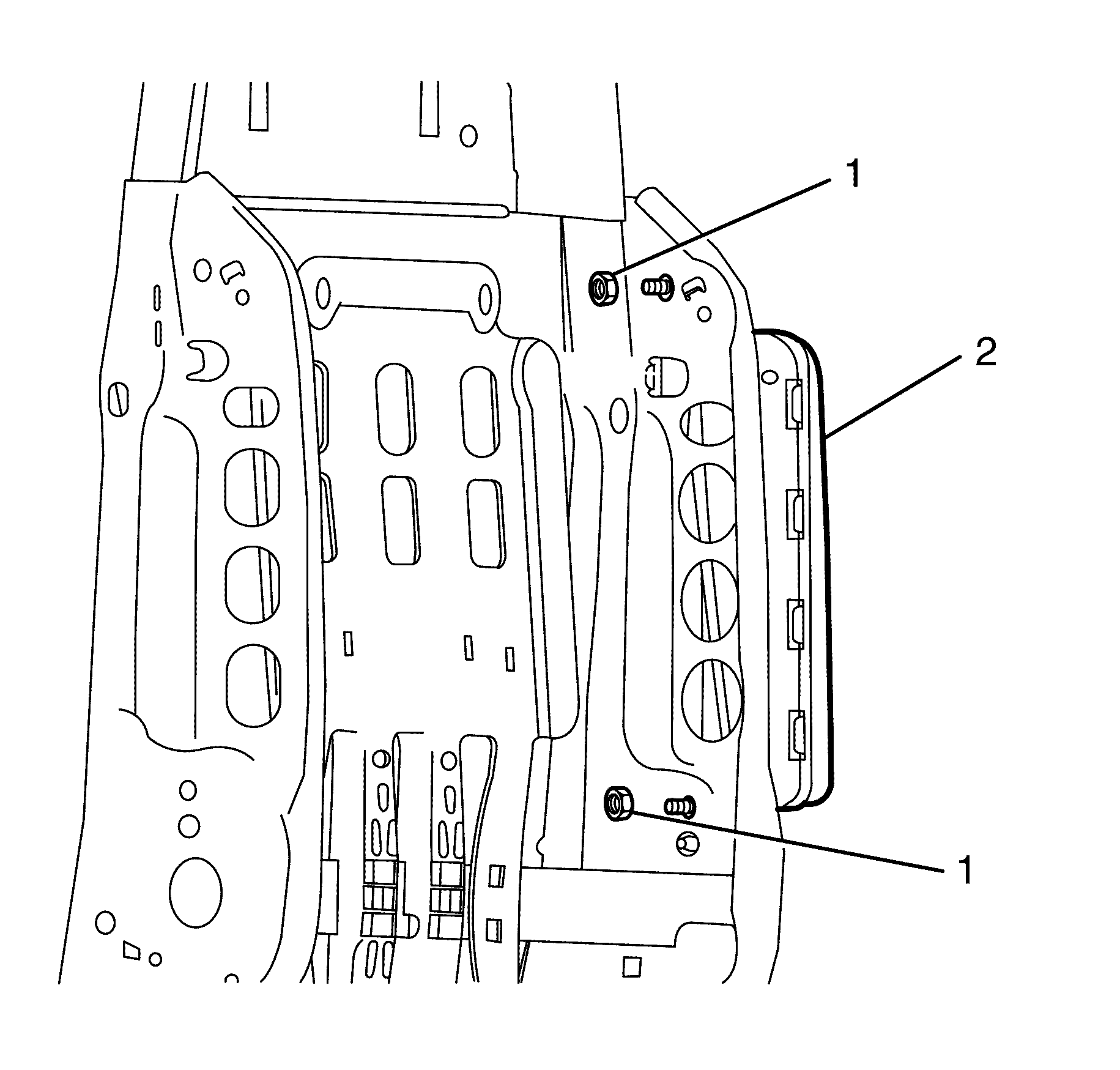

    2. Fig 1: Identifying Inflatable Restraint Side Impact Module Retaining Nuts
    GM1959101Courtesy of GENERAL MOTORS CORP.
  2. Install the module (2) to the seat frame and install the 2 retaining nuts (1).

    Tighten:  Tighten the nuts to 6 N.m (53 lb in).

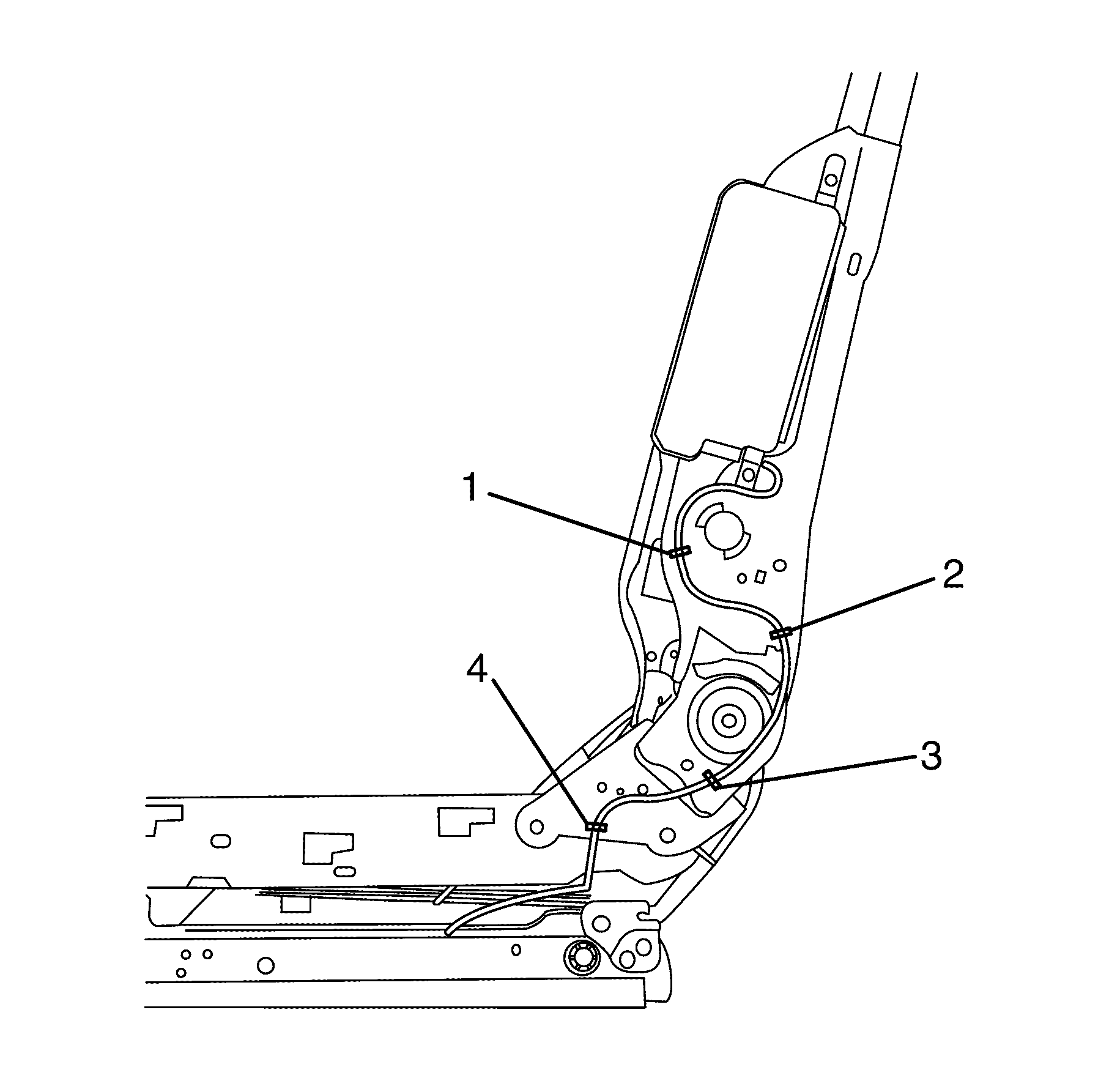

    3. Fig 2: Locating Module Wiring Harnesses
    GM1959099Courtesy of GENERAL MOTORS CORP.
  3. Install the module wiring harness (1), (2), (3) and (4) to the seat.

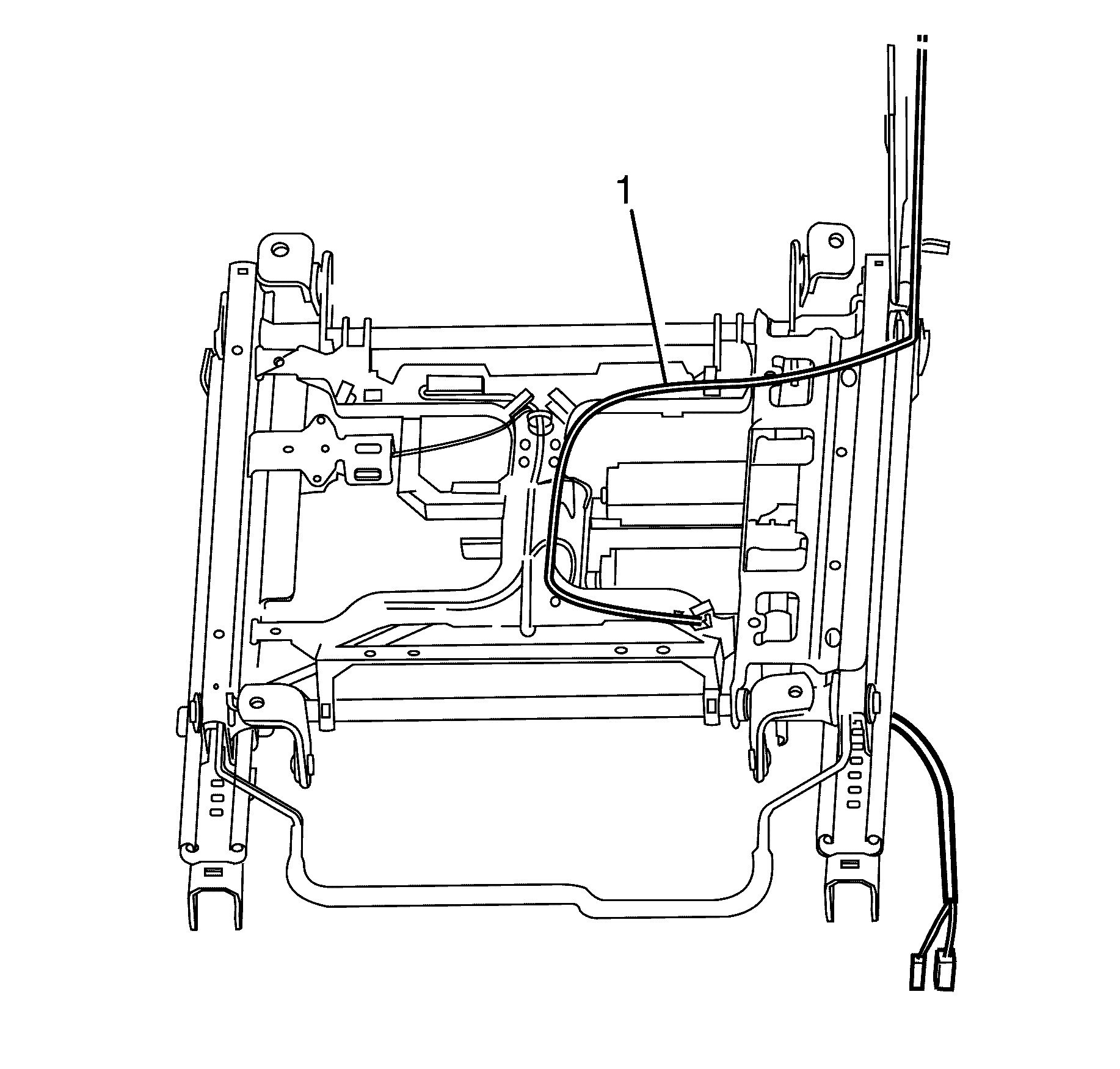

    4. Fig 3: Identifying Module Wiring Harness
    GM1995408Courtesy of GENERAL MOTORS CORP.
  4. Install the module wiring harness (1) through the underside of the seat frame.
  5. Install the front seat back trim cover, refer to Front Seat Back Cushion Cover and Cushion Pad Replacement .
  6. Install the front seat. Refer to Front Seat Replacement - Bucket .
  7. Enable the SIR system. Refer to SIR Disabling and Enabling .
