Remote Control Door Lock Receiver Antenna Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the right rear compartment side trim panel. Refer to Rear Compartment Side Trim Replacement - Right Side
.
- Remove the left rear quarter trim panel. Refer to Sail Panel Replacement
.
|

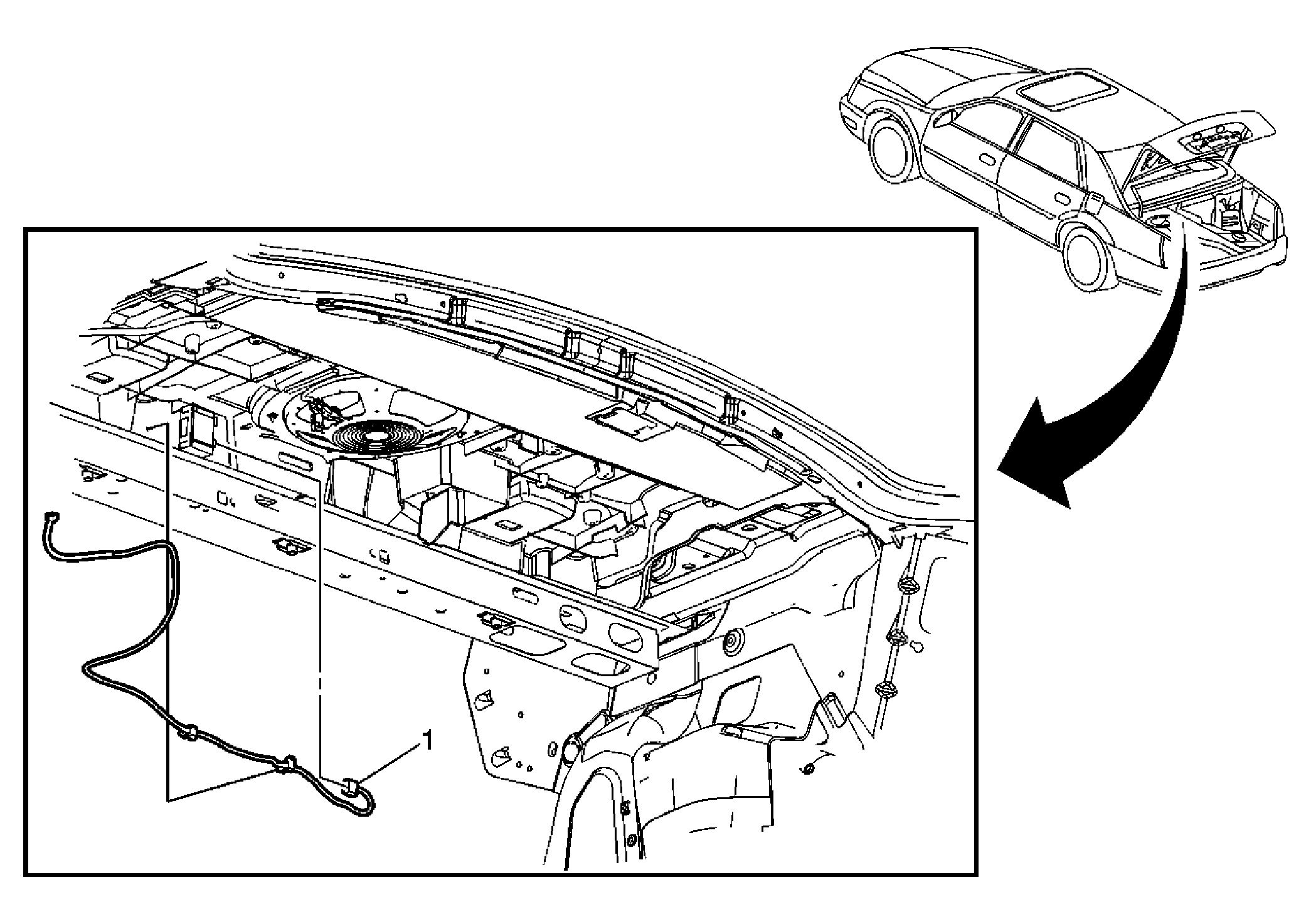

| 1 |
Remote Control Door Lock Antenna Procedure
- Disconnect the antenna from the remote control door lock receiver.
- Note the routing of the antenna along pillar with integral clips.
|
