Front Side Door Window Rear Channel Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

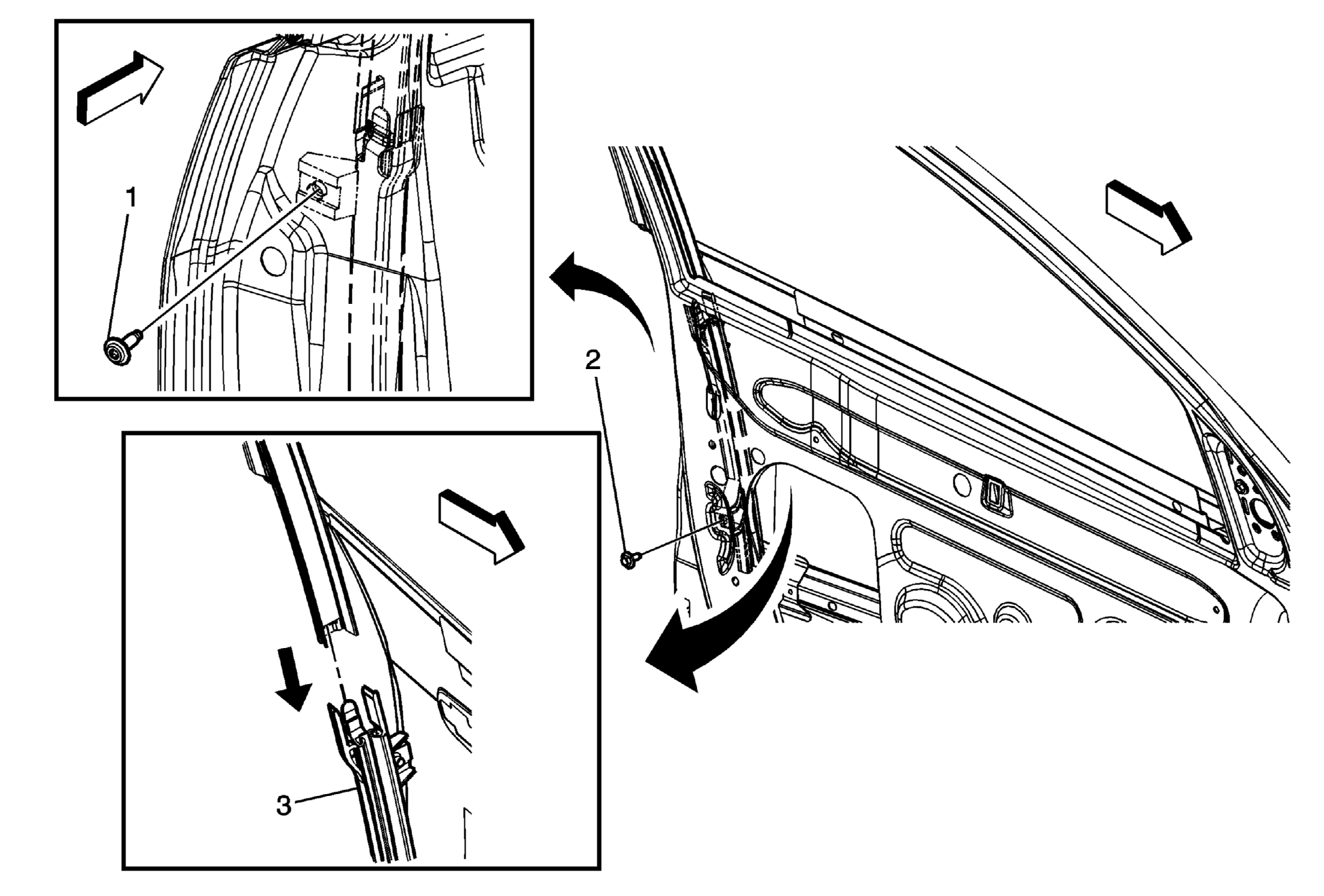

Fig 1: Identifying Front Side Door Window Rear Channel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Enclave) or Front Side Door Trim Panel Replacement - Left Side (Acadia) or Front Side Door Trim Panel Replacement - Left Side (Traverse) or Front Side Door Trim Panel Replacement - Left Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (OUTLOOK) or Front Side Door Trim Panel Replacement - Right Side (Traverse) or Front Side Door Trim Panel Replacement - Right Side (Acadia) or Front Side Door Trim Panel Replacement - Right Side (Enclave) . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Side Door Window Rear Channel Upper Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Front Side Door Window Rear Channel Lower Bolt
3	Front Side Door Window Rear Channel Tip: Install the front side door window rear channel, ensure that the upper and lower clip together.
